Core 40270 Quick Start Manual

9 Person Dome Tent with Vestibule
16ft x 9ft x 72in
We Recommend...
2 People Rubber Mallet
Setup Tips
• For a comfortable night's rest, clear your camp area of debris
before setting up your tent.
• When opening for the first time, the rainfly is rolled together
with the tent body.
• Lay out all of the contents of the bag and assemble all tent
poles before setting up your tent.
• Push the awning pole through sleeve, don't pull.
• Make sure the sleeve fabric is evenly distributed to avoid
catching the pole section ends.
1

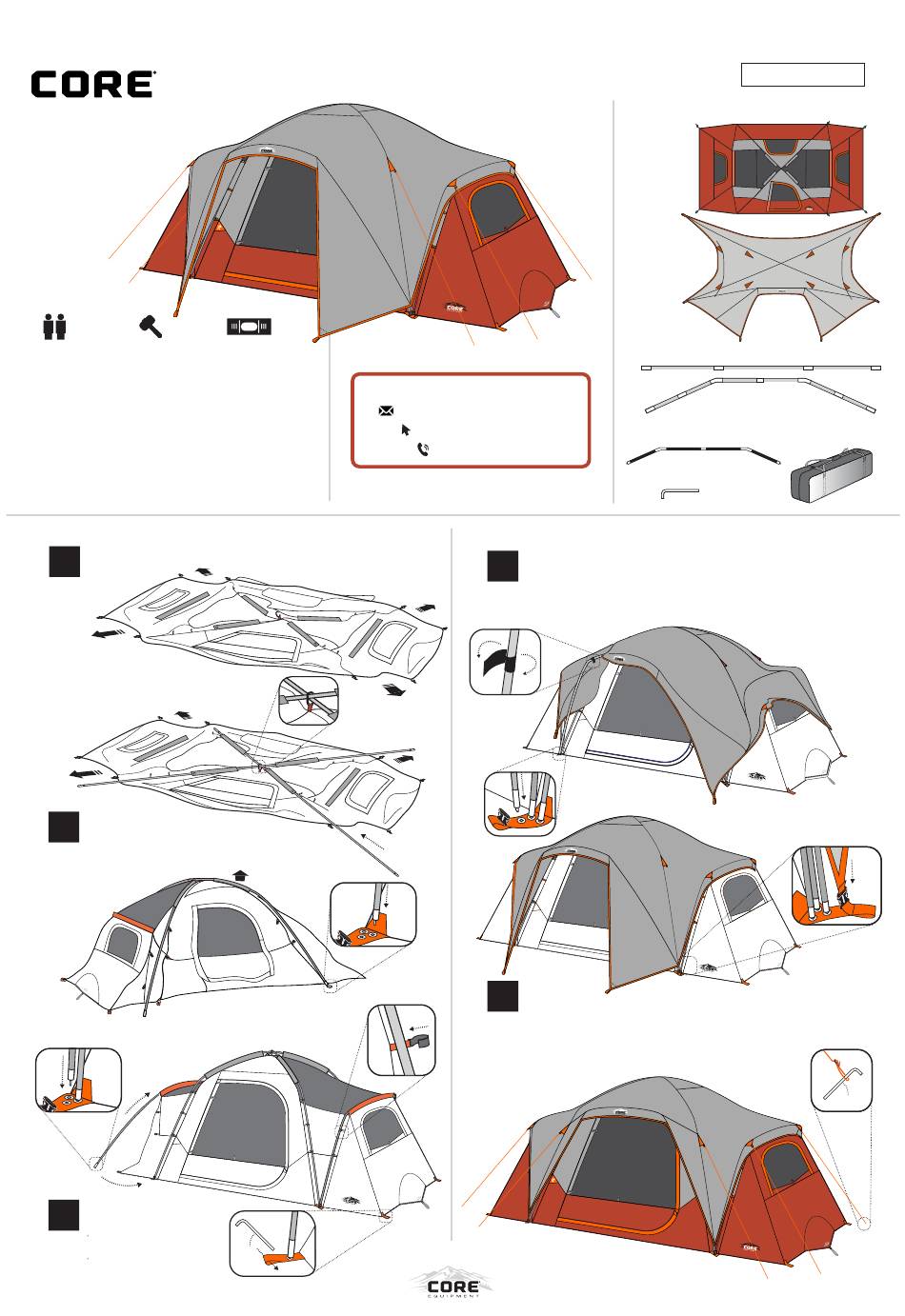

Prepare Tent
• Pull tent out flat
and tight.
• Assemble poles.
• Insert tent poles
into sleeves on top of tent.
• Secure plastic "J" hook to tent
poles where they cross (fig. 1).
2
Raise Tent
NOTE: 2 people are required for this step.
• Flex poles into an arch to raise the roof. Insert the
end of each tent pole into grommets at corners of
tent until tent is
fully upright
(fig. 2).
• Insert side poles into orange sleeves,
arch and insert the tips on each end into the
grommets located at the
corners of the tent
(fig. 3).
fig. 3
3
Secure Tent
to Poles and Stake
Clip plastic hooks to all
tent poles (fig. 4).
Drive stakes through
corner webbed loops at
a 45 ˚ angle (fig. 5 ).
Level Area
fig. 1
fig. 2
fig. 4
45˚
fig. 5
Need some help?
help@coreequipment.com
coreequipment.com
1-888-775-5628
4
Attach Rainfly
• Drape rainfly over the tent, aligning "CORE" logo above the door.
• Insert vestibule pole into sleeve located underneath rainfly above door of tent.
• Arch vestibule pole and insert ends into the second grommet(s) on front corner
of tent foot webbing (fig. 6).
fig. 7
fig. 6
5
Attach
Guylines
& Stake Out
• Stake out vestibule, extending until fabric is taut.
• Stake out each guyline at a 45 ˚ angle (fig. 9).
• Tighten guylines as needed by adjusting the slider up the cord.
• Stake out ground vents on ends of tent (where air intake
graphics are).
Model #40270
Contents & Repair Parts
Tent
Main Dura Wrap Poles x 2 (92205)
Dura Wrap
Side Poles x 2 (92206)
Carry Bag
Vestibule Pole (92208)
(92207)
Stakes x 16 (90014)
• Attach the rest of the rainfly
to the tent using hook-
and-loop fasteners
located on the
• Fasten rainfly on all four corners
using buckles (fig. 8).
fig. 8
(continued on back)
underside
of the
rainfly
(fig. 7).
45˚
fig. 9
