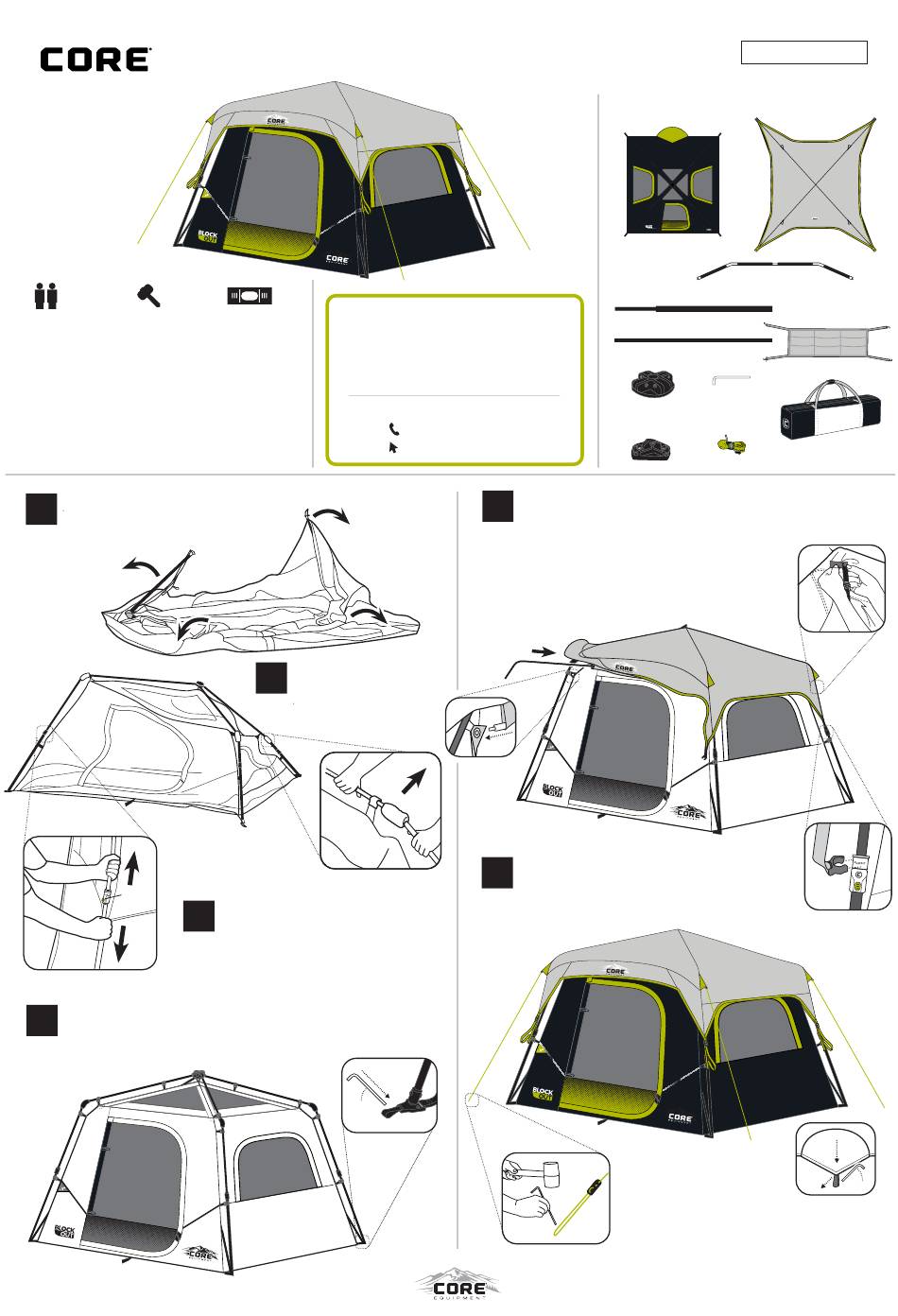

Core 40342 Quick Start Manual

6-person blockout instant cabin tent 10ft x 9ft x 72in

Advertisement

Quick Links

6-Person BlockOut
10 ft x 9 ft x 72 in
We Recommend...
2 People
Rubber Mallet
Setup Tips
• For a comfortable night's rest, clear your camp area of
debris before setting up your tent.
• When opening for the first time, the rainfly is rolled
together with the tent body.
• Remove all protective cardboard and foam inserts around
the side hubs before initial setup.
• Push the awning pole through sleeve, don't pull.
• Make sure the sleeve fabric is evenly distributed to avoid
catching the pole section ends.
1
Prepare for Setup
Select a level site clear of rocks, branches, and other
hard or sharp objects, to set up your tent.
• Remove all contents from bag.
• Unfold (4) leg poles
at the joints.
LOCKING
BUTTON
fig. 2
4
Stake Tent
• You can now easily move your tent to its final position before installing the rainfly.
• Drive stakes at a 45º angle through web loop at base of tent to secure to ground (fig. 3).
• Floor of tent should be taut when staked properly.
Level Area
Pre-attached poles that telescope and
click into place ensure a quick setup.
NOTE: 2 people will be needed to erect
2
Lift Up Arm Joints
NOTE: 2 people will be needed to
erect and extend the tent poles.
Lift up on arm joints (fig. 1) until
roof poles angle upward at joints
and tent partially stands up.
fig. 1
3
Extend Leg Poles
NOTE: DO NOT extend telescoping poles until all
legs and ceiling hubs are elevated.
• Extend each of the (4) leg poles until the locking
buttons "click," and lock the poles into place
(fig. 2).
45˚
fig. 3
Instant Cabin Tent
Instant Tent
Core
Instant Technology:
®
and extend the tent poles.
Need some help?
1-888-775-5628
coreequipment.com
5
Attach Rainfly with Awning Pole
• Drape rainfly over tent, placing "CORE" logo over the tent door.
• Push black awning pole through the sleeve on the underside
of the rainfly above the tent door.
• Arch black awning pole and insert the pins on each end into
the grommets located near tent poles on either side of the
door (fig. 4).
• Attach (4) hook-and-loop tabs on underside of rainfly to tent
poles (fig. 5).
• Snap plastic clip located at corners of rainfly onto the leg pole
where "rainfly" is indicated (fig. 6).
fig. 4
6
Stake Rainfly, Secure Ground Vents
and Guylines
• Remove guylines from green guyline pockets located on rainfly.
• Stake out each guyline at a 45 degree angle (fig. 7).
• Tighten guylines as needed by adjusting the slider up the cord.
fig. 7
Model #40342
Contents & Repair Parts
Tent
Awning Pole
(92342)
Telescoping Leg Poles x 4 (91228)
Corner Roof Poles x 4 (91229)
Center Hub (91230)
Stakes x 10
(90014)
Guylines x 4
Corner Joint
(91220)
(91150)
• Stake out ground vent on back side
of tent (where air intake graphics
are (fig. 8).
• Stake out webbing loop under front
door to improve zipper opening/closing.
Rainfly (92339)
Hanging Organizer
(92340)
Carry Bag
(92341)
fig. 5
fig. 6
45˚
fig. 8
