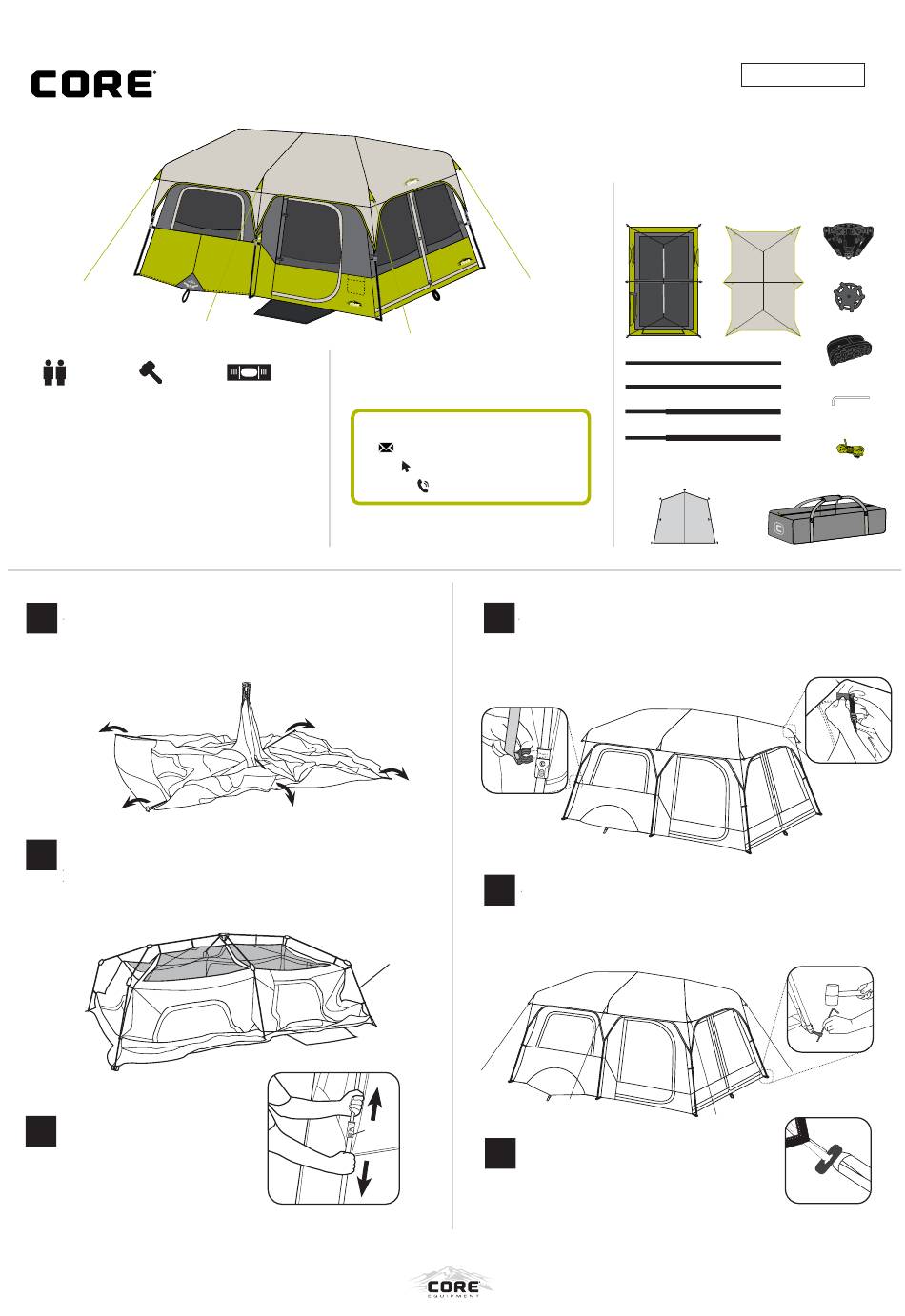

Core 40008 Quick Start Manual

9 person instant cabin tent 14ft x 9ft x 78in

Advertisement

Quick Links

9 Person Instant Cabin Tent
14ft x 9ft x 78in
We Recommend...
2 People
Rubber Mallet
Setup Tips
• For a comfortable night's rest, clear your camp area of debris
before setting up your tent.
• When opening for the first time, the rainfly is rolled together
with the tent body.
• Lay out all of the contents of the bag and assemble all tent
poles before setting up your tent.
• Push the awning pole through sleeve, don't pull.
• Make sure the sleeve fabric is evenly distributed to avoid
catching the pole section ends.
1
Prepare for Setup
Select a level site clear of rocks, branches, and other hard or sharp objects, to set
up your tent.
• Remove all contents from bag.
• Unfold (6) leg poles from the pod shape.
Unfold legs again at joints, to lay tent flat. Center will stand up.
2
Lift Roof and Eave Poles
NOTE: 2 people will be needed to erect and extend the tent poles.
Lift up on corner joints until eave poles at 3-way side hubs are extended.
Grab roof poles and pull straight out to create tent's cabin shape
(leg poles will angle at joints to partially stand up).
3
Extend Leg Poles
NOTE: DO NOT extend telescoping poles
until all legs and ceiling hubs are elevated.
• Extend each of the (6) leg poles until the
locking buttons "click," and lock the poles
into place. (fig. 1)
Level Area
LOCKING
BUTTON
fig. 1
Need some help?
help@coreequipment.com
coreequipment.com
1-888-775-5628
4
Attach Rainfly
Drape rainfly over tent, placing "CORE" logo over door.
• Snap plastic clip attached to strap located at corner of rainfly onto the upper portion
of the button box on leg pole labeled RAINFLY. (fig. 2)
• Tighten straps on rainfly to secure.
• Attach (1) hook-and-loop tab on the underside of the rainfly to each pole. (fig. 3)
fig. 2
5
Stake Tent, Secure Ground Vents and Guylines
Drive stakes at a 45º angle through web loop at base of tent to secure to ground. (fig. 4)
• Floor of tent should be taut when staked properly.
• Locate guylines attached to the rainfly.
• Stake out each guyline at a 45 degree angle.
• Tighten guylines as needed by adjusting the slider up the cord.
• Stake out ground vents on either side of tent (where air intake graphics are).
LEG POLE
6
Install Room Divider
NOTE: The divider curtain provides extra privacy in your tent.
• To install it, attach divider's plastic toggles to corresponding
loops on the wall inside the tent. (fig. 5)
Model #40008
Contents & Repair Parts
Tent
Rainfly (90492)
Mid Eave Pole (90572)
Side Eave Pole (90571)
Corner Telescoping Leg Pole x 4 (90573)
Middle Telescoping Leg Pole x 2 (90574)
Room Divider (90493)
Carry Bag (90494)
(continued on back)
Center Hub (90491)
Side Hub (90138)
Corner Joint (90126)
Stakes x 15
(90014)
Reflective Guyline x 6
(91221)
fig. 3
fig. 4
fig. 5
