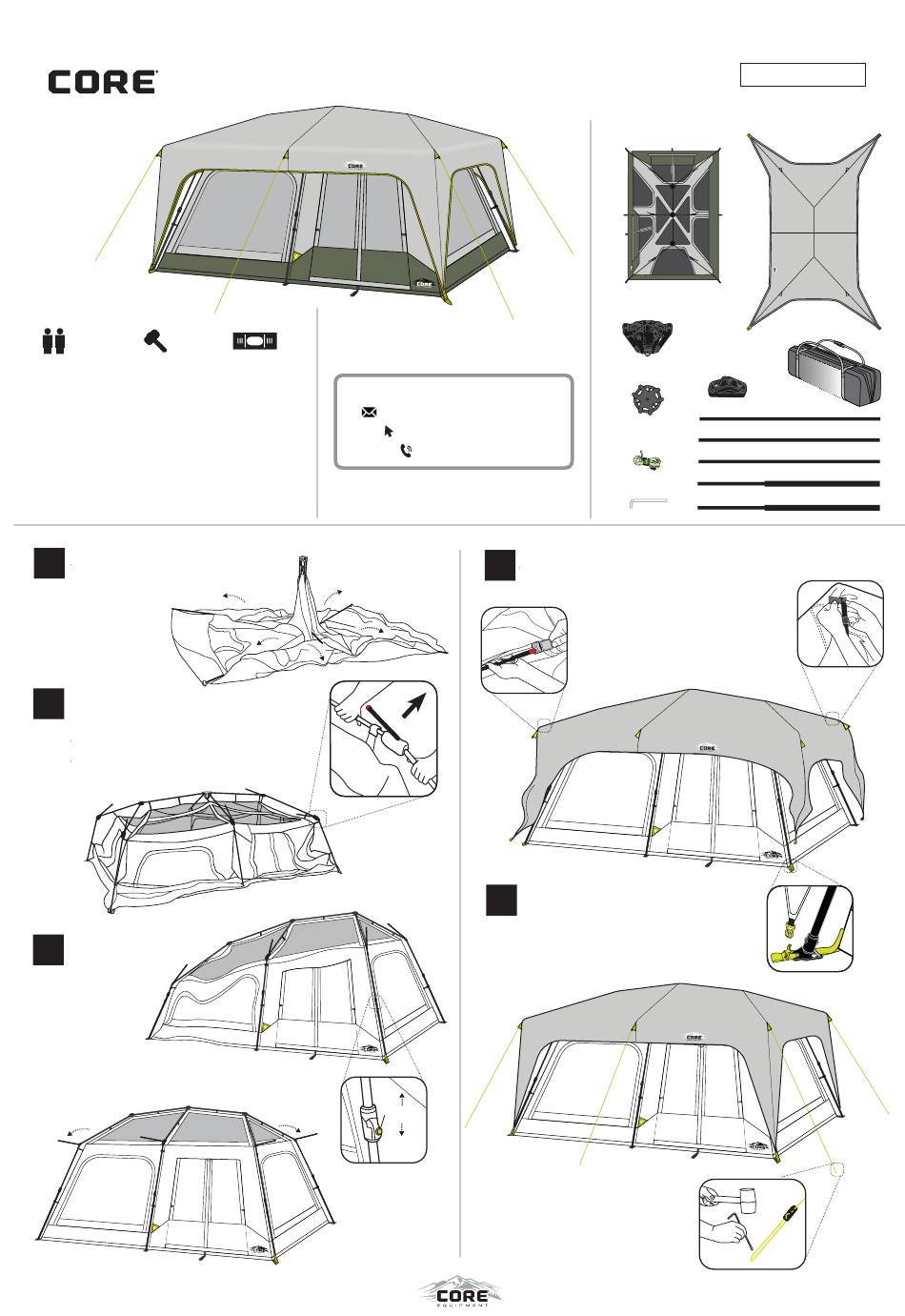

Core 40235 Quick Start Manual

10 person performance instant tent 14ft x 10ft x 78in

Advertisement

Quick Links

10 Person Performance Instant Tent
14ft x 10ft x 78in
We Recommend...
2 People
Rubber Mallet
Setup Tips
• For a comfortable night's rest, clear your camp area of debris
before setting up your tent.
• When opening for the first time, the rainfly is rolled together with
the tent body.
• Lay out all of the contents of the bag and assemble all tent
poles before setting up your tent.
• For best results in windy conditions, position narrow end of tent
into the wind.
• Secure with all stakes and guylines provided to prevent property
damage or personal injury.
1
Prepare for Setup
Select a level site clear of rocks, branches, and
other hard or sharp objects, to set up your tent.
• Remove all contents from bag.
• Unfold (6) leg poles from
the pod shape.
Unfold legs again at
joints, to lay tent flat.
Center will stand up.
2
Lift Roof and
Eave Poles
NOTE: 2 people will be needed to erect and extend the
tent poles.
Lift up on corner joints until roof poles at 3-way side hubs
are extended (fig. 1).
Grab roof poles and pull straight out to create tent's cabin
shape (leg poles will angle at joints to partially stand up).
3
Extend Leg Poles
NOTE: DO NOT extend
telescoping poles until
all legs and ceiling
hubs are elevated.
• Extend each of the
(6) leg poles until
the locking
buttons "click,"
and lock the
poles into
place (fig. 2).
• Rotate short eave arms
so they are positioned
facing outwards.
Level Area
Need some help?
help@coreequipment.com
coreequipment.com
fig. 1
LOCKING
BUTTON
fig. 2
fig. 2
1-888-775-5628
4
Attach Rainfly
Drape rainfly over tent, placing "CORE" to the front side of tent
with door. Two front corners have day-glo yellow webbing and
buckles to help orient rainfly.
• Insert ends of short eave arms into hook-
and-loop pockets on underside of rainfly (fig. 3).
• Fasten rainfly on all four corners using buckles
(fig. 4).
• Attach all hook-and-loop tabs on the underside
of the rainfly to roof and leg poles (fig. 5).
fig. 3
5
Stake Rainfly,
Secure Ground Vents
and Guylines
• Remove guylines from green guyline pockets located
on rainfly.
• Stake out each guyline at a 45 degree angle. (fig. 6)
• Tighten guylines as needed by adjusting the
slider up the cord.
• Stake out ground vent on back side of tent
(where air intake graphics are).
• Stake out webbing loop under front door
to improve zipper opening/closing.
Model #40235
Contents & Repair Parts
Tent
Center Hub (90137)
Corner Joint
(92086)
Side Hub (90138)
Roof Pole (90570)
Side Eave Pole (90571)
Reflective Guyline x 6
(91220)
Mid Eave Pole (90572)
Corner Telescoping Leg Pole x 4 (92093)
Stakes x 15 (90004)
Middle Telescoping Leg Pole x 2 (92091)
fig. 4
fig. 6
Rainfly (92102)
Carry Bag (92103)
fig. 5
