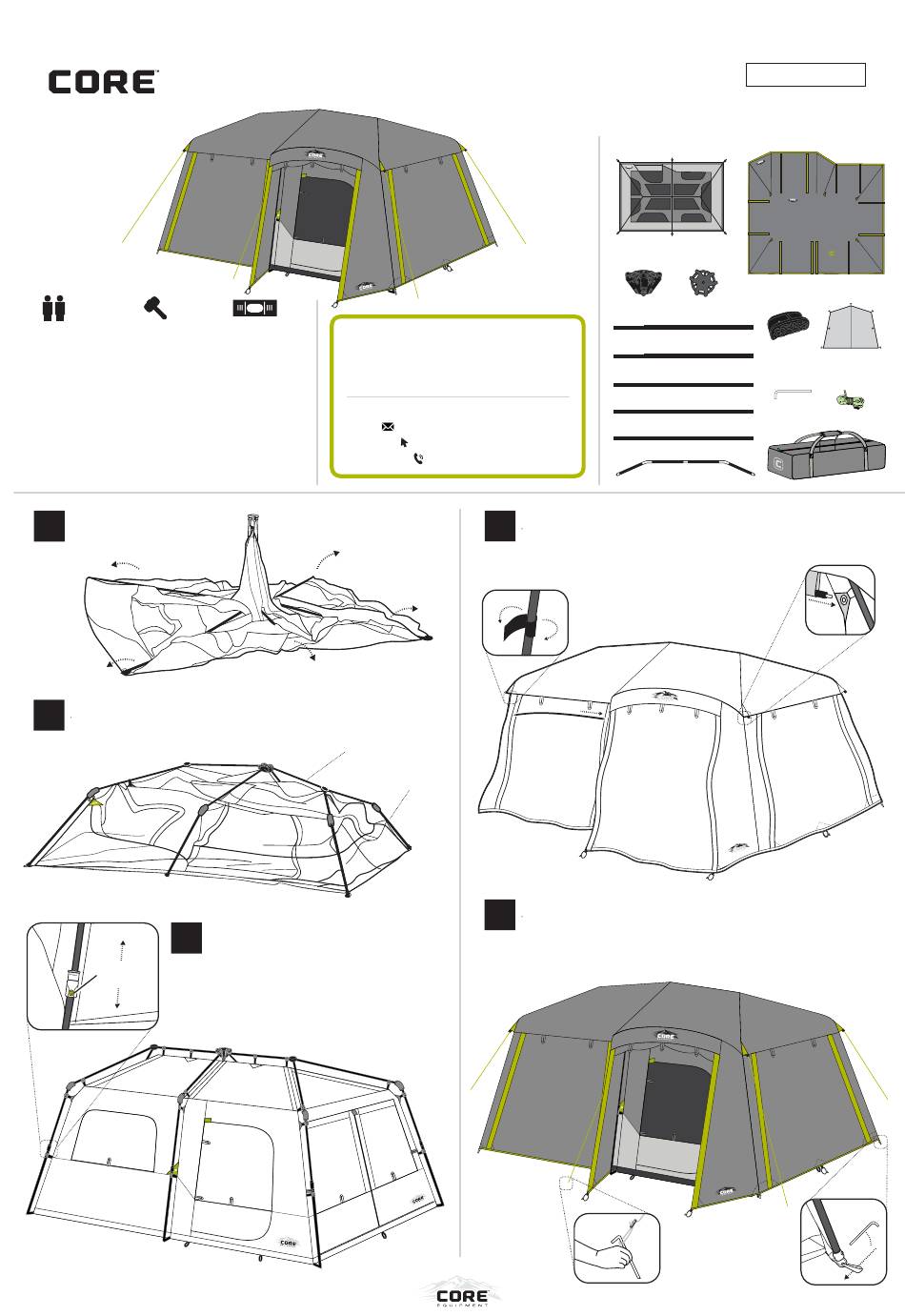

Core 40217 Quick Start Manual

9 Person Instant Cabin Tent
14ft x 9ft x 78in
2 People Rubber Mallet
Setup Tips
• For a comfortable night's rest, clear your camp area of debris
before setting up your tent.
• When opening for the first time, the rainfly is rolled together with
the tent body.
• Remove all protective cardboard and foam inserts around the
side hubs before initial setup.
• Push the awning pole through the sleeve, don't pull.
• Make sure the sleeve fabric is evenly distributed to avoid
catching the pole.
1
Prepare for Setup
• Unfold (6) leg poles at the joints.
Center will stand up.
2
Lift Up Arm Joints
Grab roof poles and pull straight out to create tent's cabin shape
(leg poles will angle at joints to partially stand up).
3
LOCKING
BUTTON
fig. 1
Level Area
Instant Tent
Pre-attached poles that telescope and click into
place ensure a quick 60-second setup
NOTE: 2 people will be needed to erect
Roof Pole
Extend Leg Poles
NOTE: DO NOT extend telescoping poles until
all legs and ceiling hubs are elevated.
• Extend each of the (6) leg poles until the green
locking buttons "click," and lock the poles into
place (fig. 1).
• You can now easily move your tent to its final
position before installing the rainfly and securing
with stakes and guylines.
Core ™ Instant Technology:
and extend the tent poles
Need some help?
help@coreequipment.com
coreequipment.com
1-888-775-5628
4
Attach Rainfly with Awning Pole
Drape rainfly over tent, placing "CORE" to the front side of tent with door.
• Push black awning pole through the sleeve on the inside front of rainfly.
• Arch black awning pole and insert the pins on each end into
the grommets located at the top of each front corner of
fig. 4
Leg Pole
5
Stake Tent, Secure Ground Vents and Guylines
Drive stakes at a 45º angle through web loop at base of tent to secure to
ground (fig. 5). Floor of tent should be taut when staked properly.
• Stake out each guyline and rainfly loop at a 45 ˚ angle (fig. 6).
• Tighten rainfly guylines as needed by adjusting the slider up the cord.
Contents & Repair Parts
Tent
Center Hub Side Hub
(92118) (90138)
Corner Telescoping Pole (92116)
Middle Telescoping Leg Pole (92114)
Middle Eave Pole (92113)
Side Eave Pole (92115)
Roof Pole (90490)
Awning Pole (92132)
the tent (fig. 3).
• Attach (1) hook-and-loop tab on the
underside of the rainfly to each pole
(fig. 4).
fig. 6
Model #40217
Rainfly (92119)
Room Divider
Corner Joint
(90493)
(91150)
Reflective
Stakes x 10
Guyline x 6
(90014)
(91220)
Carry Bag (92120)
fig. 3
45
˚
fig. 5
