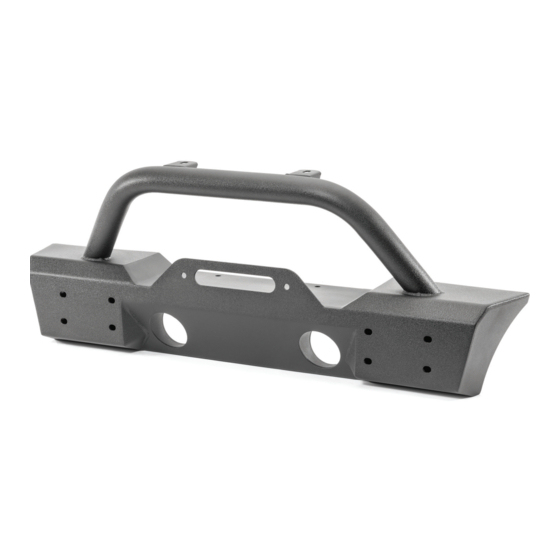

Winch Ready JK Front Bumper
Installation Manual for 2007 - Current Wrangler (JK)
JKFBTB-002
#
To be safe while installing this product, read all messages and understand all instructions.
Mount a winch per the winch maker instructions. Use safe winching practices.
Always wear safety glasses while installing or working on this product. Recheck nuts and
bolts and re-torque after 250 miles. Periodically check the nuts and bolts during the life of
the product. Do not use this product if it is damaged. Check state and local laws regarding
permitted bumper sizes, types and heights.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Tactik JKFBTB-002
Summary of Contents for Tactik JKFBTB-002
- Page 1 Winch Ready JK Front Bumper Installation Manual for 2007 - Current Wrangler (JK) JKFBTB-002 To be safe while installing this product, read all messages and understand all instructions. Mount a winch per the winch maker instructions. Use safe winching practices.
-
Page 2: Required Tools
Winch Ready Front Bumper Parts & Tools REQUIRED TOOLS: KIT CONTENTS LIST: Safety Glasses A.) Winch Ready Front Bumper (1) 18mm Socket Extension & Ratchet B.) D-Rings (2) Phillips Screwdriver C.) D-Ring Washers (4) Forked Clip/Trim Removal Tool D.) D-Ring Isolators (2) E.) M12 Flat Washers (8) F.) M12 Nuts (8) G.) M4 Phillips Screws (8) - Page 3 Step 1 Step 2 Put on safety glasses. Remove the 4 plastic push rivets Remove the two plastic push rivets on the backside. on the underside of the bumper that are holding on the (Step 2) Remove the splash guard. splash guard.
- Page 4 Step 7 Step 8 Remove the plastic screw rivets with Remove the factory fog lights from the factory bumper a Phillips screwdriver. (Step 7) with a Phillips screwdriver. (Step 8) Set aside fog lights for reuse later. Step 9 Step 10 Install the fog lights with the 8 provided Phillips head Before installing the bumper you must first install your screws and flange nuts using a Phillips screwdriver.
- Page 5 Step 13 Step 14 Secure the bolts with the 8 M12 nuts, split washer and Reconnect fog-light wiring. (Step 14) flat washers on the back of the frame. Tighten with an 18mm socket and ratchet. (Step 13) Step 15 Step 14 Step 12 Finally, install D-Rings with provided washers and Isolators.
