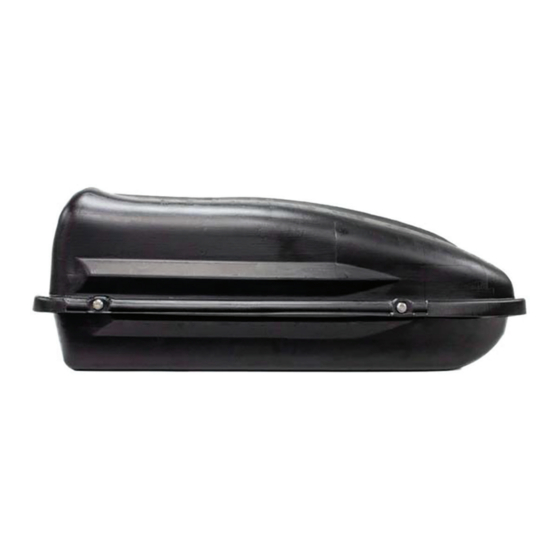

Rooftop Cargo Carrier
Instruction Manual: #92020-1000 (10 Cubic Ft)
and 92020-1001 (18 Cubic Ft)
THIS ROOFTOP CARGO CARRIER IS DESIGNED TO ATTACH/MOUNT TO THE ROOF OF THE
VEHICLE. IMPROPER INSTALLATION OR USE OF THIS ROOFTOP CARGO CARRIER MAY
RESULT IN SERIOUS INJURY OR DEATH. FOLLOW THESE INSTALLATION INSTRUCTIONS
CAREFULLY TO ENSURE PROPER INSTALLATION ON YOUR VEHICLE AND SAFE USE OF
YOUR ROOFTOP CARGO CARRIER.
THIS ROOFTOP CARGO CARRIER ADDS SIGNIFICANT HEIGHT TO YOUR VEHICLE. BE
AWARE OF THAT DIFFERENCE IN HEIGHT AROUND LOW CLEARANCE AREAS SUCH AS
LOW TREE BRANCHES, BRIDGES, HOME GARAGES, CAR WASHES AND PARKING GARAGES.
REMOVE THE CARGO CARRIER BEFORE ENTERING THOSE AREAS.
Advertisement
Table of Contents
Related Manuals for Tactik 92020-1000
Summary of Contents for Tactik 92020-1000
- Page 1 Rooftop Cargo Carrier Instruction Manual: #92020-1000 (10 Cubic Ft) and 92020-1001 (18 Cubic Ft) THIS ROOFTOP CARGO CARRIER IS DESIGNED TO ATTACH/MOUNT TO THE ROOF OF THE VEHICLE. IMPROPER INSTALLATION OR USE OF THIS ROOFTOP CARGO CARRIER MAY RESULT IN SERIOUS INJURY OR DEATH. FOLLOW THESE INSTALLATION INSTRUCTIONS CAREFULLY TO ENSURE PROPER INSTALLATION ON YOUR VEHICLE AND SAFE USE OF YOUR ROOFTOP CARGO CARRIER.
- Page 2 A FEW WORDS ABOUT PRODUCT SAFETY: Your Tactik Rooftop Cargo Carrier is intended to enhance the utility and enjoyment of your vehicle. Before installation, please review the following safety information and installation recommendations. Throughout these instructions important safety information is generally preceded by one of the three signal words indicating the relative risk of injury, property damage or adverse consequence.
- Page 3 BEFORE YOU USE KIT CONTENT LIST: A. Mounting Bracket (x4) B. Knob (x8) C. Mounting Back Plate (x4) D. "CAUTION" (Low Clearance) Decal (x1) E. Keys (x2) OPTIONAL TOOLS: Drill 9/32" Drill Bit INSTRUCTIONS Put on safety glasses. Place the base on a flat surface. FIG 1 Before placing the top on, make sure all four locks are in the unlocked position.
- Page 4 FIG 4 FIG 5 24" Front of Vehicle If the cross rails on the vehicle are movable, set them at 24” apart measured from the center of the rail. (Fig 4) The lower, more streamelined section of the cargo carrier is the front and should be pointed in the same direction as the front of the vehicle.
- Page 5 FIG 8 FIG 9 Before mounting cargo carrier onto the roof rack of the vehicle, we will attach the internal uprights to the top of the carrier. While holding the lid open, locate the closest upright on either the forward or rear internal surface. (Fig 8) Raise the upright on front and rear ends and place the ball stud into the larger hole and slide into the locked position.
- Page 6 Thread knobs onto the threaded posts from the previous FIG 12 step. (Fig 12) Do not fully tighten at this point. Repeat the mounting bracket, mounting plate and knobs steps until all four brackets, four mounting plates and eight knobs are loosely in place.
- Page 7 FIG 16 FIG 17 3-digit code Unlocked. (Fig 16) Locked. (Fig 17) Make sure to lock all locks and secure the bale latch prior to driving vehicle. Note the number on the face of the lock and the key should be the same. REPLACEMENT PARTS Keys (x2) #92020.900X Please specify the 3-digit lock and key code when ordering.
- Page 8 Remedy Limited to Repair/Replacement: The exclusive remedy provided hereunder shall, upon TACTIK inspection ® and at TACTIK’s option, be either repair or replacement of product or parts (new or refurbished) covered under this Limited Warranty. Customers requesting warranty consideration should first contact TACTIK to obtain a RGA number ®...
