AND UNDERSTAND ALL INSTRUCTIONS AND PROCEDURE NOTICES BEFORE
ATTEMPTING TO INSTALL OR USE THIS PRODUCT.
OR MAINTAINING THIS PRODUCT. DO NOT USE IF DAMAGED.
TRUCK'S GROSS VEHICLE WEIGHT RATING.
INSTRUCTION MANUAL CANNOT COVER ALL POSSIBLE CONDITIONS OR
SITUATIONS THAT COULD OCCUR.

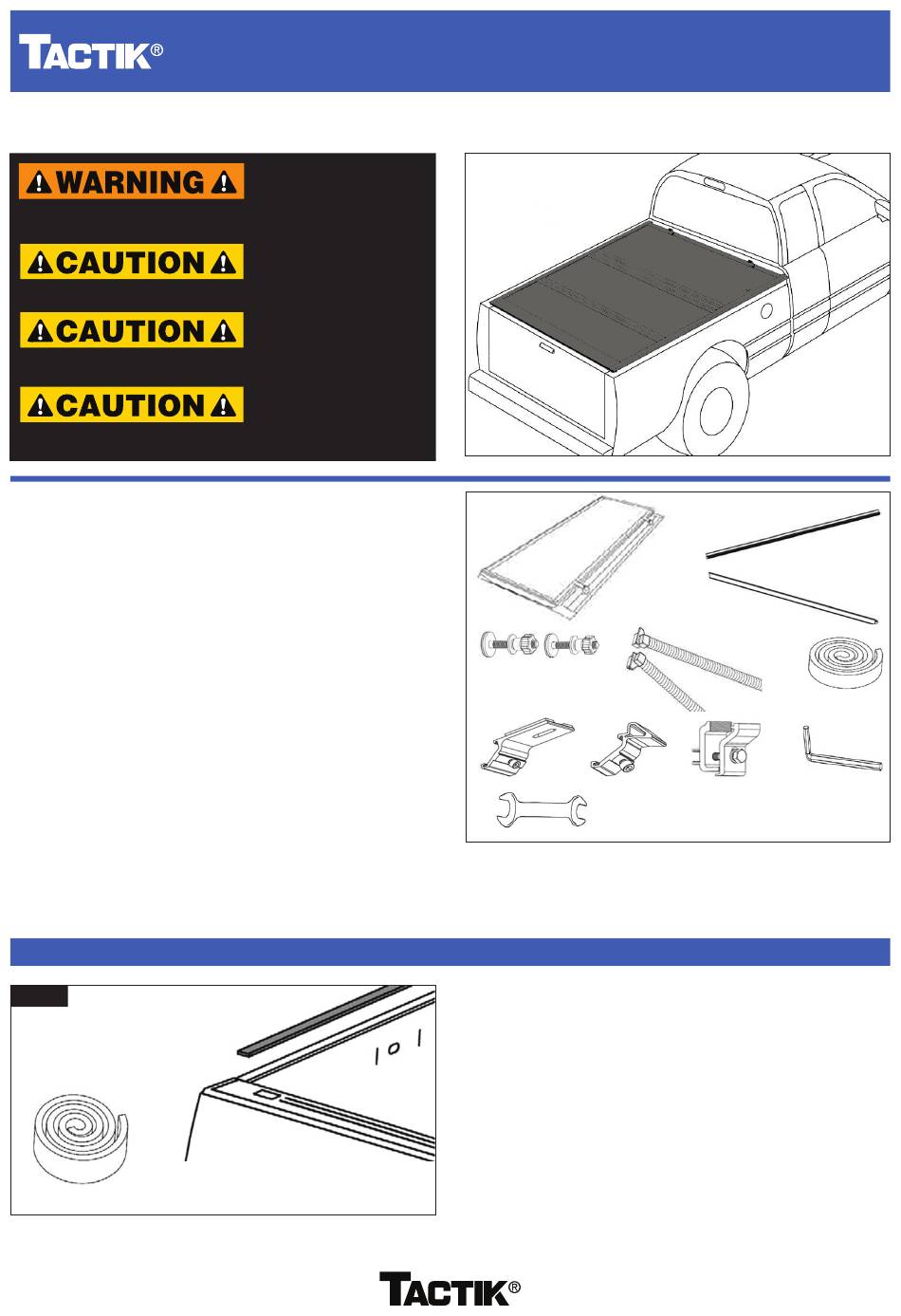

PARTS LIST
A. Tonneau Cover - (x1)
B. Left Side Rail - (x1)
C. Right Side Rail - (x1)
D. Front Bolt - (x2)
E. Drain Tube - (x2)
F. Foam Seal Tape - (x1)
G. Front Support Plate (Including Bolts) - (x2)
H. Side Rail Locking Tongue - (x2)
I. Clamp Assembly - (x4)
J. Allen Wrench - (x1)
K. 17MM Wrench - (x1)
REQUIRED TOOLS
Safety Glasses
Allen Wrench
17mm Wrench
FIG 1
Low Profile Tri-Fold Hard Tonneau Cover
TO REDUCE RISK OF SERIOUS
INJURY OR PROPERTY DAMAGE:
READ ALL SAFETY MESSAGES
RISK OF EYE INJURY! SAFETY
GLASSES MUST BE WORN AT
ALL TIMES WHILE INSTALLING
DO NOT EXCEED RATED WEIGHT
CAPACITY OF TONNEAU COVER.
DO NOT EXCEED RATED WEIGHT
CAPACITY OF TRUCK. REFER TO
THE WARNINGS, CAUTIONS,
AND INSTRUCTIONS
DISCUSSED IN THIS
A.
D.
E.
G.
H.
K.
STEP 1
Looking at the front rail of the truck bed near the cab,
determine if the truck bed side rails are higher than the
front edge of the bed. If the rails are higher that the front
bed rail, then use the foam seal tape on the front edge of
the bed to fill gap. Measure the length of the rail and cut
the foam seal tape to length. Peal the backing from the
foam seal and place on the full length of the rail. (Fig 1)
Installation & Use Instructions:
For Part # 72074-8000/72074-
8001/12074-1000
B.
C.
F.
I.
J.
Advertisement
Table of Contents
Related Manuals for Tactik 2433109
Summary of Contents for Tactik 2433109
- Page 1 Installation & Use Instructions: Low Profile Tri-Fold Hard Tonneau Cover For Part # 72074-8000/72074- 8001/12074-1000 TO REDUCE RISK OF SERIOUS INJURY OR PROPERTY DAMAGE: READ ALL SAFETY MESSAGES AND UNDERSTAND ALL INSTRUCTIONS AND PROCEDURE NOTICES BEFORE ATTEMPTING TO INSTALL OR USE THIS PRODUCT. RISK OF EYE INJURY! SAFETY GLASSES MUST BE WORN AT ALL TIMES WHILE INSTALLING...
- Page 2 INSTALLATION FIG 3 FIG 2 Rear End Front End STEP 2 Put on safety glasses. Slide the front support plate onto the side rails.The front of the side rails should be open and the rear of the rail has a cap. Make sure that the grooves fully align and move the front support plate a few inches from the front part of side rail.
- Page 3 INSTALLATION (CONT.) FIG 8 FIG 9 STEP 5 With a partner, place the side rail on the truck bed rail. Align the rail to the front wall of truck bed. (Fig 8) Loosen or remove hardware from clamp to place clamp at the rear of the side rail. Place nut on the backside of the clamp. Insert bolt through small washer and larger flat washer and finger-tighten bolt.
- Page 4 INSTALLATION (CONT.) FIG 14 FIG 15 STEP 8 Place the flat washer and spring washer onto the front bolt from the underside of the cover. Begin to thread the plastic nut onto the bolt (Fig 14) Repeat for the other side. When both bolts are on, align the cover once again and then tighten the plastic bolt to secure cover in place.
- Page 5 WITHOUT A FACTORY TRACK SYSTEM (CONT.) FIG 20 FIG 21 STEP 11 Place a side rail on one side of the bed. Push it to the front wall of the bed. (Fig 20) Next, place one clamp towards the front of the side rail and place another towards the rear of the tailgate. (Fig 21) FIG 22 FIG 23 STEP 12...
- Page 6 Remedy Limited to Repair/Replacement: The exclusive remedy provided hereunder shall, upon TACTIK inspection ® and at TACTIK’s option, be either repair or replacement of product or parts (new or refurbished) covered under this Limited Warranty. Customers requesting warranty consideration should first contact TACTIK to obtain a RGA number ®...
