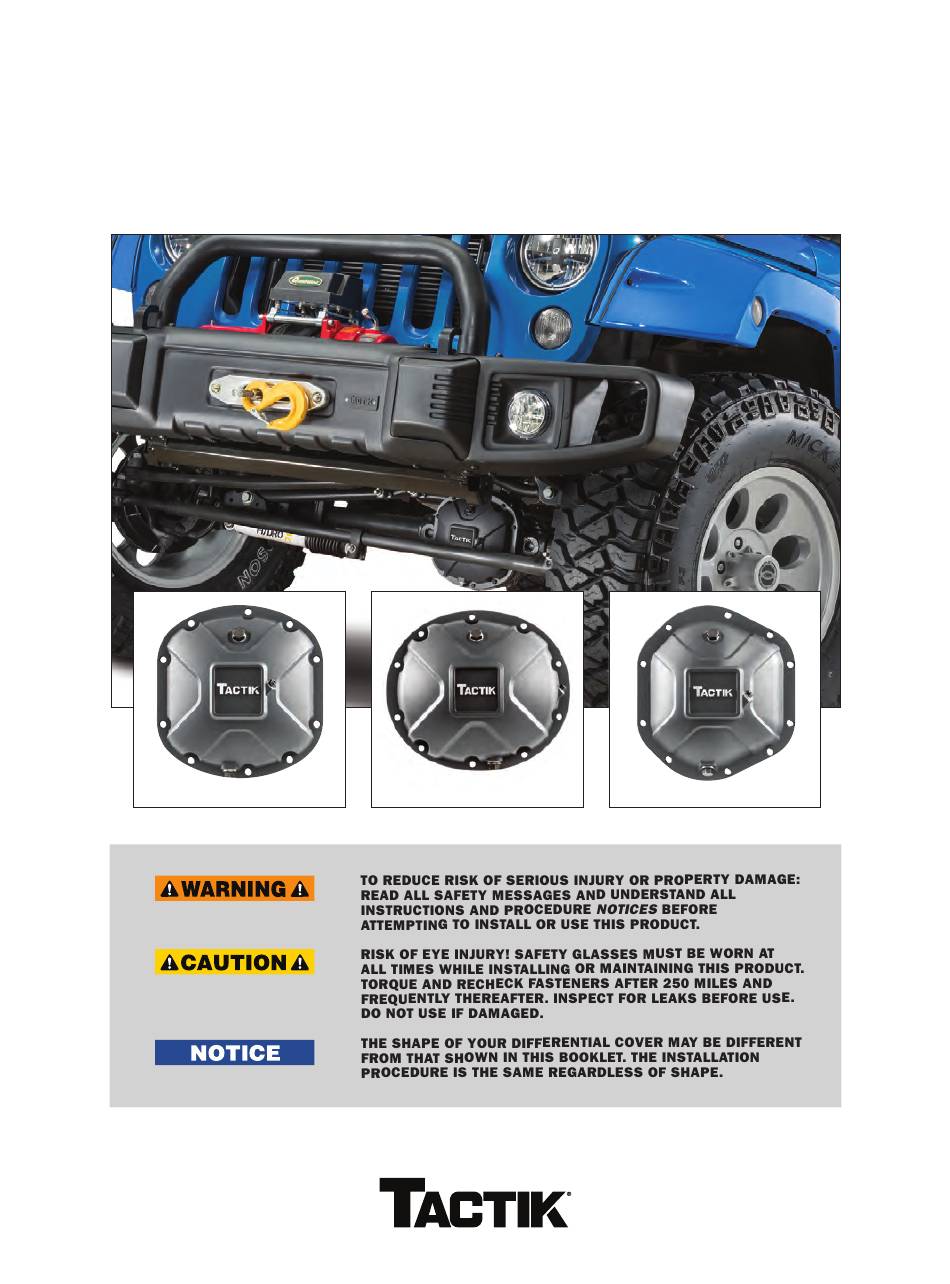

- Page 1 ® ACTIK Differential Covers Installation Manual for Jeep Vehicles with Dana 30/35/44 Axles 12011.010X For Dana 30 For Dana 35 For Dana 44...
- Page 2 Careful attention is required to this instruction or operation but does generally not relate to personal injury. Damage to your TACTIK product or other property may result if you don’t follow instructions. Before You Begin Installation:...
- Page 3 Differential Cover Parts List: ACTIK Differential Cover Installation: ACTIK Figure 1 Figure 2 Caution: Put on safety glasses. Drain oil Important: Remove all gasket residue if housing or current cover is equipped from axle housing sealing surface. Do with a drain plug. Remove bolts from not let gasket material contaminate existing cover with 1/2”...
- Page 4 Differential Cover Installation: ACTIK Figure 3 Figure 4 Install Differential Cover using supplied cross pattern. Install the Drain Plug and 5/16” Flange Bolts. (FIG3) With 1/2” 1/2” Washer into bottom of Differential socket, Torque bolts to 30 ft-lbs using a Cover with 14mm socket.
-
Page 5: Five Year Limited Warranty
® in connection with this product or Limited TACTIK’s option, be either repair or replace- Warranty. ment of product or parts (new or refurbished) covered under this Limited Warranty.
