Soft Trifold Cover
1028 Saunders Lane
West Chester, PA 19380
Soft Trifold Tonneau Cover
Cover
1 / 9
610.701.3336 ext. 3746
404.558.8652 cell
610.701.2402 fax

Advertisement

loading
Need help?

Need help?

Do you have a question about the 3033109 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tactik 3033109

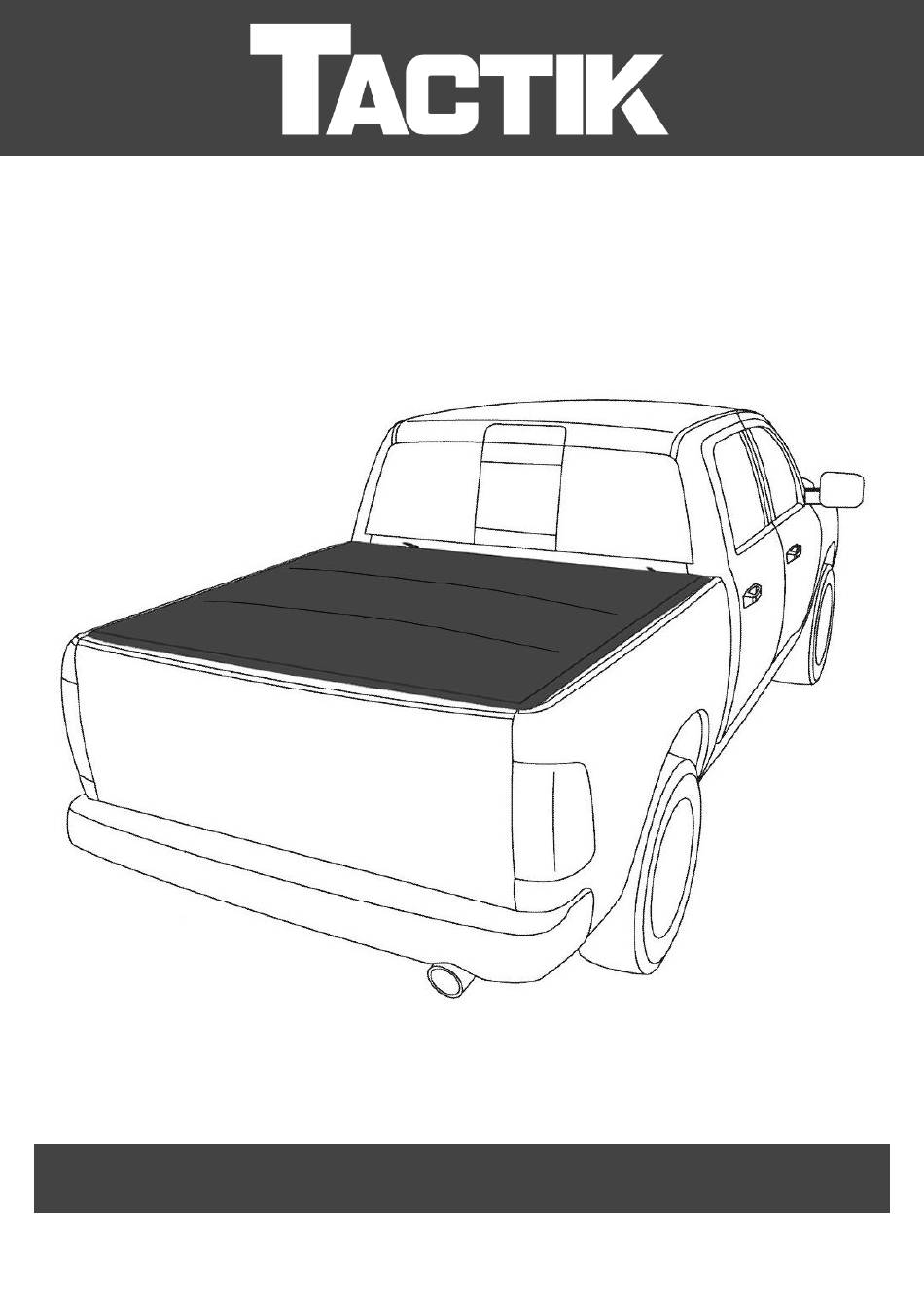

  • Page 1 Soft Trifold Tonneau Cover Cover Soft Trifold Cover 1028 Saunders Lane 610.701.3336 ext. 3746 West Chester, PA 19380 404.558.8652 cell 610.701.2402 fax 1 / 9...
  • Page 2 Soft Trifold Tonneau Cover Cover Parts included in the Assembly: Item Description Picture Assembled Tri-fold Cover Safety Locking pin *For truck with Utility Track system, please read page 7/9,to set up bracket on Track system. 1028 Saunders Lane 610.701.3336 ext. 3746 West Chester, PA 19380 404.558.8652 cell 610.701.2402 fax...
  • Page 3 Soft Trifold Tonneau Cover Cover Check contents of carton with the list above. Clean truck bed thoroughly before installation. Step1 Place assembled cover over cab front end of truck box. Step2 Unfold the cover fully and adjust position over the truck bed for proper alignment on cab/tail.
  • Page 4 Soft Trifold Tonneau Cover Cover Step3 Carefully refold the cover without shifting its position on the truck bed. Step4 Take off the clamp bolt from cover rail. Adjust the clamping bolt to proper position. Move the bolt base to secure position. Step5 Secure the Front Clamp Knobs (left and right) by pulling the clamp Knob down to clamp the metal bed wall edge of truck and screw on...
  • Page 5 Soft Trifold Tonneau Cover Cover Step6 Safety Strap Instructions When you open the cover there are two safety buckles near the front clamps. Place the assembled cover on the front end of truck bed. When the front clamps are secured, install the safety strap (see the photos). Tighten the knob of the safety straps.
  • Page 6 Soft Trifold Tonneau Cover Cover Step7 Secure the Rear Clamps (left and right) by pulling the clamp handle down to clamp the metal bed wall edge of truck. Note: If necessary, adjust the clamp position by rotating the clamp on the bolt to ensure the clamp is tightly clamped on the metal bed wall edge of truck.
  • Page 7 Soft Trifold Tonneau Cover Cover Nissan/Toyota/Jeep Trucks (with Utility Track channel) only *Slide the retainer plates into the side channels on the vehicle bed. (2 per side, 1 goes in front and 1 in back) *Attach the clamp bracket to the plate with the included Allen head bolts.
  • Page 8 Soft Trifold Tonneau Cover Cover To open the cover Release the rear clamps, fold the cover forward. Note 1) when folding the cover, make sure to lock the rear clamps into the Cover Side Rail. 2) When cover is folded completely, secure the folded cover by fastening the straps with buckles together.
  • Page 9: Intended Use

    Soft Trifold Tonneau Cover Cover WARNINGS CLEANING READ AND UNDERSTAND ALL INSTRUCTIONS. FAILURE TO FOLLOW Clean with cold water and a cloth. Do use a ALL INSTRUCTIONS LISTED, FAIL TO READ MAY RESULT SERIOUS neutral soap and detergents. Do not expose INJURY.
