ASSEMBLY INSTRUCTIONS

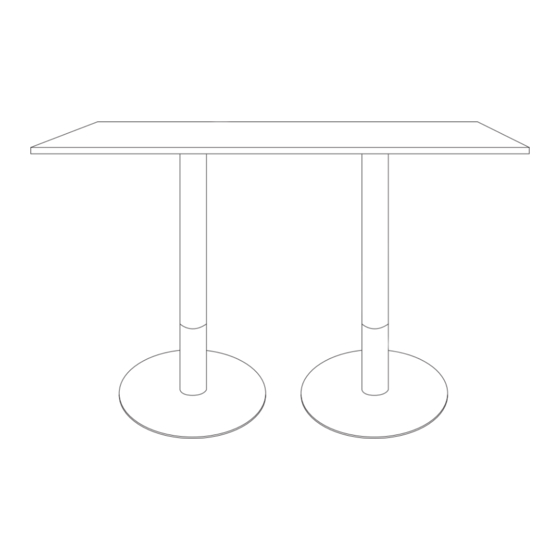

Rivoli Double
Cafe Table Round Base
1600X800, 1800X1100
Need help!
Call us on
1300 527 665
Tools Required: Power screwdriver. We strongly recommend using
an impact drill gun together with thread locking all screws.
Note: Please ignore any pre-drilled holes or nut inserts that maybe
present in your top(s). They will not match your particular
table/desk base and woods screws will be required to be screwed
directly into the underside of the top.
Note: It is important to fully tighten all bolts and screws before
attaching the top(s) so that the frame is su ciently rigid. Failure
to do this may a ect stability once the tops are attached.
www.jasonl.com.au
1 of 3
Advertisement
Related Manuals for Jason.L Rivoli Double Cafe Table Round Base 1600X800
Summary of Contents for Jason.L Rivoli Double Cafe Table Round Base 1600X800
- Page 1 ASSEMBLY INSTRUCTIONS Rivoli Double Cafe Table Round Base 1600X800, 1800X1100 Tools Required: Power screwdriver. We strongly recommend using an impact drill gun together with thread locking all screws. Note: Please ignore any pre-drilled holes or nut inserts that maybe present in your top(s). They will not match your particular table/desk base and woods screws will be required to be screwed directly into the underside of the top.
- Page 2 ASSEMBLY INSTRUCTIONS Rivoli Double Cafe Table Round Base 1600X800, 1800X1100 A * 1 B * 1 STEP 1 STEP 2 C * 1 D * 3 (M8*30mm) E * 3 (M8*30mm) F * 1 G * 8 woodscrews www.jasonl.com.au Need help! 2 of 3 1300 527 665 Call us on...
- Page 3 ASSEMBLY INSTRUCTIONS Rivoli Double Cafe Table Round Base 1600X800, 1800X1100 STEP 3 STEP 4 Adding the Top Screw the table top through the square top plate using woodscrews (G*8 wood screws) through the Ask a second person to help to following holes.
