April, 2024
For easy assembly, please carefully follow the step by step instructions.
LA72BK

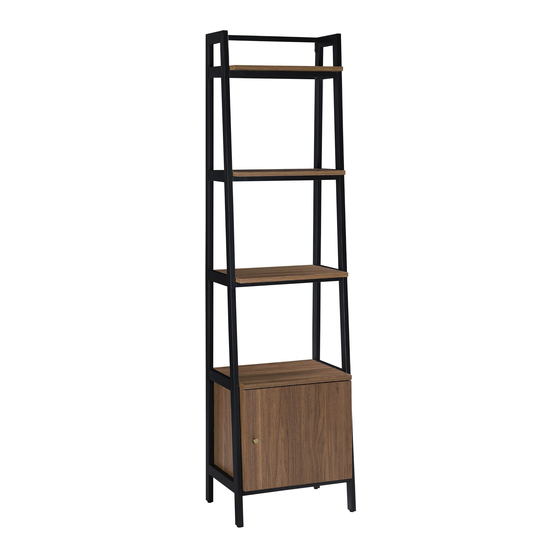

72" LADDER BOOKCASE
Assembly Instructions - Important:
Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when assembling
the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or information on other
products, please visit our website: www.officestar.net or call or write us.
Advertisement
Related Manuals for OSP Home Furnishings LA72BK
Summary of Contents for OSP Home Furnishings LA72BK

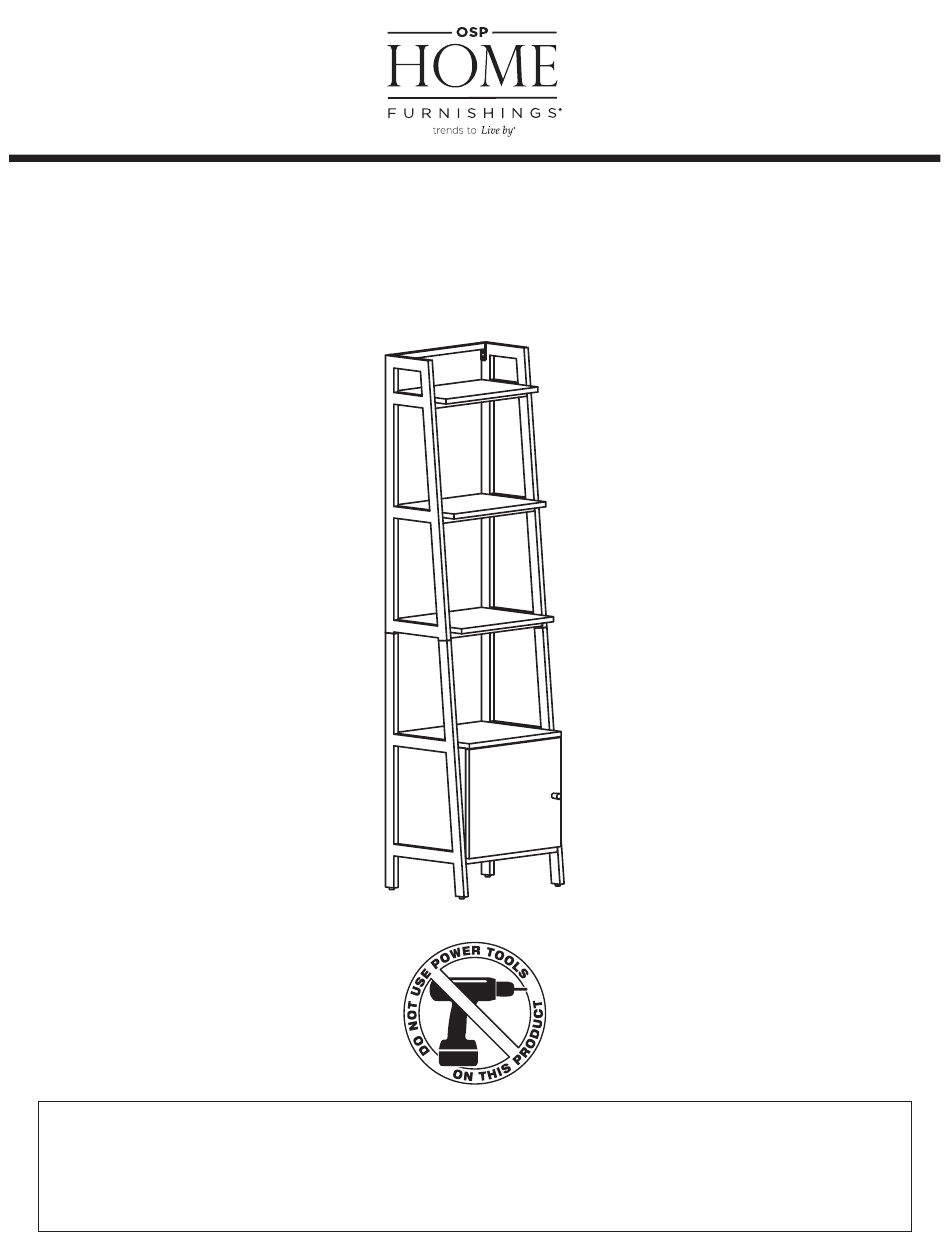

- Page 1 April, 2024 For easy assembly, please carefully follow the step by step instructions. LA72BK 72" LADDER BOOKCASE Assembly Instructions - Important: Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when assembling the unit and always set the parts on a clean, soft surface.
- Page 2 Friday 8:00 a.m. - 3:30 p.m. Pacific Time. To make a warranty claim, contact Parts Department. Provide model number, proof of purchase, description of the problem and obtain return authorization. At its option OSP Home Furnishings will: (a) Supply compatible components of current ®...
- Page 3 PARTS (A) Left Upper Frame (1 Pc) (B) Right Upper Frame (1 Pc) (C) Left Lower Frame (1 Pc) (D) Right Lower Frame (1 Pc) (E) Upper Crossbar (1 Pc) (F) Lower Crossbar (8 Pc) (G) Upper Shelf (1 Pc) (H) Shelf (1 Pc) (I) Lower Shelf (1 Pc) (J) Cabinet - Front Panel (1 Pc)
- Page 4 HARDWARE Phillips screwdriver also needed for assembly (not provided) DRAWING DESCRIPTION SIZE QUANTITY Glue 1 Pc Cam Lock 15 x 12mm 16 Pcs + 1 extra Cam Bolt 16 Pcs + 1 extra Wood Dowel 8 x 30mm 16 Pcs + 1 extra Flat Head Phillips Screw #4 x 30mm 16 Pcs + 1 extra...
- Page 5 CAM LOCK INSTALLATION Screw in Cam Bolt and fully tighten. Align hole in panel with Cam Bolt and attach. 180º Screw Cam Lock in. Turn clockwise until you feel Cam Lock securely fasten to Cam Bolt. Fully tighten Cam Lock.
- Page 6 STEP 1 FULLY TIGHTEN ALL SCREWS. STEP 2...
- Page 7 STEP 3 STEP 4...
- Page 8 STEP 5 FULLY TIGHTEN ALL SCREWS. STEP 6 FULLY TIGHTEN ALL BOLTS.
- Page 9 STEP 7 DO NOT TIGHTEN BOLTS UNTIL ALL BOLTS ARE INSTALLED. FULLY TIGHTEN ALL BOLTS.
- Page 10 STEP 8 STEP 9 OPTION 1 OPTION 2...
- Page 11 STEP 10 DO NOT FULLY TIGHTEN BOLTS. AFTER BOOKCASE(S) HAVE BEEN ATTACHED TO DESK, ADJUST ALL FLOOR LEVELERS SO THAT DESK AND BOOKCASE(S) ARE LEVEL, THEN FULLY TIGHTEN ALL BOLTS. OPTION 2 OPTION 1 FLOOR LEVELERS...
- Page 12 STEP 11 ANTI-TIP KIT INSTRUCTIONS Place Bookcase in desired location. Carefully drill a 1/4" pilot hole into wall, and gently tap Wall Anchor into pilot hole. Secure Bracket to wall using Long Screw. Fully tighten Long screw. Secure second Bracket to Upper Crossbar (E) using Short Screw. Fully tighten Short Screw.
