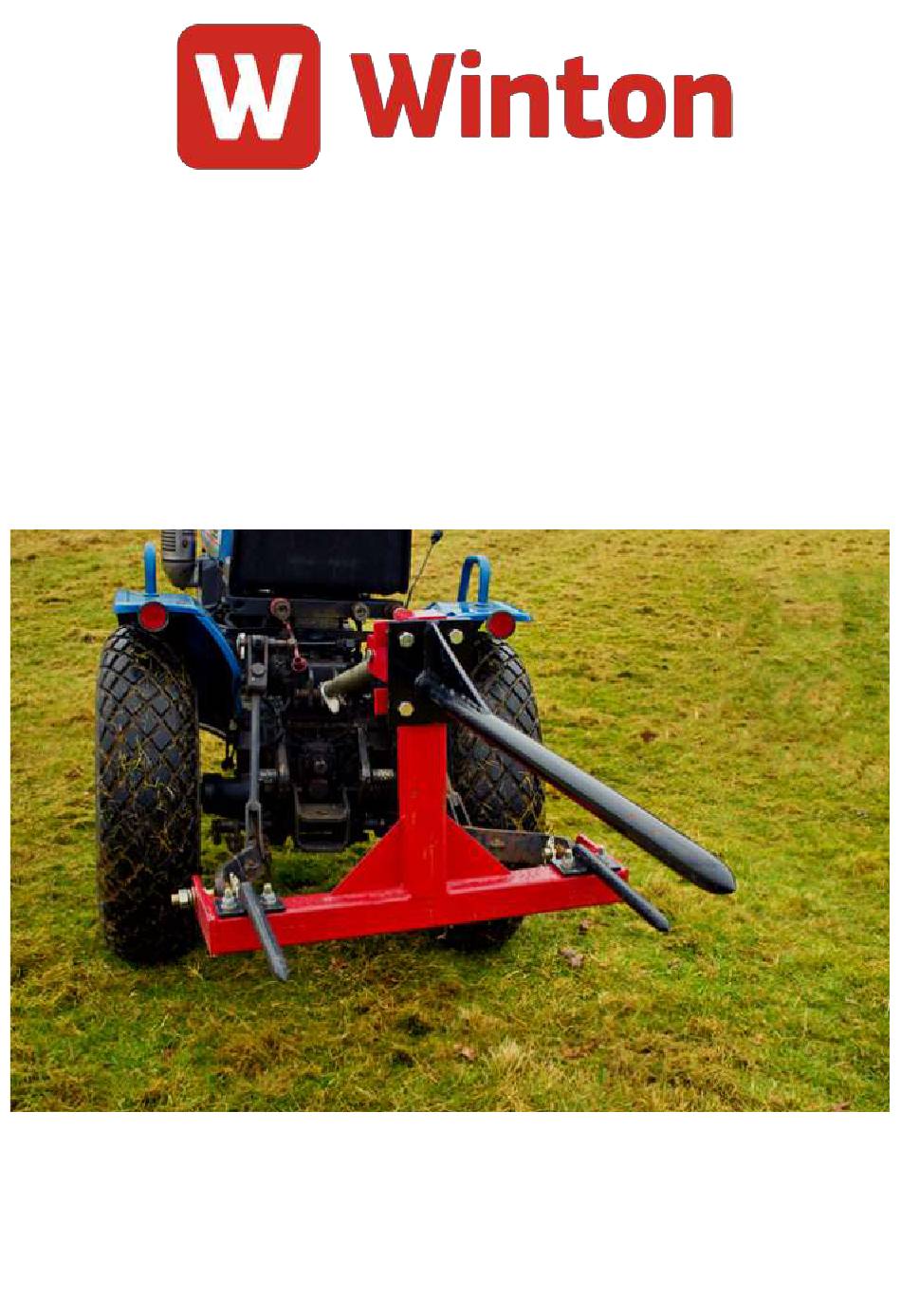

- Page 1 WINTON BALE SPIKE WBS SERIES OWNERS MANUAL PLEASE READ THIS MANUAL BEFORE OPERATING THE MACHINE...
- Page 2 This manual should be considered a permanent part of this machine and should remain with it even if the machine is subsequently sold. Winton continually seeks advancements in its product design and quality. Therefore, while this manual contains the most current product information available at the time of printing, there may be minor discrepancies between your machine and this manual.
-
Page 3: General Safety Information
Misuse: This machine is designed for use with compact tractors, and should be used only for the indicated purpose. Winton does not take responsibility if the machine is used for any other purpose. Children must not operate the machine under any circumstance. - Page 4 General Safety Information (Continued) Machinery Pre-Use Checks On receipt of your new Winton machine and again within the first 4 hours of use, or the ‘shake in’ period as we like to call it, we always recommend checking over the machine.
-
Page 5: Table Of Contents
Contents General Safety information Dimensions and Specifications Installation & Set Up Parts Diagram & List—WBS01 Parts Diagram & List—WBS02 Parts Diagram & List—WBS3H Winton Product Warranty 1. Dimensions & Specifications Model WBS01 WBS02 WBS3H Weight 35kg 69.5kg 77.5kg Bale Type... -
Page 6: Installation & Set Up
Attaching To Euro Front Loader Bracket Start by finding a flat piece of ground. Lower your front loader until the attachment’s hooks align with those on the front loader. Secure by passing a pin through the linkage holes. As shown below. Winton WBS... -
Page 7: Parts Diagram & List-Wbs01
3. Parts Diagram & List—WBS01 Dia No. Part Description Top large spike Lower small spike A frame unit Lower linkage pin Top linkage pin Top spike bolt & nut Lower spike bolt & nut Winton WBS... -
Page 8: Parts Diagram & List-Wbs02
4. Parts Diagram & List—WBS02 Dia No. Part Description Top small spike Lower large spike Main frame Lower linkage pin Top linkage pin Top spike bolt & nut Lower spike bolt & nut Winton WBS... -
Page 9: Parts Diagram & List-Wbs3H
5. Parts Diagram & List—WBS3H Dia No. Part Description Lower large spike Main frame Lower linkage pin Top linkage pin Lower spike bolt & nut Winton WBS... -
Page 10: Winton Product Warranty
We always strive to create great products, but when something does go wrong we have a strong network of resellers on hand throughout the UK to help out. Warranty Claims Before you get in touch here are 5 pieces of information your Winton reseller will need to progress your claim: •... - Page 11 Notes Winton WBS...
- Page 12 www.wintonmachinery.co.uk...
