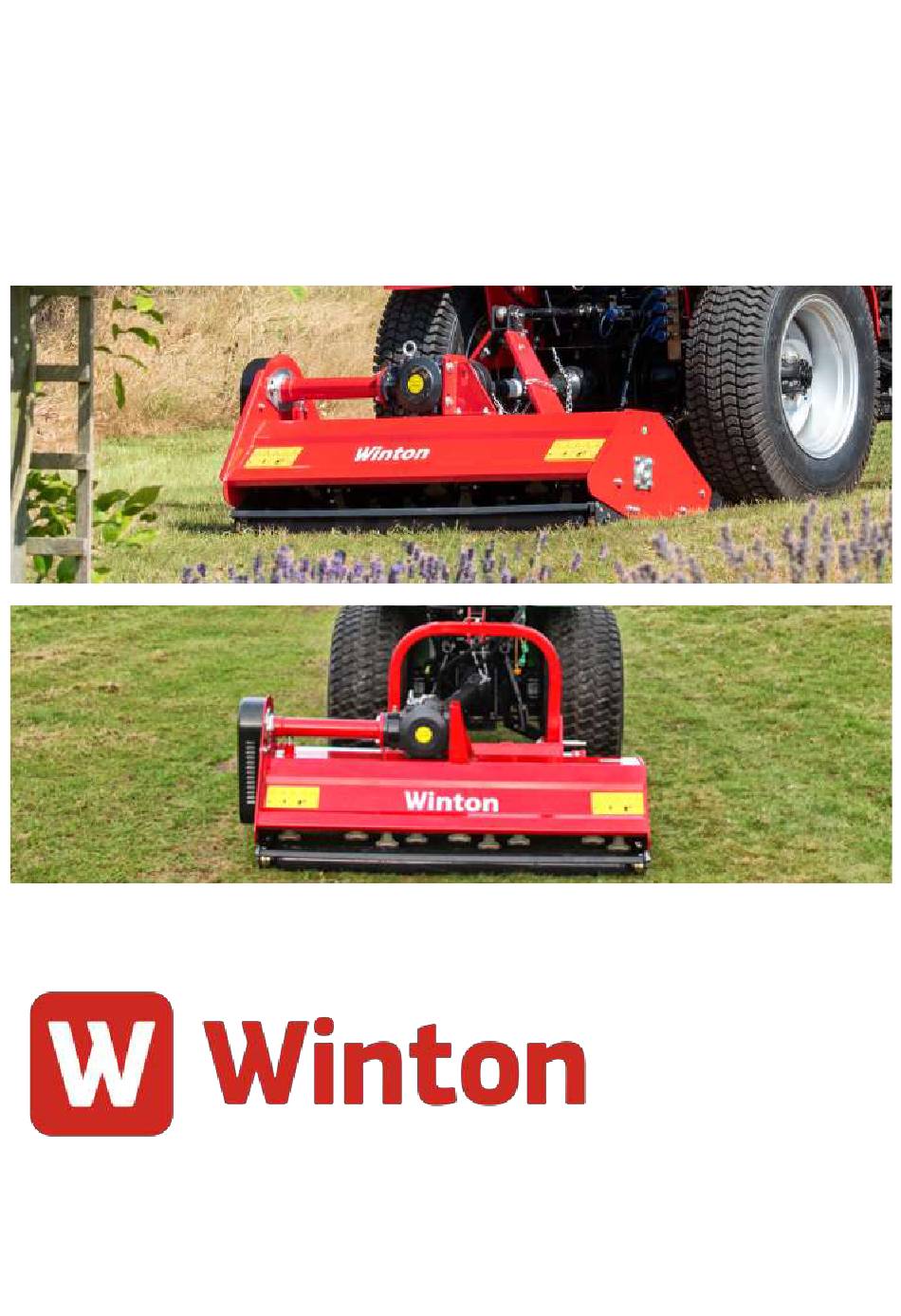

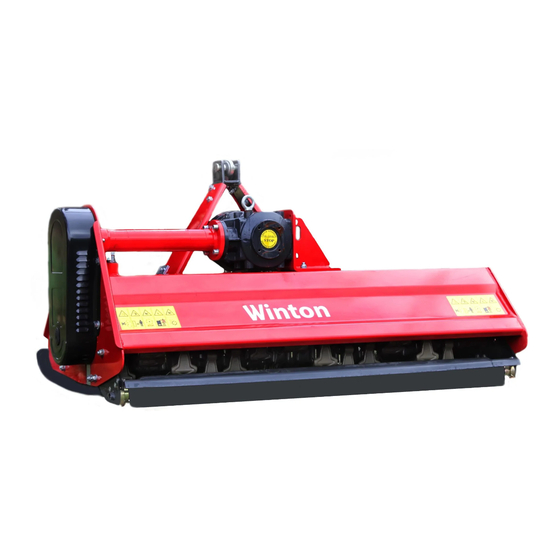

- Page 1 WINTON FLAIL MOWER WFL & WHF SERIES OWNERS MANUAL PLEASE READ THIS MANUAL BEFORE OPERATING THE MOWER...
- Page 2 This manual should be considered a permanent part of this machine and should remain with it even if the machine is subsequently sold. Winton continually seeks advancements in its product design and quality. Therefore, while this manual contains the most current product information available at the time of printing, there may be minor discrepancies between your machine and this manual.
-
Page 3: General Safety Information
Misuse: This machine is designed for use with compact tractors, and should be used only for the indicated purpose. Winton does not take responsibility if the machine is used for any other purpose. Children must not operate the machine under any circumstance. - Page 4 General Safety Information (continued) Machinery Pre-Use Checks On receipt of your new Winton machine and again within the first 4 hours of use, or the ‘shake in’ period as we like to call it, we always recommend checking over the machine.
-
Page 5: Table Of Contents
WHF Parts Diagram 4 WHF Parts List 4 27-29 WHF Parts Diagram 5 WHF Parts List 5 WHF Parts Diagram 6 WHF Parts List 6 (145/175) WHF Parts List 6 (200) Notes PTO Shaft Resizing Winton Product Warranty Trouble Shooting Winton WFL/WHF... -
Page 6: Dimensions And Specifications
1. Dimensions & Specifications WFL Series Model WFL105 WFL125 WFL145 WFL175 Weight 210kg 244kg 284kg 309kg Working Width 100cm 120cm 140cm 170cm Hammer Flail Type Number Of Flails Recommended Tractor HP 18-30hp 20-40hp 25-50hp 30-55hp Width 120cm 140cm 160cm 190cm... - Page 7 70-100cm Cutting Height 3-8cm 3-8cm 3-8cm Linkage Size Category 1 Category 1 Category 1 Number Of Drive Belts Hydraulics Required 1x Double acting spool 1x Double acting spool 1x Double acting spool Hydraulic Shift Distance 32cm 32cm 32cm Winton WFL/WHF...
-
Page 8: Installation & Set Up
Attach the chain to a secure point on the tractor/implement. Operate the flail mower the with tractor in low range gear and the PTO delivering 540 RPM. Winton WFL/WHF... - Page 9 Tension of the drive belt [Section 6] • Hydraulic fitting & operation (WHF only) [Section 7] • Lubrication/grease points [Section 8] • Tightness of all bolts, nuts and screws. • All protective guards are in place before operating. Winton WFL/WHF...
-
Page 10: Cutting Height Roller Adjustment
Adjust roller by aligning the selected hole in the roller support bracket at position 1 (using the hole closest to the ground gives the highest working height). Put bolt 1 into the selected hole and re-tighten bolts 1 and bolts 2. Winton WFL/WHF... -
Page 11: Cutting Height Skid Adjustment
Skid Adjustment Remove bolts and nuts 3 on the skids on the front & back of both sides of the machine. Move the skids up or down to the desired bolt hole height. Re-insert bolts and nuts 3. Winton WFL/WHF... -
Page 12: Gear Oil Change & Check
Remove filler/breather plug 2 and level plug 3. Add oil through the filler/breather plug hole 2 until it reaches/begins to weep from the level plug hole 3. Re-install both plugs 2 & 3 and reattach the PTO guard. Winton WFL/WHF... - Page 13 Bolt tension: Always make sure bolts are tightened correctly. The filler/level plug should be secure but not over tightened. Oil Change Log Oil Change #1 Oil Change #2 Oil Change #3 Oil Change #4 Oil Change #5 Oil Change #6 Winton WFL/WHF...
-
Page 14: Adjusting Belt Tension
A generic measure across machines is the belt should be able to twist a quarter turn by hand. Any more and they are too loose and any less and too tight, you may run the risk of losing drive to the mower or burning the belts out prematurely. Winton WFL/WHF... - Page 15 Ensure that the locking nuts are tightened to prevent the bolts working loose. Always use a straight edge to make sure the belt pulleys are in line and running true. If misaligned, call your dealer or service engineer for technical support. Winton WFL/WHF...
-
Page 16: Hydraulic Fitting & Operation (Whf)
Connect the hydraulic hoses from the machine to the tractor using the quick release couplings. Start your tractor and activate the hydraulics to test the connection. Check there are no leaks from the tractor or implement. Repair or replace if required. Winton WFL/WHF... - Page 17 Avoid suddenly changing the direction of hydraulic flow/the direction of the machine as this may cause excess pressure and damage to the machine/tractor. Hydraulic Side Shift Grease Points There are two grease points underneath the side shift bracket on the frame and two on the top. Winton WFL/WHF...
-
Page 18: Servicing & Maintenance
Apply grease to both of the rear roller bearings 2. There are easy to access grease points on the left and right of the roller on the outside of the brackets. Hydraulic ram for side shift x4 (WHF only) There are two grease points underneath on the side shift frame and two on the top. Winton WFL/WHF... - Page 19 Hydraulics: Check hydraulic pipes, connectors and RAMs for signs of leaks. Carry out repairs to hydraulic parts or replace as required. Check for damage to hydraulic hoses and replace. *The periods recommended are based on normal operating conditions. Severe or unusual conditions may require more frequent maintenance. Winton WFL/WHF...
-
Page 20: Wfl Parts Diagram
9. WFL PARTS DIAGRAM 1 Winton WFL/WHF... -
Page 21: Wfl Parts List
17-2 800990012 EF150.00.020 155-175 suspension bracket 701110026 EFR105.105 hook 503010759 DIN985-M6 M6 nut 501011089 GB5783-M6X20 M6x20 bolt 800920033 EF100.00.018 upper pin bracket 803440016 EF100.00.019 pin shaft 801240019 EFGC120.013 base plate 801160004 EFG120.018 supporting plate 703400008 FM120.00.199 PTO cover Winton WFL/WHF... - Page 22 GB97.1-8 M8 washer 501030185 GB70.3-M8X25 M8X25 bolt 44-1 801140004 EFG100.012 105 roller 44-3 801160017 EFG120.012 125 roller 44-5 801180004 EFG140.012 145 roller 44-8 801210004 EFG170.012 175 roller GB1152-89 M6 washer 509010008 GB1152-M8X1 M8X1 oil cup 801160001 EFG120.017 plate Winton WFL/WHF...
- Page 23 EF120.00.123 125 shaft for fender 59-5 700980005 EF140.00.123 145 shaft for fender 59-8 701010005 EF170.00.123 175 shaft for fender 503010762 DIN985-M10 701240011 EFGC120.106 plate 801240032 EFGC120.020 plate 501011128 GB5783-M12X40 bolt 701520006 EFG120.168 grease nipple cap 701520010 EFG120.169 gasket Winton WFL/WHF...
-
Page 24: Wfl Parts Diagram
11. WFL PARTS DIAGRAM 2 Winton WFL/WHF... -
Page 25: Wfl Parts List
125-175 shaft 507010086 GB1096-A-10X8X40 A10X40key 701240025 EFGC120.132 adapter sleeve 701240024 EFGC120.131 gasket 507010091 GB1096-A-10X8X70 A10X70 key 801240040 XH50.300Z.02 gearbox 10-1 801220004 EFGC100.018A 105 shaft cover 10-2 801240004 EFGC120.018A 125-175 shaft cover 506030037 GB93-12 12 washer 505011445 GB70.1-M12X35 M12X35 bolt Winton WFL/WHF... -
Page 26: Wfl Parts Diagram
13. WFL PARTS DIAGRAM 3 Winton WFL/WHF... -
Page 27: Wfl Parts List
GB13871-FB-55X80X8 FB55X80X8 oil seal 511040032 UC207 90207 UC207 rotor bearing 801140010 EFG100.013A 105 rotor 801160038 EFG120.013A 125 rotor 801180010 EFG140.013A 145 rotor 801210010 EFG170.013A 175 rotor 503010740 DIN985-M16X1.5 M16X1.5 nut 501014730 EFGC120.200A M16X1.5X85 bolt 701240010 EFGC120.104A hammer blade Winton WFL/WHF... -
Page 28: Whf Parts Diagram
15. WHF PARTS DIAGRAM 4 Winton WFL/WHF... -
Page 29: Whf Parts List
516010004 TDQ-12 bronze washer 501014706 GB3541-M12X1.25 bolt M12 701600001 EFGCH120.011 (1500) oil pipe 705380114 RK120.401 connector 703820055 QUICK-COUPLING-G1/2-G G1/2 quick coupling 28-2 701600030 EFGCH120.104 guide rail (L=1218) 28-3 701600031 EFGCH120.104A guide rail (L=1342) 701600005 EFGCH120.011A (1900) oil pipe Winton WFL/WHF... - Page 30 5 801160004 EFG120.018 roller support bracket (L) 506010037 GB96.1-12 washer 12 501011127 GB5783-M12X35 bolt M12 49-5 801180008 EFG140.024 145 scraper bar 49-8 801210008 EFG170.024 175 scraper bar 49-9 801130012 EFG200.024 200 scraper bar Winton WFL/WHF...
- Page 31 503010740 DIN985-M16X1.5 nut 16 801240022 EFGC120.014 right skid base 702420030 EF100.00.177 shaft cover sleeve 506030036 GB93-10 spring washer 10 506010036 GB96.1-10 washer 10 703400008 FM120.00.199 PTO guard cover 503010137 GB6173-M16X1.5 nut 16 501011905 GB5786-M16X1.5X50 bolt M16 Winton WFL/WHF...
-
Page 32: Whf Parts Diagram
17. WHF PARTS DIAGRAM 5 Winton WFL/WHF... -
Page 33: Whf Parts List
701240024 EFGC120.131 gasket 507010091 GB1096-A-10X8X70 A10X70 key 801240040 XH50.300Z.02 gearbox 145-175 gearbox 801380003 XH50.300Z.02-200 200 gearbox 10-2 801240004 EFGC120.018A 145-175 shaft cover EFGCH200.026A 10-3 801600032 200 shaft cover (L=640) EFGCHZ/M/H-200 506030037 GB93-12 12 washer 505011445 GB70.1-M12X35 M12X35 bolt Winton WFL/WHF... -
Page 34: Whf Parts Diagram
19. WHF PARTS DIAGRAM 6 Winton WFL/WHF... -
Page 35: Whf Parts List 6 (145/175)
21. WHF PARTS LIST 6 [200] Dia No. Number Part Number Part Description 702080005 G2-150.105 bush 510020397 CFW-60X85X8 FB60X85X8 oil seal 511040009 UC208 90208 bearing 802080080 EFG200.013A-G2 200 rotor 503010740 DIN985-M16X1.5 M16X1.5 nut 501014730 EFGC120.200A M16X1.5X85 bolt 701240010 EFGC120.104A hammer blade Winton WFL/WHF... -
Page 36: Notes
34. NOTES Winton WFL/WHF... -
Page 37: Pto Shaft Resizing
Shorten the equally long guard tubes to the same length as the driveline tubes. Grease the internal driveline tube. Fit the guard on the shaft. Make sure that the length allows for at least 16cm (6 inches) of overlap. Winton WFL/WHF... -
Page 38: Winton Product Warranty
We always strive to create great products, but when something does go wrong we have a strong network of resellers on hand throughout the UK to help out. Warranty Claims Before you get in touch here are 5 pieces of information your Winton reseller will need to progress your claim: •... -
Page 39: Trouble Shooting
Check power output on your tractor. Hydraulics leaking Tighten hydraulic fittings & connectors Hydraulic connectors Visit a tractor dealer for hydraulic converters (1/2” BSP) don’t fit Always consult your Winton dealer if you have any questions about your machine. Winton WFL/WHF... - Page 40 www.wintonmachinery.co.uk...
