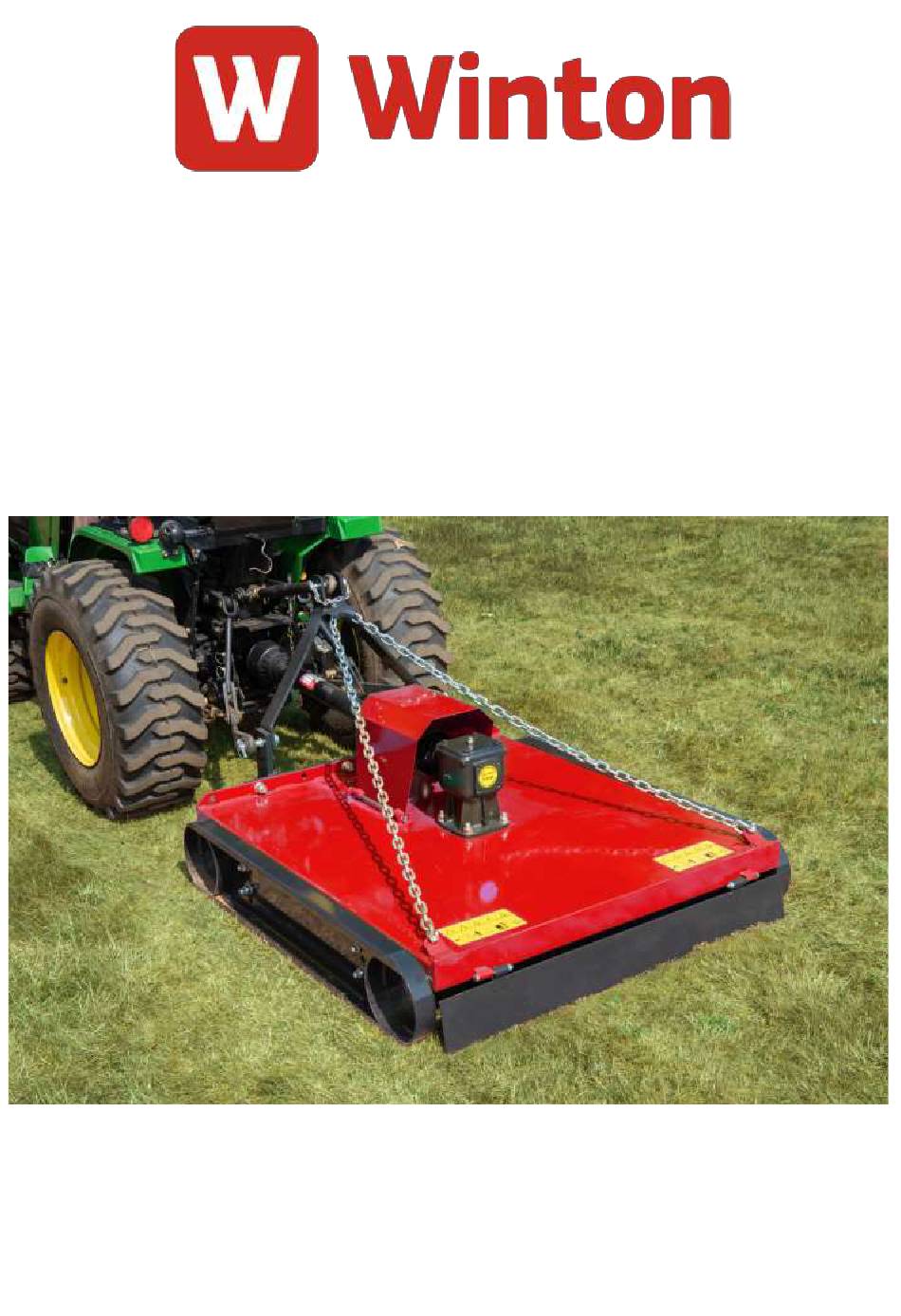

- Page 1 WINTON TOPPER MOWER WTM SERIES OWNERS MANUAL PLEASE READ THIS MANUAL BEFORE OPERATING THE MOWER...
- Page 2 This manual should be considered a permanent part of this machine and should remain with it even if the machine is subsequently sold. Winton continually seeks advancements in its product design and quality. Therefore, while this manual contains the most current product information available at the time of printing, there may be minor discrepancies between your machine and this manual.
-
Page 3: General Safety Information
Misuse: This machine is designed for use with compact tractors, and should be used only for the indicated purpose. Winton does not take responsibility if the machine is used for any other purpose. Children must not operate the machine under any circumstance. - Page 4 General Safety Information (Continued) Machinery Pre-Use Checks On receipt of your new Winton machine and again within the first 4 hours of use, or the ‘shake in period’, we always recommend checking over the machine. • Check all bolts, nuts and screws are tight on the unit.
-
Page 5: Table Of Contents
Cutting Height & Skid Adjustment Blade Replacement Gearbox Maintenance Servicing & Maintenance WTM 110/140/160 Parts Diagram WTM 110/140/160 Parts List 11-12 Notes WTM 180 Parts Diagram WTM 180 Parts List 15-16 PTO Shaft Resizing Winton Product Warranty FAQ’s & Troubleshooting Winton WTM... -
Page 6: Dimensions And Specifications
100cm 100cm PTO Shaft Size 70-100cm 70-100cm 70-100cm 80-120cm Cutting Height 5-25cm 5-25cm 5-25cm 5-25cm Linkage Size Category 1 Category 1 Category 1 Category 1 *Please note specifications are for indication and are subject to change without notice. Winton WTM... -
Page 7: Installation & Set Up
Set correct cutting height [Section 3]. Check blades [Section 4]. Check oil level in the gearbox [Section 5]. Lubricate all grease points [Section 6]. Check tightness of all bolts, nuts and screws. Ensure all protective guards are in place. Winton WTM... -
Page 8: Cutting Height & Skid Adjustment
Skid Adjustment Loosen bolts and nuts (1) on the skids on both sides of the machine. Move the skids up or down lining the bolt holes up at the desired height. Re-tighten bolts and nuts (1). Winton WTM... -
Page 9: Blade Replacement
Blade removal Loosen and remove blade bolts and nuts (1). Remove the old blades and replace with new ones. Replace and tighten blade bolts and nuts (1). Winton WTM... -
Page 10: Gearbox Maintenance
Add oil through the filler/breather (1) (if required). The oil should reach/begin to weep from level plug (2). Replace filler/breather plug (1) and level plug (2). Oil Change #1 Oil Change #2 Oil Change #3 Oil Change #4 Oil Change #5 Oil Change #6 Winton WTM... -
Page 11: Servicing & Maintenance
Storage: Store the machine in a dry, level area. Support the frame if necessary. Skids: Check the condition of the side skids and replace if worn. *The periods recommended are based on normal operating conditions. Severe or unusual conditions may require more frequent maintenance. Winton WTM... -
Page 12: Wtm 110/140/160 Parts Diagram
7. Parts Diagram 1 WTM110, WTM140, WTM160 Winton WTM... -
Page 13: Wtm 110/140/160 Parts List
Front support A frame 110 802340008 SL140.00.011 Front support A frame 140 802340008 SL140.00.011 Front support A frame 160 702340001 SL140.00.101 Chain rod 503010047 GB6170-M12 702340007 SL140.00.202 8*3 Chain 802440003 TM110.00.013 110 body 802450007 TM140.00.013 140 body 802460009 TM160.00.013 160 body Winton WTM... - Page 14 8. WTM Parts List 1 WTM110, WTM140, WTM160 (Continued) Dia No. Number Part Number Part Description 802440001 TM110.00.012 Adjusting skid 110 802450005 TM140.00.012 Adjusting skid 140 802460006 TM160.00.012 Adjusting skid 160 702440008 TM110.00.030 φ8*86 chain 110 702340043 SL140.00.030 φ8*102 chain 140 702460016 TM160.00.030...
-
Page 15: Notes
Notes Winton WTM... -
Page 16: Wtm 180 Parts Diagram
Parts Diagram 2 WTM180 Winton WTM... -
Page 17: Wtm 180 Parts List
GB/T 5783 M22 x 70 Blade bolt GB/T 97.1 22 Flat washer TM140-101 Bottom blade plate 180 DS120-251B Blade spacer TM110-019 Rear guard 180 GB/T 889.1 M10 Lock nut GB/T 5782 M10 x 100 Bolt Shackle A frame chain 180... - Page 18 GB/T 5783 M18 x 60 Bolt GB/T 97.1 18 Flat washer TM140-103 Lower link pin GB/T 889.1 M18 Lock nut TM110-011 180 body GB/T 97.1 10 Flat washer GB/T 97.1 24 Flat washer GB/T 889.1 M24 Lock nut Winton WTM...
-
Page 19: Pto Shaft Resizing
Shorten the equally long guard tubes to the same length as the driveline tubes. Grease the internal driveline tube. Fit the guard on the shaft. Make sure that the length allows for at least 16cm (6 inches) of overlap. Winton WTM... -
Page 20: Winton Product Warranty
We always strive to create great products, but when something does go wrong we have a strong network of resellers on hand throughout the UK to help out. Warranty Claims Before you get in touch here are 5 pieces of information your Winton reseller will need to progress your claim: •... -
Page 21: Faq's & Troubleshooting
Mow at 540 PTO RPM. Change into a lower gear on the tractor. Tractor loaded down by mower Clean off the mower. Check power output on your tractor. Always consult your Winton dealer if you have any questions about your machine. Winton WTM... - Page 22 Notes Winton WTM...
- Page 23 Winton WTM...
- Page 24 www.wintonmachinery.co.uk...
