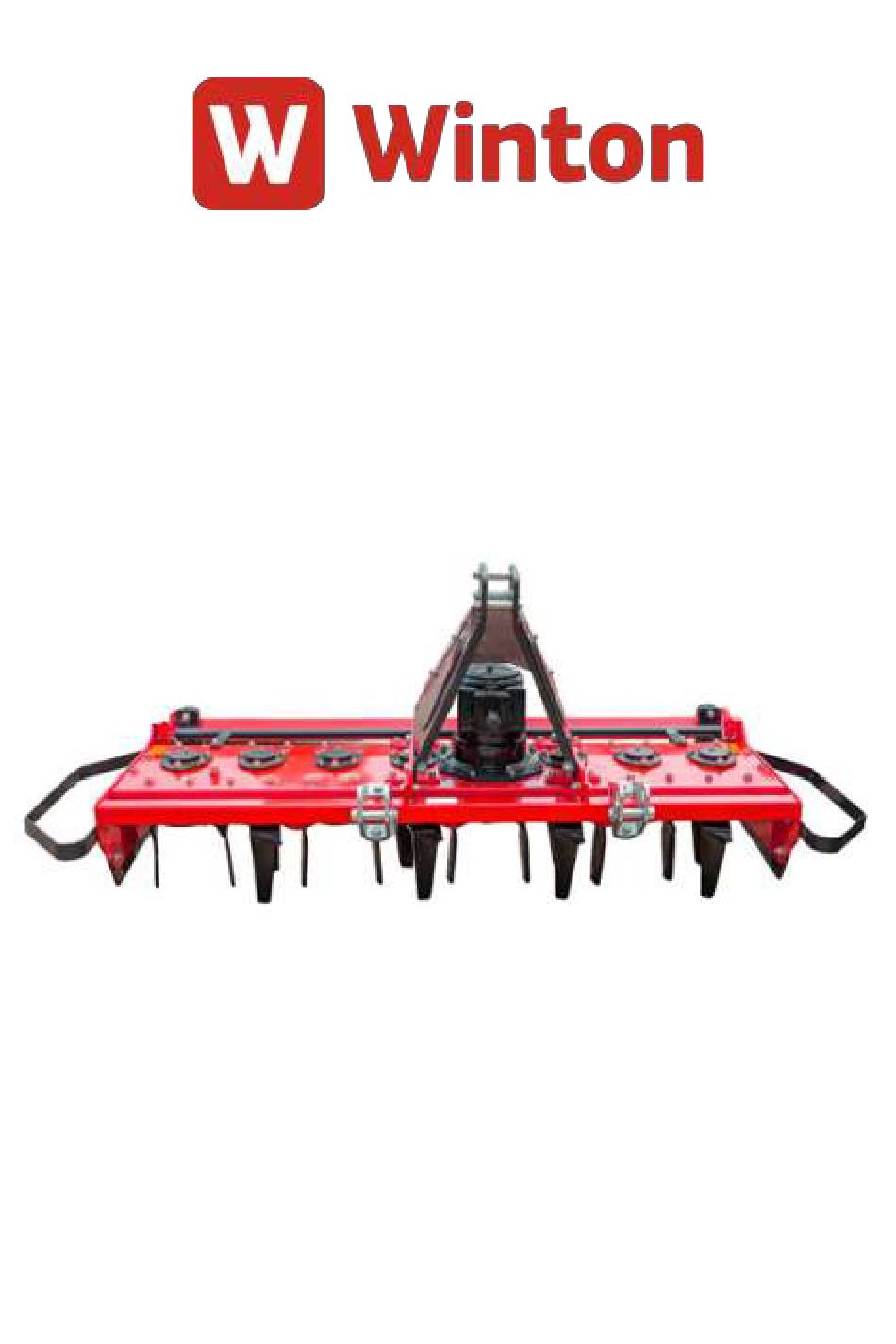

- Page 1 Owner Manual Winton Power Harrow WPH Series IMPORTANT: Read all instructions before using this attachment...
- Page 2 Congratulations on the purchase of your new attachment! Before you get started, we have provided a helpful space to jot down a few important details: Model number: WPH130 / WPH170 Serial number: Date of purchase: Factory reference: LXG130 / LXG170 This manual should be considered a permanent part of this attachment and therefore should remain with it even if the attachment is subsequently sold.
-
Page 3: Safety Information
Safety Information Before installation/maintenance, ensure both tractor and attachment are stationary, with the hydraulic lift system in a neutral position and the ignition key removed. Read and understand this manual fully before operating machinery. Failure to follow all safety standards can result in severe injury or death. This attachment is for use with compact tractors only. - Page 4 Safety Information (Continued) Attachment Pre-use Checks Upon receipt of attachment, and again within the first 4 hours of use: Check/tighten all bolts, nuts and screws (and those securing blades). Check the tension of any belt(s), and adjust if required. Apply grease to grease points if necessary. Tractor &...
-
Page 5: Table Of Contents
Blade Replacement……………………………………………………………………….page 8 Roller Adjustment…………………………………………………………………………page 9 Gearbox/Gear Reservoir Oil Change……………………………………...page 10-11 Servicing & Maintenance……………………………………………………..…page 12-13 Parts Diagrams & Parts Lists……………………………………………….….page 14-19 Blade Layout…………………..………………………………………………………..…page 20 Attaching & Resizing PTO Shaft……………………………………………………page 21 Winton Product Warranty……………………………………………………………page 23 Specifications Model: WPH130 WPH170 Weight: 274kg... -
Page 6: Installation
Installation Before installation/maintenance, ensure both tractor and attachment are stationary, with the hydraulic lift system in a neutral position and the ignition key removed. Position the tractor on flat ground, lower the tractor’s 3-point linkage to its lowest position, then attach the power harrow to the tractor using the 3-point linkage pins and linch pins. -
Page 7: Operating Instructions
Operating Instructions This power harrow is designed for tilling soil and preparing seed beds. Moisture remains in the soil since the soil is not turned up as it is tilled, and the vertically rotating cutters prevent soil compaction. Keep spectators at a safe distance (at least 10m away). Ensure the working area is clear of large stones/debris so the soil can be tilled correctly and to prevent damage/premature wear on the blades. -
Page 8: Blade Replacement
Blade Replacement Take care when handling blades, wear gloves and use suitable tools. Ensure the power harrow is supported and stable before carrying out any maintenance. Each blade carrier has the same directional blade; either 2x left blades or 2x right blades according to whether the carrier spins clockwise or anti- clockwise. -
Page 9: Roller Adjustment
Roller Adjustment Before installation/maintenance, ensure both tractor and attachment are stationary, with the hydraulic lift system in a neutral position and the ignition key removed. Adjust the working depth through the rear roller to suit different ground conditions. For dense/compact areas of soil, set the tiller at a higher setting to reduce the working depth. - Page 10 Gearbox Oil Change & Check Before installation/maintenance, ensure both tractor and attachment are stationary, with the hydraulic lift system in a neutral position and the ignition key removed. Do not mix old and new oils together, or mix different oil types. Always dispose of oils correctly and safely.
-
Page 11: Gearbox/Gear Reservoir Oil Change
Gear Reservoir Oil Change Before installation/maintenance, ensure both tractor and attachment are stationary, with the hydraulic lift system in a neutral position and the ignition key removed. The lubricant in the gear reservoir ensures each of the gears driving the blades work smoothly whilst reducing noise levels. -
Page 12: Servicing & Maintenance
Servicing & Maintenance Before installation/maintenance, ensure both tractor and attachment are stationary, with the hydraulic lift system in a neutral position and the ignition key removed. Store all lubricants away from excessive heat, dust, moisture and contaminants. Grease type: Multi-purpose lithium-based grease Grease frequency: Check every 4-8 hours (top-up if required) Greasing &... - Page 13 Servicing & Maintenance (Continued) Apply grease to each of the blade bearing units (B). There is a grease point on the top of each blade seat, and the number will vary dependent on machine width. Other Maintenance • Check condition of blades and replace if worn/broken, ensure blades are secure to avoid excessive vibration.
-
Page 14: Parts Diagrams & Parts Lists
Parts Diagram 1... - Page 15 Parts List 1 Diag Number Part Number Part Description 511022613 GB276-6207 Blade upper bearing 6207 706590024 LXG170.115 Big washer 506060188 GB893.1-72 Circlip 72 706590025 LXG170.116-1 Self locking nut M39x1.5 706590026 LXG170.118 Export gear 511022615 GB276-6209 Blade lower bearing 6209 510020641 GB13871-FB-50X68X10 Oil seal FB 50X68X10 706590023...
- Page 16 Parts List 1 (Continued) Diag Number Part Number Part Description 703140006 MZ105.130 Top pin bushing 501010763 GB5782-M12X100 Bolt M12x100 703740002 EF100.00.019-1 Top link pin 806590014 LXG170.029 A frame support (right) 706590017 LXG170.104 A frame guard 806590013 LXG170.028 A frame support (left) 501014760 GB5782-M16X45 Bolt M16x45...
- Page 17 Parts List 1 (Continued) Diag Number Part Number Part Description 501011159 GB5783-M16X45 Bolt M16x45 706590027 LXG170.122 Side shield 706590014 LXG170.101 Body bash bar 501011126 GB5783-M12X30 Bolt M12x30 706590008 RT150.107 U bolt 501011128 GB5783-M12X40 Bolt M12x40 706590020 LXG170.108 Bush 506010059 GB97.1-16 Washer 16 503010765 DIN985-M16...
- Page 18 Parts Diagram 2...
- Page 19 Parts List 2 Diag Number Part Number Part Description 510020412 CFW-40X80X12 Oil seal 40X80X12 506060191 GB893.1-80 Circlip 80 511016412 GB297-30208 Bearing 30208 703190197 1G-150.01.117-1 Transmission shaft 703190198 1G-150.01.118 Gearbox case 703070084 CBW-00-011 Breather plug 510015240 JB982-16 Oil bolt washer 703210001 1GN180.00.141 Small cone-shaped gear 511016492...
-
Page 20: Blade Layout
Blade Layout The power harrow has several blade seats, these are all geared and rotate alternating clockwise or anti-clockwise from the main drive blade seat (1) under the gearbox. Each blade carrier has the same directional blade fitted. So either 2x left blades or 2x right blades are bolted on dependent on whether the carrier spins clockwise or anti-clockwise underneath the machine. -
Page 21: Attaching & Resizing Pto Shaft
Attaching & Resizing PTO Shaft Before installation/maintenance, ensure both tractor and attachment are stationary with the ignition key removed. Ensure all safety guards are in place and cover the PTO shaft when extended, ensure the sprung locking collar slides freely and is securely in the groove on the PTO. -
Page 22: Winton Product Warranty
Terms & Conditions All products purchased as new are covered under our 12 month warranty from the date of purchase. During this period Winton will repair or replace defective parts free of charge. This warranty is given on the proviso that the product has been used and maintained according to the Owners Manual. - Page 23 Notes...
- Page 24 Published: August 2021...
