time, more cells (up to the MBS) can be sent at the PCR again.
CBR is for connections that support constant rates of data transfer. The only parameter you
need to worry about in CBR is PCR.
UBR is for connections that have variable traffic. The only parameter you need to worry about in
UBR is PCR.
rtVBR is for connections that, while having variable traffic, require precise timing between traffic
source and destination. PCR, SCR and MBS must all be set for rtVBR.
nrtVBR is for connections that have variable traffic, do not require precise timing, but still require
a set bandwidth availability. PCR, SCR and MBS must all be set for nrtVBR.

6.1.2 Encapsulation

Select the encapsulation protocol your ISP uses. The following section will vary depending
on which encapsulation protocol you select.

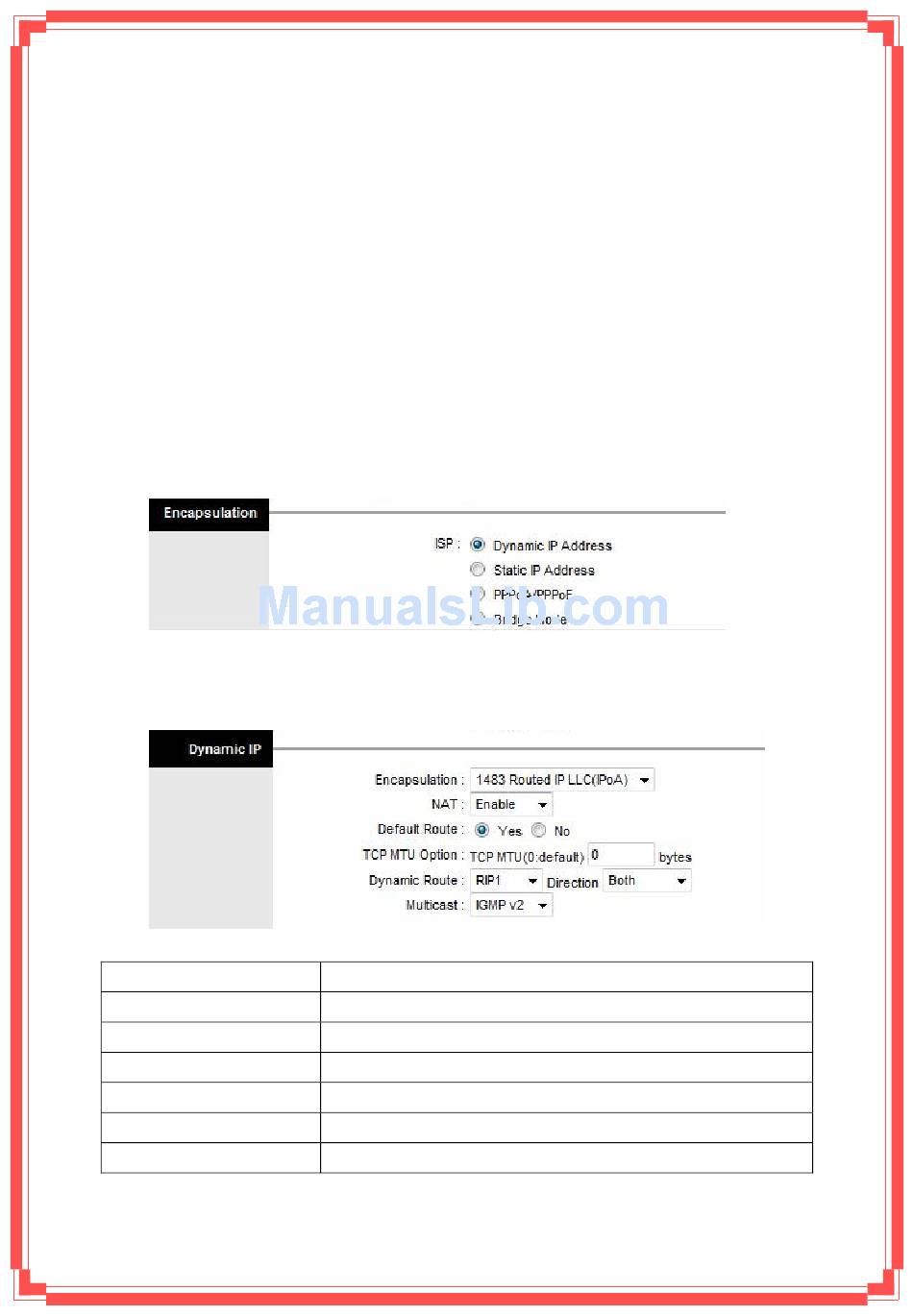

(1) Dynamic IP Address
Select this option if your ISP provides you an IP address automatically. Please enter the
Dynamic IP information accordingly.
The following table describes the labels in this screen.
LABEL
Encapsulation
NAT
Default Route
TCP MTU Option
Dynamic Route
Multicast
Select your encapsulation type from the dropdown list.
Select whether NAT is Enabled or Disabled.
Select whether this PVC will be the default route for Internet data.
Enter TCP MTU Value here
Select the RIP type and direction from the dropdown lists.
Select the multicast protocol you wish to use from the dropdown list.
DESCRIPTION
39
