Chapter 6 Cisco ASR 1006 Router Overview and Installation

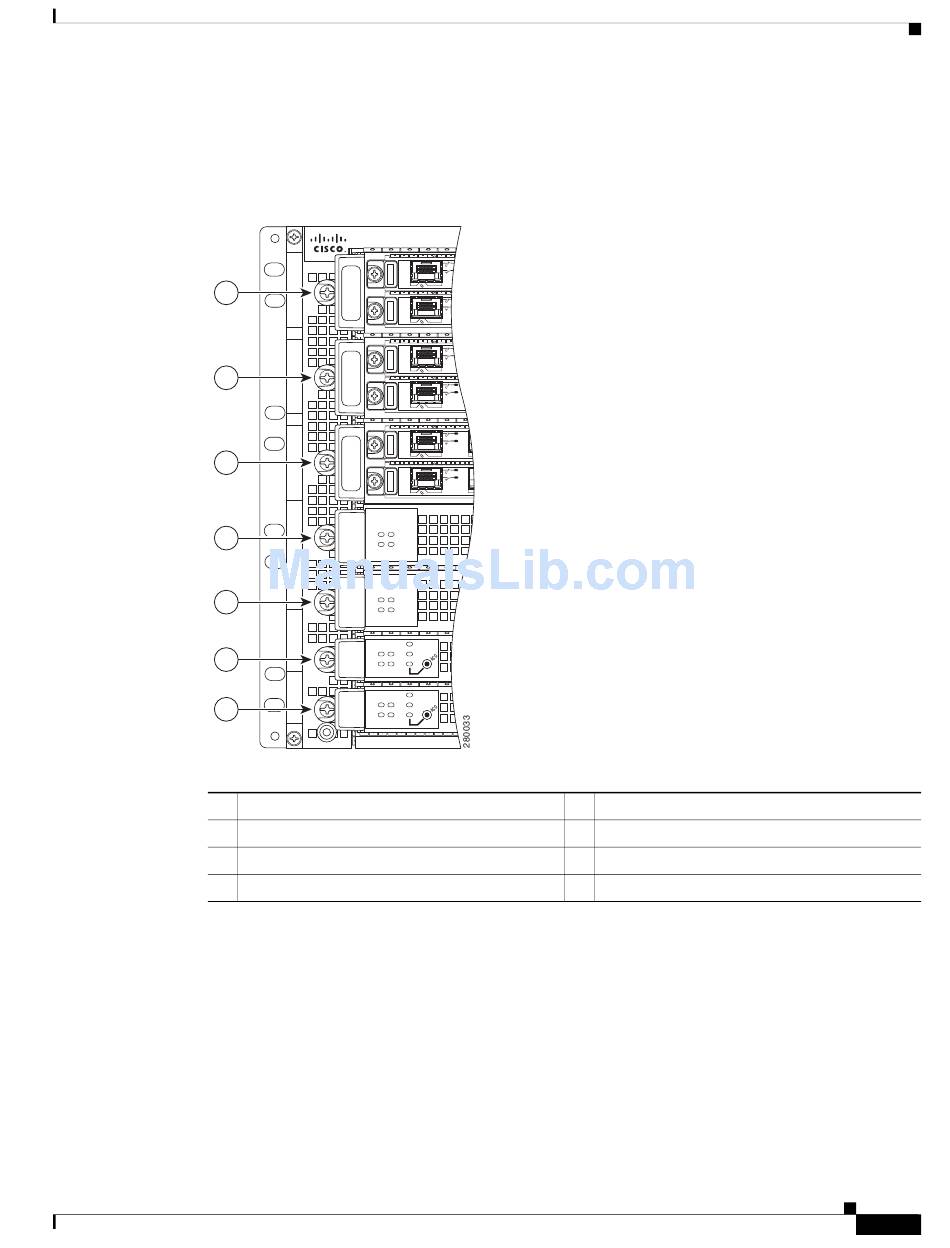

Cisco ASR 1006 Router Slot Numbering
The Cisco ASR 1006 Router is designed with each slot numbered as shown in
Figure 6-3
7
6
5
4
3
2
1
1
2
3
4
The Cisco ASR 1006 Router contains three Cisco ASR 1000 Series SPA Interface (SIP) supports four
subslots for the installation of SPAs.
OL-13208-09
Cisco ASR 1006 Router — Slot Numbering
2 2
1 1
0 0
PWR ACTV
STAT STBY
F1
ASR1000-ESP10
PWR ACTV
STAT STBY
F0
ASR1000-ESP10
CRIT
PWR ACTV MAJ
STAT STBY MIN
R1 R1 ASR1000-RP1
CRIT
PWR ACTV MAJ
STAT STBY MIN
R0 R0
ASR1000-RP1
Slot RP0 with ASR 1000 Series RP1
Slot RP1 with ASR 1000 Series RP1
Slot FP0 with ASR 1000 Series ESP
Slot FP1 with ASR 1000 Series ESP
Cisco ASR 1000 Series Aggregation Services Routers Hardware Installation Guide
Cisco ASR 1006 Router Description
5 ASR 1000 Series SIP slot 0
6 ASR 1000 Series SIP slot 1
7
ASR 1000 Series SIP slot 2
— —
Figure 6-3.
