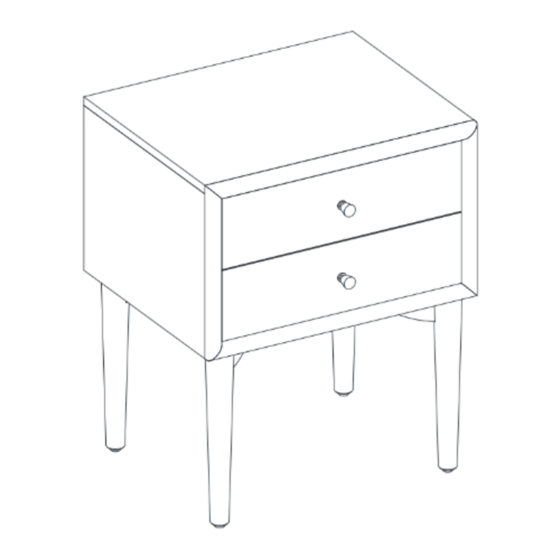

Bristol Nightstand
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our customer service number and have your instructions and
parts list ready to provide the model name, part name or factory number:
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
Stock # DJ1346679071111
ADULT ASSEMBLY REQUIRED
1-866-942-5362
www.whalenstyle.com
Or e-mail your request to parts@whalenfurniture.com
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2023-06-05
LOT NUMBER:
DATE PURCHASED:
Rev. 0001-A
/
/

Advertisement

loading
Need help?

Need help?

Do you have a question about the Dave Jenny Bristol DJ1346679071111 and is the answer not in the manual?

Questions and answers

Related Manuals for Better Homes and Gardens Dave Jenny Bristol DJ1346679071111

Summary of Contents for Better Homes and Gardens Dave Jenny Bristol DJ1346679071111

  • Page 1 LOT NUMBER: DATE PURCHASED: Bristol Nightstand Stock # DJ1346679071111 ADULT ASSEMBLY REQUIRED If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the store where it was purchased. Please call our customer service number and have your instructions and parts list ready to provide the model name, part name or factory number: 1-866-942-5362 Pacific Standard Time: 8:30 a.m.

  • Page 2: Special Note

    M A X I M U M R E C O M M E N D E D W E I G H T L O A D S MANUFACTURER: Whalen Furniture Manufacturing CATALOG: Bristol Nightstand MODEL: DJ1346679071111 MAXIMUM LOAD 22.7 kg / 50 lb MAXIMUM LOAD 9.1 kg / 20 lb THIS UNIT IS INTENDED ONLY FOR USE WITHIN THE MAXIMUM WEIGHTS INDICATED.
  • Page 3 Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. A- Cabinet (Qty. 1) B- Leg with Long Support Rail (Qty. 2) C- Leg with Short Support Rail (Qty. 2) D- Mending Plate (Qty.
  • Page 4 Assembly Instructions ① x 2 ② x 2 ③ x 2 DO NOT fully tighten the bolts or screws initially until all the bolts or screws are ready to assemble. To avoid causing damages to the thread, DO NOT over-tighten the bolts or screws. 1.
  • Page 5 Assembly Instructions ① x 2 ② x 2 ③ x 2 4. Repeat the same procedure to attach the other Legs (C).
  • Page 6 Assembly Instructions ① x 4 ② x 4 ③ x 4 5. Align and attach the Mending Plate (D) at the joints where the Legs (B and C) meet with each other. Insert four 45 mm Bolts (1) with the Lock Washer (2) and Flat Washer (3) through the Mending Plate (D) and top rails of the Legs (B and C) and screw into the bottom panel of the Cabinet (A).
  • Page 7 Assembly Instructions ⑤ x 2 ④ x 2 6. Stand the assembled unit upright on a flat surface. 7. Attach two Knobs (4) to the front of drawer with two 35 mm Knob Bolts (5).
  • Page 8 Assembly Instructions Tools required (not included): Phillips screwdriver, stud finder, tape measure, pencil, power drill and 1/8” drill bit. 8. Adjust the Floor Levelers pre-attached under the Legs (B and C) to level the unit against a wall. 9. Now, follow the instructions printed on the plastic bag containing the Tipping Restraint Hardware to attach the tip-over restraints to the unit and the wall.
