Summary of Contents for Better Homes and Gardens dave jenny Parkridge DJ1346679071106
Page 1

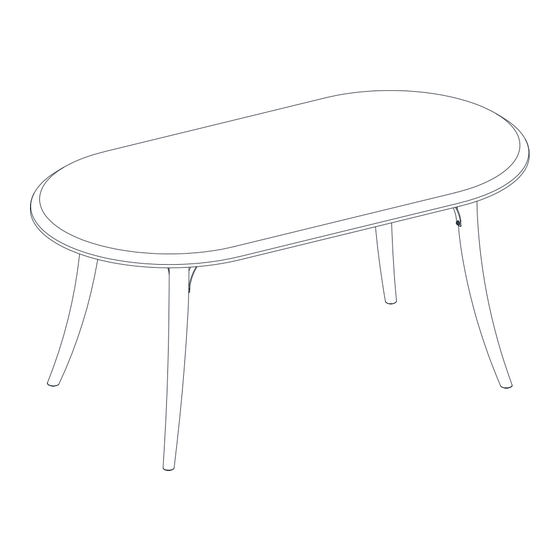

LOT NUMBER: DATE PURCHASED: Parkridge Dining Table Stock # DJ1346679071106 ADULT ASSEMBLY REQUIRED If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the store where it was purchased. Please call our customer service number and have your instructions and parts list ready to provide the model name, part name or factory number: 1-866-942-5362 Pacific Standard Time: 8:30 a.m.
Page 2
M A X I M U M R E C O M M E N D E D W E I G H T L O A D S 1. Maximum load weight 181.4 kg (400 pounds). THIS UNIT IS INTENDED ONLY FOR USE WITHIN THE MAXIMUM WEIGHTS INDICATED.
Page 3
Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. A- Table Top (Qty. 1) B- Leg (Qty. 4) C-Curved Stretcher A (Qty. 4) D- Curved Stretcher B (Qty. 4) (1) 5/16 X 20 mm Bolts Touch-up Pen Ratchet Wrench...
Page 4
Assembly Instructions ① x 2 DO NOT fully tighten the bolts or screws initially until all the bolts or screws are ready to assemble. To avoid causing damages to the thread, DO NOT over-tighten the bolts or screws. 1. Unpack the unit and confirm that you have all the hardware and required parts listed. Assemble the unit on a carpeted floor or the empty carton to avoid any scratch.
Page 5
Assembly Instructions ① x 6 4. Attach the Curved Stretchers (C and D) between the Leg (B) and top metal frame with six 20 mm bolts (1). Make sure that the outer edges are flush with each other. Tighten the bolts with the provided ratchet wrench.
Page 6
Assembly Instructions Floor leveler 6. Ask for assistance to lift the unit upright and position it at the desired location. 7. If necessary, adjust the pre-attached floor levelers at the bottom of Legs (B) to level the unit.
Care and Maintenance Use a soft, clean cloth that will not scratch the surface when dusting. Use of furniture polishes is not necessary. Should you choose to use polishes, test first in an inconspicuous area. Using solvents of any kind on your furniture may damage the finish. ...
Page 8
NÚMERO de LOTE:__________ FECHA de COMPRA: Mesa para comedor Parkridge Serie # DJ1346679071106 ENSAMBLE REQUERIDO POR ADULTO Si tienen alguna pregunta acerca del ensamble o si alguna parte está faltante, no retorne esté producto a la tienda donde lo compro. Por favor llame a nuestro departamento de ayuda al cliente teniendo su instructivo y lista de partes para proveer el modelo, nombre de parte o el número de fábrica: 1-866-942-5362 Hora estándar del Pacífico: 8:30 a.m.
Page 9
M Á X I M O P E S O R E C O M E N D A D O 1. Carga máxima de 181.4 kg (400 libras). ESTA UNIDAD DEBE UTILIZARSE CON LOS PESOS MÁXIMOS INDICADOS. SI SE EXCEDE EL PESO MÁXIMO, PODRIA RESULTAR EN UNA INESTABILIDAD DE LA UNIDAD CAUSANDO POSIBLES LESIONES.
Page 10
Lista de partes y material de ferretería Por favor lea completamente las instrucciones y verifique que estén todas las partes y partes de ferretería antes de iniciar el ensamblado. A- Tapa de la mesa (Cant. 1) B- Pata (Cant. 4) C-Soporte redondo A (Cant.
Page 11
Instructivo de ensamble ① x 2 NO apriete los pernos y tuercas hasta que todos los pernos y tuercas estén listos para el ensamble. Para evitar daños a la rosca, NO sobre apriete los pernos y tuercas. 1. Desempacar la unidad y confirmar que se tiene todo el material de ferretería y partes requeridas. Ensamblar la unidad en un piso alfombrado o en el cartón vacío para evitar rasguños.
Page 12
Instructivo de ensamble ① x 6 4. Adjuntar los soportes redondos (C y D) entre las patas (B) y el marco superior de metal con 6 pernos de 20 mm (1). Asegurar de que los bordes exteriores estén nivelados los unos con los otros. Apretar los pernos con la llave trinquete.
Page 13
Instructivo de ensamble Nivelador de piso 6. Pedir asistencia para poner la unidad en posición vertical y cerca del lugar final. 7. Si fuera necesario, ajustar los niveladores pre-adjuntados en la parte inferior de las patas (B) para nivelar la unidad.
Mantenimiento y Cuidados Use una toalla suave y limpia para evitar daños y rayaduras. Uso de cera para pulir muebles no es necesario. Si desea usar cera, pruébela en un área que no sea visible para revisar su funcionamiento. ...
