Summary of Contents for Hisense BI62020ABGUK

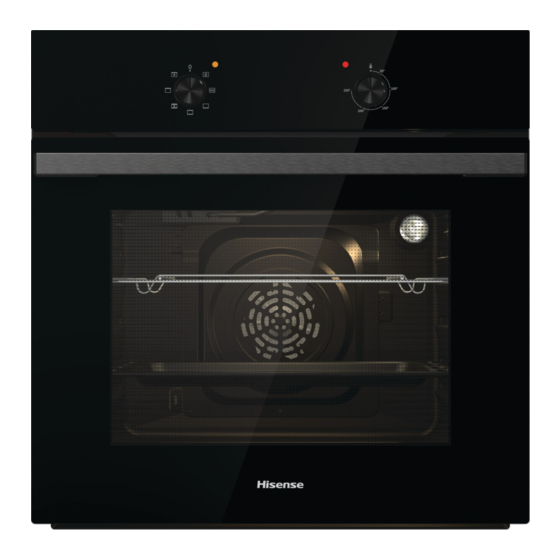

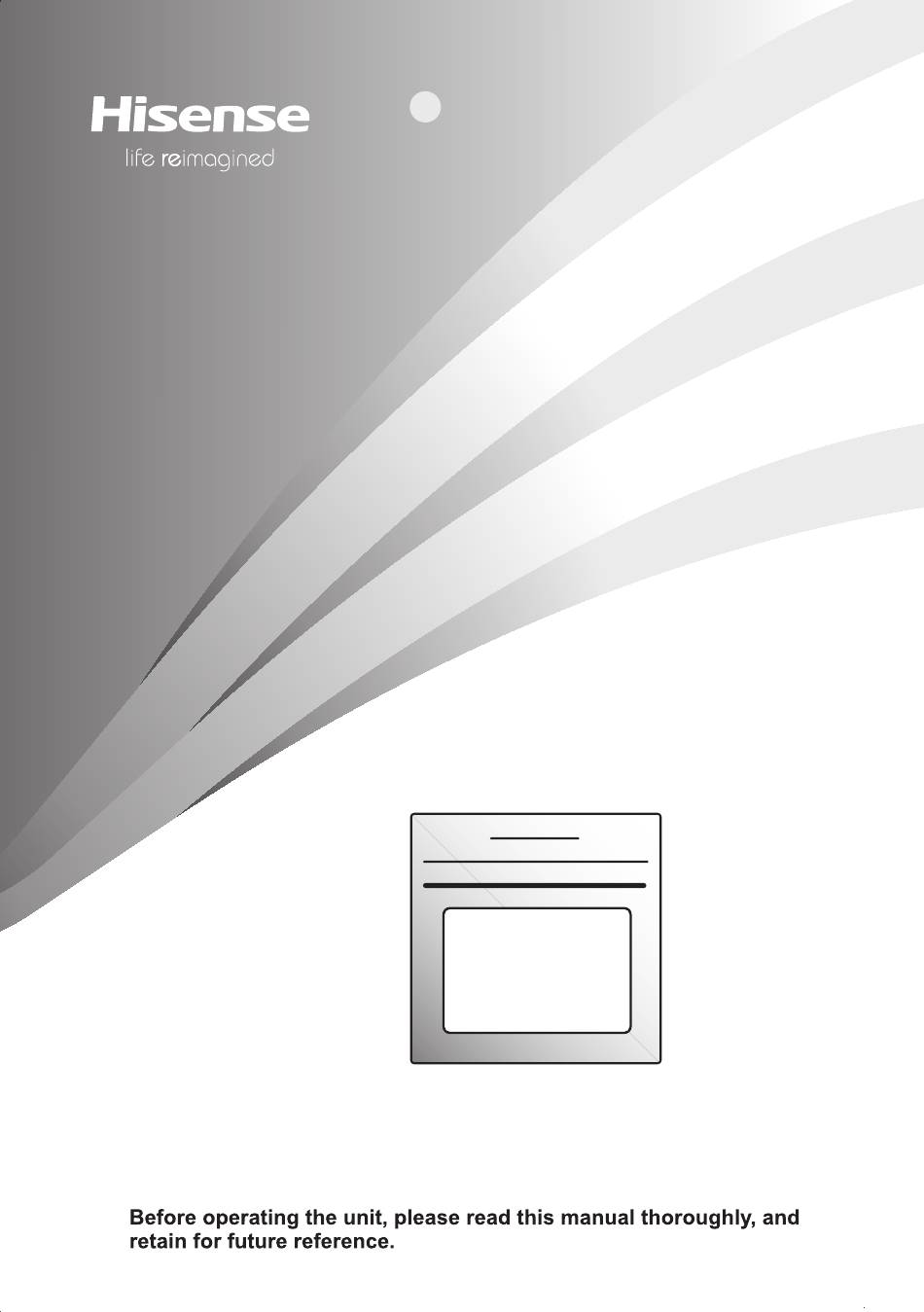

- Page 1 User and Installation Manual Built-in Electric Oven MODEL NO.: BI62020ABGUK...
- Page 2 WARNING The appliance is not to be used by persons (including children) with reduced physical, ● sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. children being supervised not to play with the appliance.
- Page 3 WARNING Children less than 8 years of age shall be kept away unless continuously supervised. ● This appliance can be used by children aged from 8 years and above and persons with ● reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 4 DEAR CUSTOMER The oven is exceptionally easy to use and extremely efficient.After reading the instruction manual,operating the oven will be easy. Before being packaged and leaving the manufacturer,the oven was thoroughly checked with regard to safety and functionality. Before using the appliance,please read the instruction manual carefully. By following these instructions carefully you will be able to avoid any problems in using the appliance.
-
Page 5: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS…………………………………..……………………1 HOW TO SAVE ENERGY …..………..………..………..………..…..……….3 DESCRIPTION OF THE APPLIANCE …………………………………………4 INSTALLATION ……………………………………………………………..………6 OPERATION ……………………………………………………………..………8 CLEANING AND MAINTENACE ……………………………..……………10 O P E R AT I O N I N C A S E O F E M E R G E N C Y …... -
Page 6: Safety Instructions
SAFETY INSTRUCTIONS NOTE: Ensure there is a grounded socket nearby (behind the unit) A dedicated power circuit is recommended for the unit but not required. Additional electrical appliances on the same circuit may exceed the current(amperage)rating for that circuit. If after the installation of your unit. the circuit breaker trips or the fuse fails on a repeated basis,then a dedicated circuit will likely be required. - Page 7 The rules and provisions contained in this instruction manual should be ● strictly observed. Do not allow anybody who is not familiar with the contents of this instruction manual to operate the cooker. The cooker should not be cleaned using steam cleaning equipment. ●...
-
Page 8: How To Save Energy
HOW TO SAVE ENERGY Using energy in a respon- sible way not only saves money but also helps the environment. So let' s save energy! And this is how you can do it: Do not uncover the pan too often( a watched pot never boils!) Do not open the oven door unnecessarily often. -
Page 9: Description Of The Appliance
DESCRIPTION OF THE APPLIANCE 5 Orange function operation signal light... - Page 10 SPECIFICATIONS OF APPLIANCE...
-
Page 11: Installation
INSTALLATION ● The kitchen area should be dry and aired and equipped with efficient ventillation. When installing the oven, easy access to all control elements should be ensured. This is a built- in oven, and its back wall and one ●... - Page 12 Warning! All electrical work should be carried out by a suitably qualified and authorised eletrician.No alterations or wilful changes in the electricity supply should be carried out. Fitting guidelines The oven is manufactured to work with three- phase alternating current(220V-240V/ 50Hz).The connection diagram is also found on the cover of the conncction box.
-
Page 13: Operation
OPERATION Before first use ●Remove packaging,clean the interior of the oven and the hob. ●Take out and wash the oven fittings with warm water and a little washing-up liquid. Switch on the ventilation in the room or open a window. ●Heat the oven (to a temperature of 250℃, for approx,30 min.),remove any stains and wash carefully;the heating... - Page 14 Fan,bottom and top heaters on At this knob position the oven executes the cake function . Conventional oven with a fan. Fan and combined grill on. When the knob is turned to this position,the oven activates the combined grill and fan function.
-
Page 15: Cleaning And Maintenace
CLEANING AND MAINTENANCE By ensuring proper cleaning and mainte- Caution! nance of your cooker you can have a sig- Do not use cleaning products contain- ing abrasive materials for the cleaning nificant influence on the continuing fault-free and maintenance of the glass front operation of your appliance. - Page 16 Replacement of the oven light bulb In order to avoid the possibility of an electric shock ensure that the appliance is switched off before replacing the bulb. ! Set all control knobs to the position”●”/”0” and disconnect the mains plug, ! unscrew and wash the lamp cover and then wipe it dry.
- Page 17 Removing the doors Remove the inner glass panel The oven door is fully open。 Glass door has two plastic fixed blocks.Use a slotted screwdriver to insert into the hole of the plastic fixed block and gently pry it. The latch hinges completely lifted。 .
-
Page 18: O P E R At I O N I N C A S E O F E M E R G E N C
OPERATION IN CASE OF EMERGENCY In the event of an emergency, you should: ! Switch off all working units of the cooker ! Disconnect the mains plug ! Call the service centre ! Some minor faults can be fixed by referring to the instructions given in the table check the household The appliance does not Break in power supply... -
Page 19: Technical Data
TECHNICAL DATA 220V-240V~; 50/60Hz Voltage rating max. 2.9kw Power rating 595/ 530/ 595 mm Cooker dimensions W/D/H 60 liters Usable capacity of the oven on the energy label Energy rating Approx. 26.5kg Weight...
Need help?
Do you have a question about the BI62020ABGUK and is the answer not in the manual?
Questions and answers
I have just installed my oven and switched it on but it won’t warm up the **** is on though ??
Your Hisense BI62020ABGUK oven may not be warming up due to the following reasons:
1. Incorrect Operation Steps – The oven requires four steps to start:
- Rotating the Dial Selector for the desired function.
- Turning the Temperature Dial to the required heat.
- Pressing the Time Display.
- Pressing the Start/Stop Selector.
Ensure you have completed all these steps correctly.
2. Temperature Indicator – The oven requires time to reach the set temperature. You need to wait for the ‘beep’ sound before placing food inside.
3. Control Visibility Issues – The function indicators are small and not illuminated, making them hard to see. Double-check that the correct settings are applied.
4. Possible Technical Fault – If all steps are correctly followed and the oven still does not heat up, there may be a technical issue. Hisense offers engineer support, but there could be delays in service availability.
If the issue persists, consider contacting customer support or checking for warranty options.
