Invacare® LiNX
NOTICE!
If you touch the connector pins, they can become dirty or
they can be damaged by electrostatic discharge.
— Do not touch the connector pins.
NOTICE!
There are no user-serviceable parts inside any case.
— Do not open or disassemble any case.
1.7 Intended Use
The IDC can be used to assign control of the power wheelchair from
the occupant to an attendant. The IDC is not suitable for the
wheelchair occupant himself. The attendant walks behind or to the
side of the wheelchair, and can intuitively determine speed and
direction of movement by pressing a handle with minimum force.
Adjustments can also be made to the wheelchair using dedicated
programming. Once the attendant activates the IDC, he takes over
complete responsibility for the wheelchair and its occupant.
4

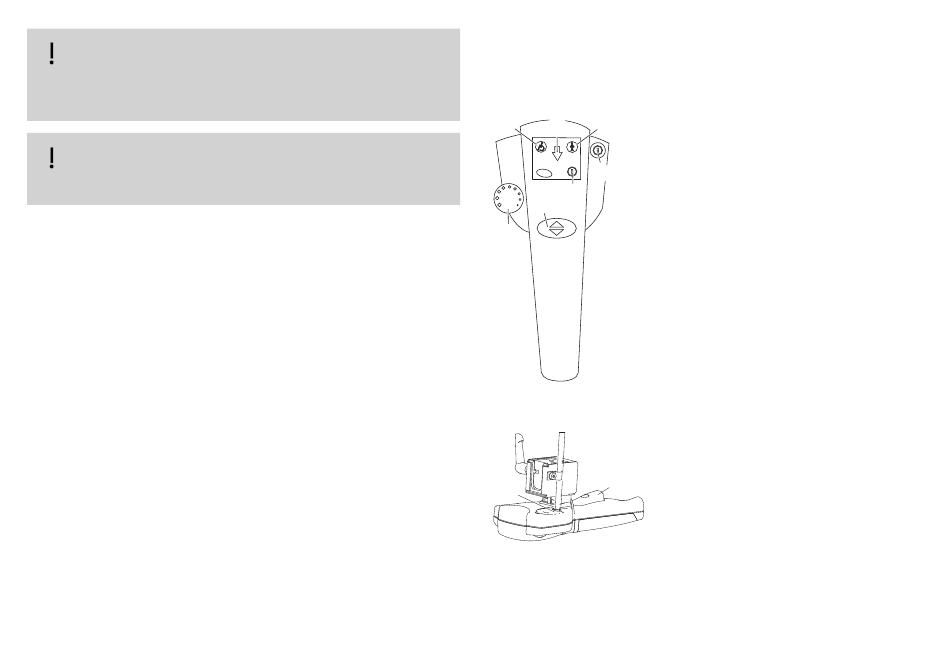

1.8 Components
Top Side
A "Reverse activated" LED
B D
A
B "Wheelchair occupant in control" LED
E
F
C Speed potentiometer
G
D "Attendant in control" LED
C
E "Power button"
F Status LED
H
G "Forwards or reverse" push button
H Steering handle
Bottom Side
A
A
B
B Bus cable
Trigger lever for driving /
emergency stop
