X200 Input Monitor
Expansion Module
The ADC-AC-X200 expansion module provides a solution
for controlling sixteen additional inputs. Two Form-C
relay outputs may be used to control locking hardware
or other devices. Three dedicated inputs are provided
for Tamper, AC Fail, and Battery Fail. Input circuits
can be configured as unsupervised or supervised using
end-of-line resistors. Communication to the X1100
Door Controller is accomplished using a 2-wire RS-485
interface. The ADC-AC-X200 requires 12-24 VDC for

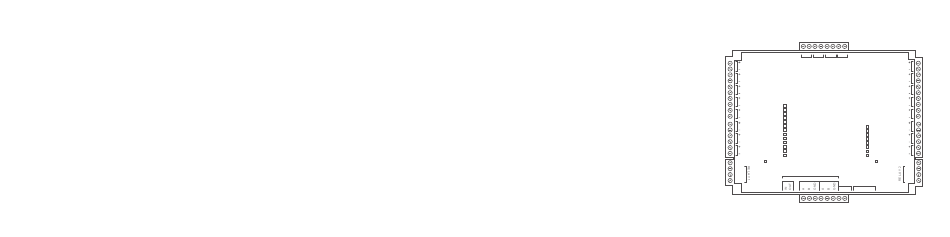

power. See the following figure for component location.
+
-
+
-
+
-
-
+
TAMPER
AC
BATT
12 - 24
IN 1
IN 9
FAIL
FAIL
VDC
IN 2
IN 10
IN 3
IN 11
IN 4
IN 12
ONLINE
COMM
IN 5
IN 13
BATT FAIL
AC FAIL
TAMPER
IN 6
IN 1
IN 9
IN 14
IN 2
IN 10
IN 3
IN 11
IN 7
IN 15
IN 4
IN 12
IN 5
IN 13
IN 6
IN 14
IN 8
IN 16
IN 7
IN 15
IN 8
IN 16
RELAY 1
RELAY 2
NOT USED
NOT USED
NO
NO
C
C
IO MODULE
NC
TERM
IN
OUT
NC
12-24
VDC
DIP SWITCH
-
+
1 2 3 4 5 6 7 8
1
