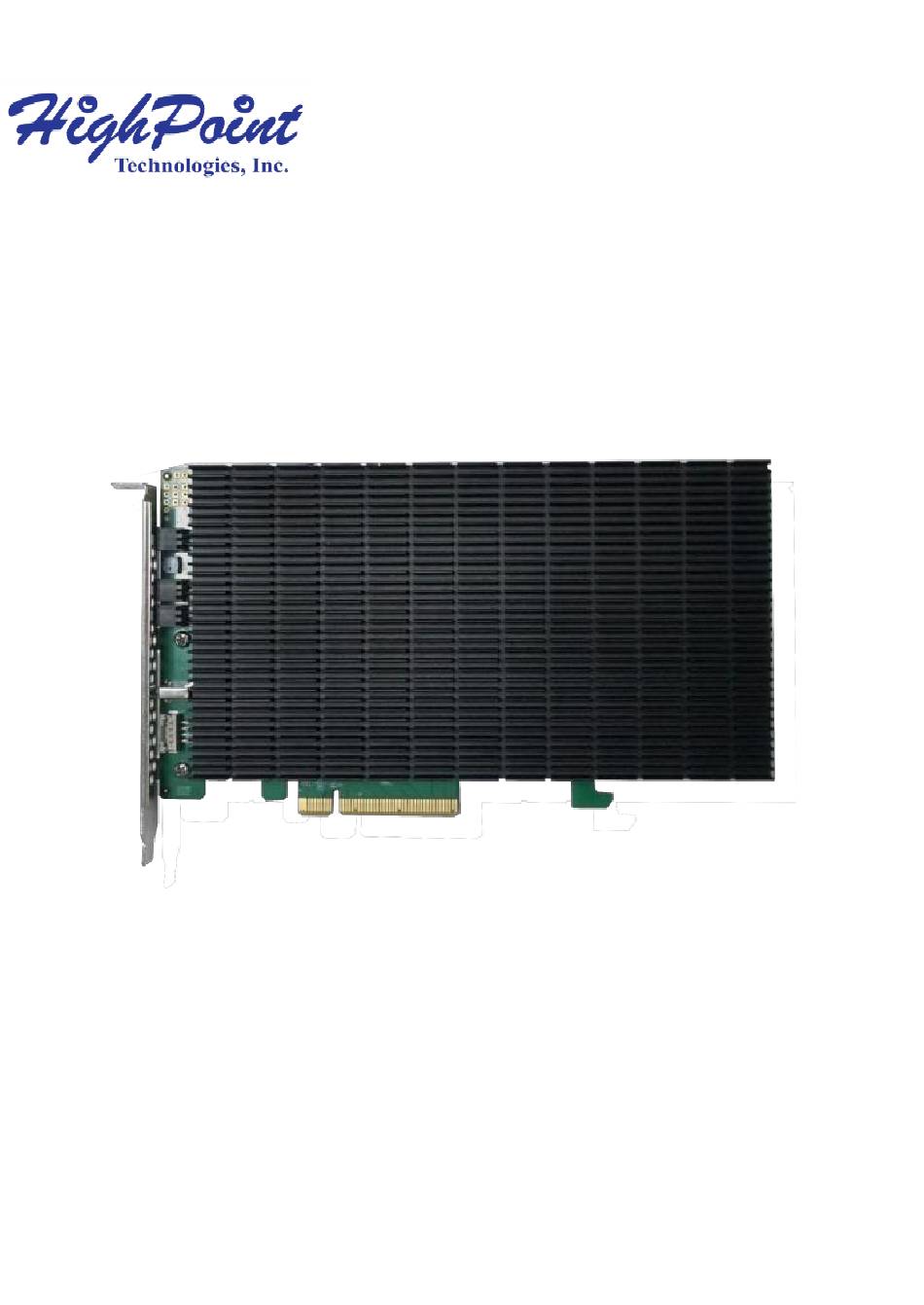

- Page 1 SSD6204A 4x M.2 Port to PCIe 3.0 x8 NVMe RAID Controller Quick Installation Guide V1.04...
-
Page 2: System Requirements

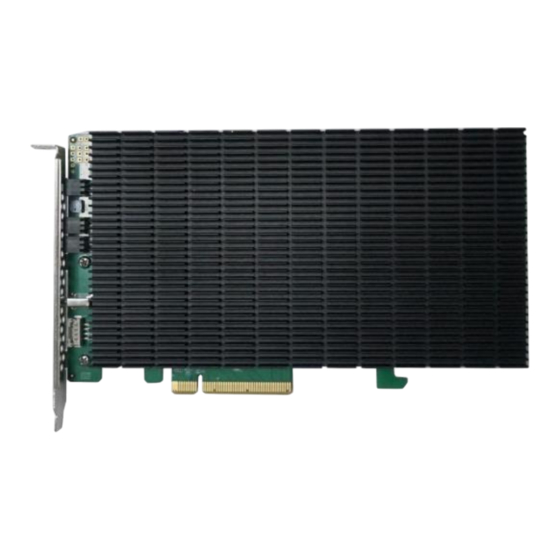

System Requirements PC Requirements • System with a free PCIe 4.0/3.0 x16 or PCIe 4.0/3.0 x8 slot • Windows • Linux (Not supported by Arch linux) • VMware SSD6204A Kit Content • SSD6204A Controller Card • Quick Installation Guide... - Page 3 SSD6204A Hardware Front View Heat sink for M.2 SSD’s PCIe 3.0 x8 Host Interface...
- Page 4 LED Support RAID Switch...
- Page 5 SSD6204A Hardware Installation: Step 1. On the rear of the SSD6204A, remove the six screws that secure the unit’s heat sink to the PCB. After removing the screws, carefully remove the heat sink from the SSD6204A. Step 2. These 4 screws are used to install the NVMe SSDs.
- Page 6 Step 3. Please remove the screws on the right side of SSD6204A.Gently insert the SSD into the slot. Note: Please make sure all disks are clean before you insert them into the slot to avoid unexpected situations. Step 4. Refasten the screw to secure the SSD.
- Page 7 Make sure the aluminum cover is properly aligned with the controller board (PCB), and that it makes full contact with the thermal pad, before refastening it to the SSD6204A. If the cover is improperly installed, thermal pad will be unable to sufficiently...
- Page 8 RAID Switch RAID Switch: four options are available; when the system starts, the SSD6204A will automatically create the specified array using the hosted NVMe SSDs. None JBOD RAID 1 RAID 0 Note: Using the RAID Switch to configure an array will destroy any data stored on the NVMe SSDs.
- Page 9 SSD3 LED RAID LED: when the SSD6204A has no RAID, the RAID LED is off. If there is a normal RAID in the SSD6204A, the RAID LED is green. If the RAID is fail (RAID Status is Disable or Critical), the RAID LED is red.
-
Page 10: Customer Support
Software Download: https://www.highpoint-tech.com/ssd6200-series-overview Customer Support If you encounter any problems while utilizing the SSD6204A, or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department. Web Support: https://www.highpoint-tech.com/support-and-services...
