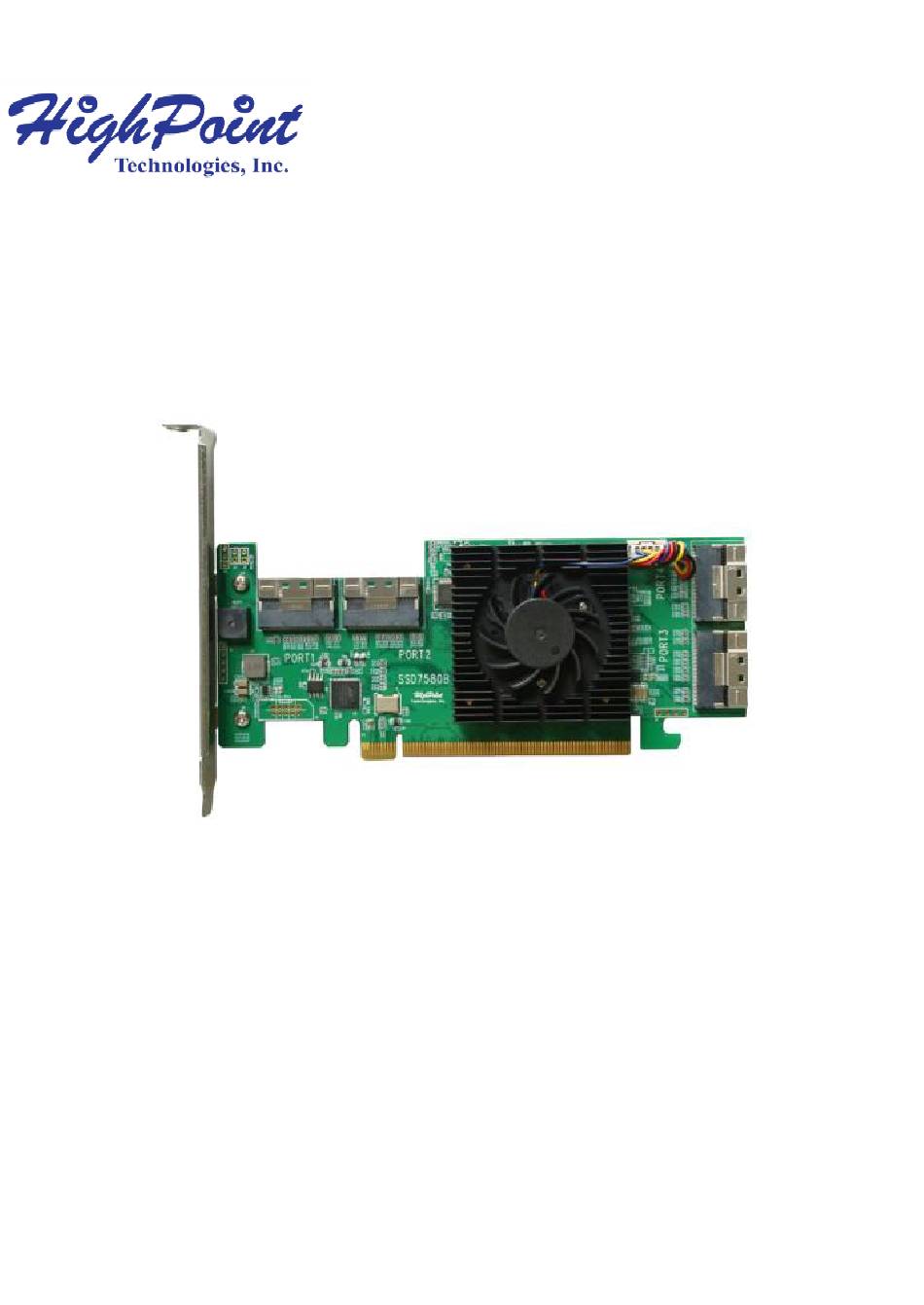

- Page 1 SSD7580B 8x U.2 Port to PCIe 4.0x16 NVMe RAID Controller Quick Installation Guide V1.00...
- Page 2 System with a free PCIe4.0 (or 3.0) x16 slot • Windows 10/11, Windows Server 2016, Windows Server 2019, Windows Server 2022, Microsoft Hyper-V • Linux kernel 3.10 and later SSD7580B Kit Content • SSD7580B Controller Card • Quick Installation Guide •...

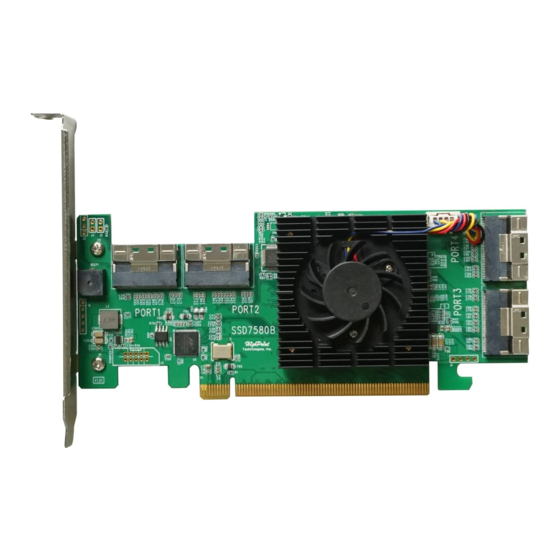

- Page 3 SSD7580B Hardware Front View SFF-8654 ports PCIe 4.0 x16 Host Interface...
-
Page 4: Hardware Installation
These ports accept a variety of HighPoint Certified Cable Accessories (see the Accessories section towards the end of this guide for more information). The following procedure explains how to connect U.2 NVMe SSDs directly to the SSD7580B using HighPoint TS8i-8639-060 NVMe cables. SFF-8654 ports... - Page 5 SATA power connector. The SFF-8639 port should be connected to the NVMe SSD’s U.2 port. The 15 pin SATA power connector should be connected to the system’s power supply. Insert the SSD7580B controller into one of the motherboard’s open PCI-E 4.0x16 slots.
- Page 6 As described in step 2, connect the SFF-8639 cable connectors to the U.2 SSDs. Next, connect the SFF-8654 cable connector to one of the SSD7580B’s four device ports (Ports 1 through 4).
- Page 7 SFF-8639 15-pin SATA power connector...
- Page 8 Connect the remaining NVMe SSDs to the SSD7580B controller as described above. Once complete, Power on the system. Please make sure the cables are securely connected to the Note: SSD7580B’s device ports and the NVMe SSDs or backplane. Loose connections can lead to a variety of problems including instability, slower than expected performance and broken RAID arrays or dropped disks.
- Page 9 Optional Certified Cable Accessories 8654-8643-210 SFF-8654 to SFF-8643 NVMe cable, 1meter length The 8654-8643-210 is an external SFF- 8654 (host) to SFF-8643 (device) PCIe 4.0 x8 NVMe cable; each cable can host up to 2x NVMe SSDs. SFF-8654 to SFF-8611 NVMe cable, 8654-8611-205 0.5meter length The 8654-8611-205 is an external SFF-...
- Page 10 Resources A variety of manuals, guides and s are available for the SSD7580B RAID controller. In addition, we recommend visiting the Software Downloads webpage for the latest drivers, management interfaces, and installation guides. Software Download: SSD7580B Driver, WebGUI, Installation Guides: https://www.highpoint-tech.com/ssd7580b-overview...
-
Page 11: Customer Support
Customer Support If you encounter any problems while utilizing the SSD7580B, or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department. Web Support: https://www.highpoint-tech.com/support-and-services HighPoint Technologies, Inc. websites: https://www.highpoint-tech.com...
