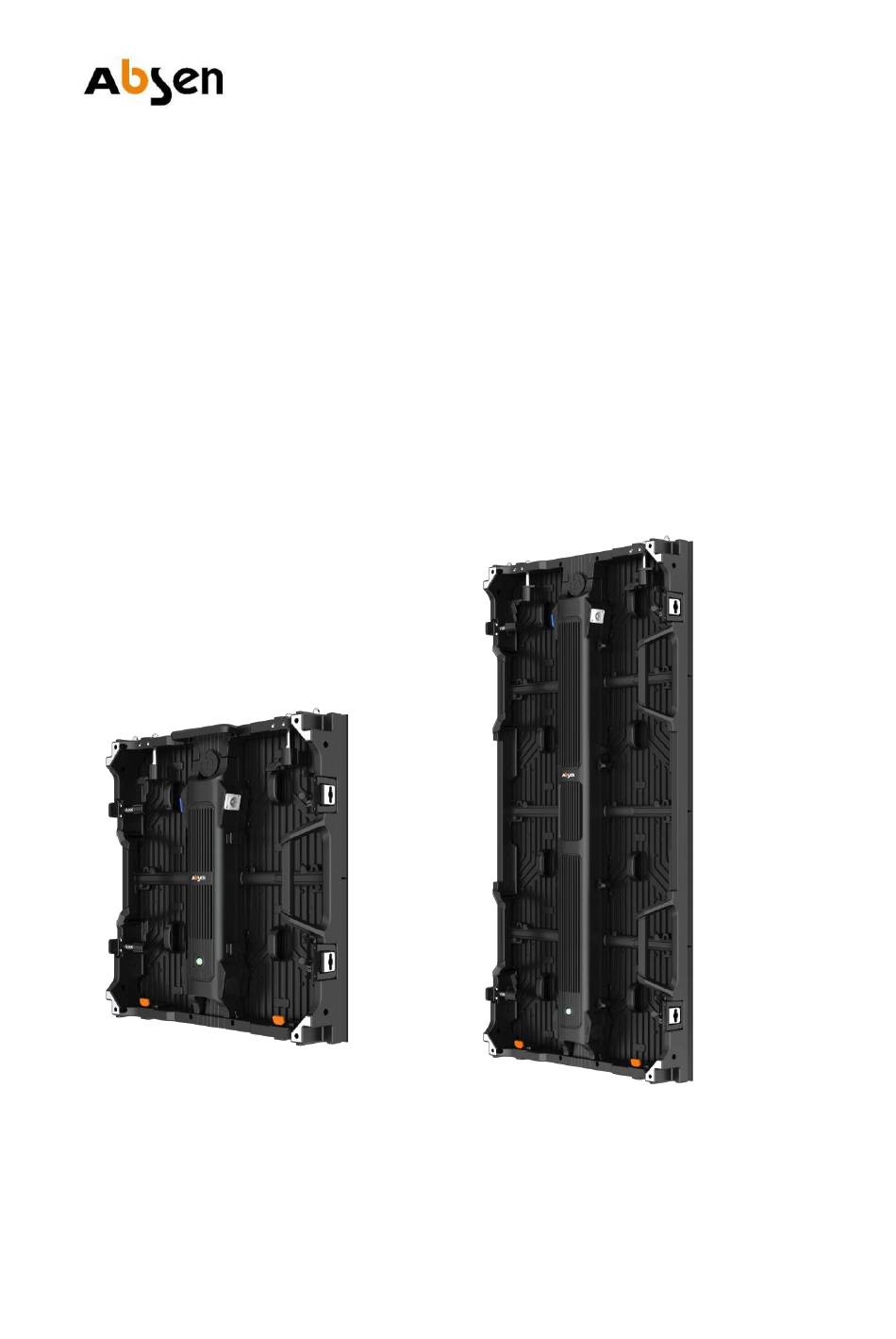

- Page 1 NT Series User manual Shenzhen Absen Optoelectronic Co.,Ltd.
-
Page 2: Table Of Contents
5.2.1 Module Maintenance ...........................- 22 - 5.2.2 Power Box Maintenance........................... - 23 - 5.2.3 Receiving Card and HUB Card Maintenance..................- 25 - 5.2.4 Flight Case...............................- 27 - 6．Common faults and troubleshooting........................... - 28 - - 2 - NT Series User Manual... -
Page 3: Safety Information
Follow safety instructions in this manual and on the product. If you have any questions, please seek help from Absen. Beware of Electric Shock! • To prevent electric shock the device must be properly grounded during installation, Do not ignore using the grounding plug, or else there is a risk of electric shock. - Page 4 • Any component that has a recycling bin label can be recycled. • For more information on collecting, reusing and recycling, please contact the local or regional waste management unit. • Please contact us directly for detailed environmental performance information. - 4 - NT Series User Manual...
- Page 5 Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. NT Series User Manual - 5 -...
-
Page 6: 1．Product Introduction
1. Product Introduction The NT series display is specially designed for stage rental use. It is mainly used in rental applications for large concerts, shows, auto shows, business activities, etc., as a medium for video broadcast, information release, and so on. -
Page 7: Product Main Features
Product Main Features • NT series standard cabinet is curve version, which can provide an excellent effect of screen splicing. • The brightness of NT2.6 and NT2.9’s brightness can reach to 1000nit, the brightness of NT3.9W can reach to 4000nit after calibration, which can maintain excellent display performance in brighter environment. -
Page 8: Product Specifications
Working Humidity (RH) 10﹪~90﹪ Ingress Protection IP40/21 Hanging, stacking, square tube truss Panel Installation Method Leasing Product Installation Maximum number of hoisted cabinets 20/10 Remark: Power consumption tolerance: ±15%, according to the actual situation. - 8 - NT Series User Manual... - Page 9 Working Humidity (RH) 10﹪~90﹪ Ingress Protection IP65/54 Panel Installation Method Hanging, stacking, square tube truss Leasing Product Installation Maximum number of hoisted cabinets 20/10 Remark: Power consumption tolerance: ±15%, according to the actual situation. NT Series User Manual - 9 -...
-
Page 10: Cabinet Dimension Figure
(mm） Cabinet dimension figure Unit: mm 1000 - 10 - NT Series User Manual... -
Page 11: 2．Product Components
Power input port Curved lock Locking system Module Locking system Power box Data input port Data output port Indoor 500*500mm Cabinet: Power output port Power input port Data output port Data input port NT Series User Manual - 11 -... - Page 12 Curved lock module Data input port Power box Data output port Locking system Indoor 500*500mm cabinet: Curved lock Power output port Locking system Power box Power input port Data output Data input port - 12 - NT Series User Manual...
-
Page 13: 3．Product Installation
Use the locking system to lock the cabinets during installation. The curved lock can support radian connection from -7.5 ° to +10°. Standard locking: Lock up and down Lock left and right NT Series User Manual - 13 -... -
Page 14: Hanging Installation
4. Insert the safe lock on the cabinet up 5. Tighten the safe lock from left to right 6. Tighten the second cabinet, as described above Note: For detailed installation steps, see the product installation video - 14 - NT Series User Manual... - Page 15 3, Align the left and right cabinet mounting holes 4, Rise the Hanging bar and install the second line cabinets. 5, Install the cabinets one by one follow the 4 till finish the installation. NT Series User Manual - 15 -...
- Page 16 Single hanging bar Double hanging bar 90 degree hanging bar - 16 - NT Series User Manual...
-
Page 17: Stacking Installation
3.2 Stacking Installation The cabinet is equipped with a curved lock which support radian connection from -7.5 ° to +10°. For the installation method of the cabinet, please refer to the installation above. NT Series User Manual - 17 -... -
Page 18: 4．Product Cabling
After the cabinet wiring is completed, use a multimeter to measure whether there is a short circuit between the AC input (L / N / PE) and DC output (VCC / GND) of the power - 18 - NT Series User Manual... - Page 19 Please calculate the resolution according to each box pixel and connect the signal line according to the load range of the sending card. No more than 655360 pixels can be loaded on each network port. NT Series User Manual - 19 -...
-
Page 20: Standard Cable Wiring
, the screen requires video source from the output device such as PC, laptop, medi a payer, etc. and one or more sending box to receive and feed the source to it. - 20 - NT Series User Manual... -
Page 21: 5．Maintenance
Measuring power lines multimeter and distribution boxes List Small Phillips Installing and removing screwdriver mask Spirit level Measuring structure Measuring installation laser spirit level position Measuring distance of band tape installation hole NT Series User Manual - 21 -... -
Page 22: Maintenance Instructions
Maintenance Instructions 5.2.1 Module Maintenance The module of NT series support front or rear maintenance. Module front maintenance Step1: Attach the vacuum maintenance tool to the module and press the maintenance tool switch for 5 seconds. Pull it vertically and pull the module off the panel. -
Page 23: Power Box Maintenance
Step2: Catch the upper side of power box and remove the whole power box. Step3: Replace with new power box. Step4: Pull the module handles backward to keep the modules at the same flatness. Step 1 Step 2 Step 3 Step 4 NT Series User Manual - 23 -... - Page 24 8 pcs, left and right side both have 4 pcs ) Attention: It is necessary to cut off power supply of cabinets during the maintenance of the power box to avoid electric shock. - 24 - NT Series User Manual...
-
Page 25: Receiving Card And Hub Card Maintenance
3. Install a new receiving card on the HUB card, please note that the receiving card direction should correspond to the arrow direction on the HUB card (please note the yellow frame mark); 4. Install the fixing screws. NT Series User Manual - 25 -... - Page 26 Step 5: install the receiving card back(note that the receiving card direction should correspond to the arrow direction on the HUB board;) Step 6: install the screw; Step 7: install the power box and module. - 26 - NT Series User Manual...
-
Page 27: Flight Case
Flight cases are optimised to fit in vehicles for low cost transport. Fully stackable to save space. NT series flight case only have 6-in-1 type. 6-in-1 for 500x500mm cabinet package: NT2.6, NT2.9, NT3.9W 4-in-1 for 500x1000mm cabinet package: NT2.9, NT3.9W 6in1 design. -
Page 28: 6．Common Faults And Troubleshooting
4. Replace the module; 5. Replace the receiving card; All panels display 1. Set the screen connection on software; 2. Check whether the data port is wrong. the same content - 28 - NT Series User Manual... - Page 29 Make sure all wirings are normal, and only then connect power to operate the unit. All rights reserved by Shenzhen Absen Optoelectronic Co., Ltd. Shenzhen Absen Optoelectronic Co., Ltd. reserves the rights to modify contents without any further notice. NT Series...
