A27 V3 Series Product User Manual
A2712 V3/A2715 V3/A2719 V3/A2725 V3
Shenzhen Absen Optoelectronic Co.,Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A27 V3 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Absen A27 V3 Series

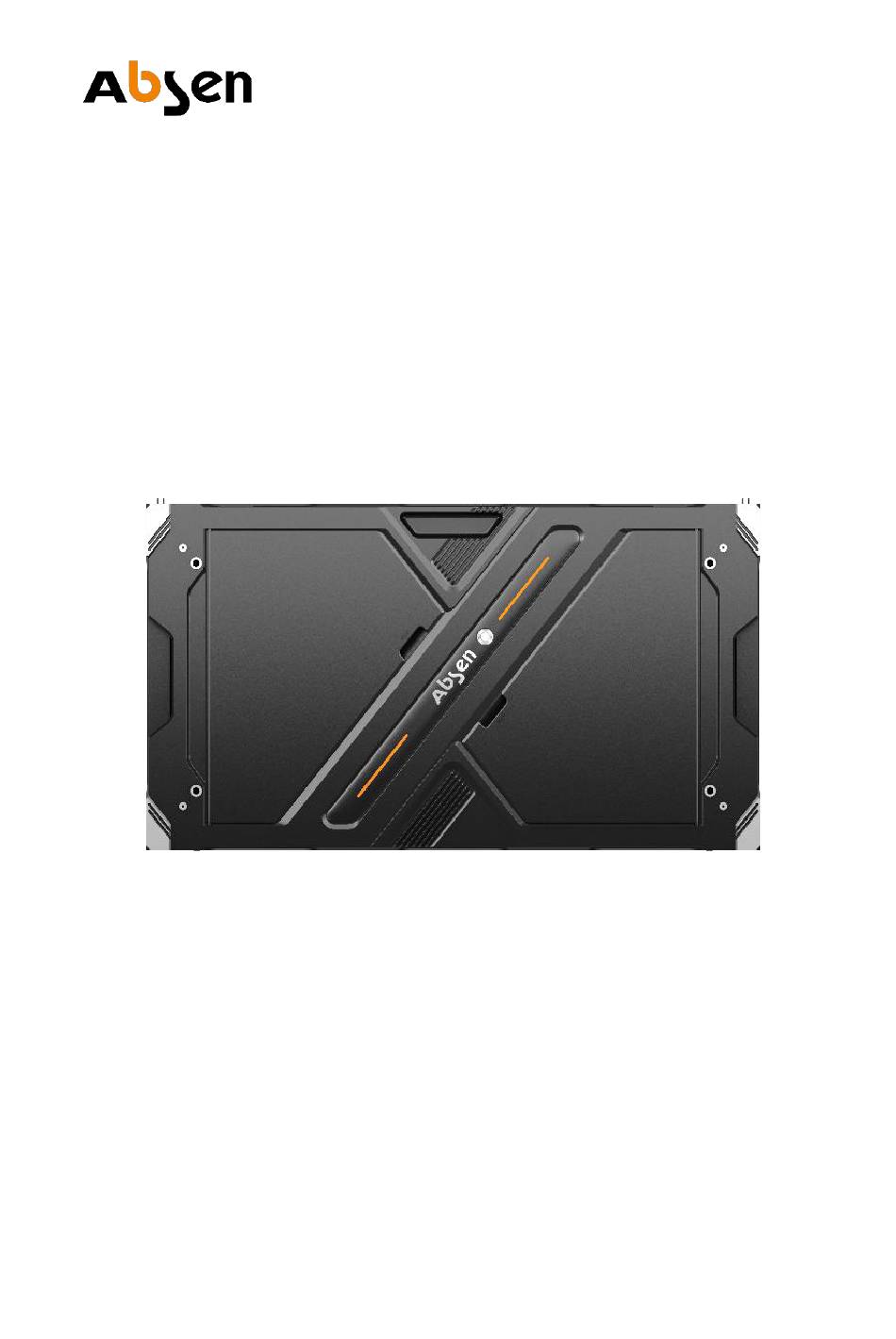

  • Page 1 A27 V3 Series Product User Manual A2712 V3/A2715 V3/A2719 V3/A2725 V3 Shenzhen Absen Optoelectronic Co.,Ltd.
  • Page 2: Table Of Contents

    CONTENT Safety Information..........................2 1 Product Introduction........................5 1.1 Product application scenarios....................7 1.2 Main features..........................7 1.3 Product parameters........................9 2 Introduction of Product Components..................10 2.1 Product size introduction.......................10 2.2 Introduction of cabinet components..................11 3 Preparation before installation....................14 3.1 Installation tools........................14 3.2 Installation environment requirements................15 3.3 Precautions before installation.....................
  • Page 3: Safety Information

    A27 V3 Series Product User Manual SAFETY INFORMATION The following marks on the product and in this manual indicate important safety measures. WARNING: Be sure to understand and follow all safety guidelines, safety instructions, warnings and precautions listed in this manual. This product is for professional use only! This product may result in serious injury or death due to fire hazard, electric shock, and crushing hazard.
  • Page 4 A27 V3 Series Product User Manual If any overheating occurs, replace power cable immediately. • For any other questions, please consult a professional. Beware of Fire! • Use a circuit breaker or fuse protection to avoid fire caused by power supply cables overloading.
  • Page 5 A27 V3 Series Product User Manual Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 6: Product Introduction

    Absen's unwavering efforts in the display industry, and its confidence and commitment to offering high-quality products. The A27 V3 series is specifically designed for high-end enterprises, high-end retail and other fields to develop indoor high-definition fixed display screens.
  • Page 7 APS energy-saving technology, low-carbon and environmentally friendly. Using Absen APS energy-saving technology *, precise power supply, efficient energy saving, resulting in a power consumption reduction of over 30% compared to A27 PLUS.
  • Page 8: Product Application Scenarios

    A27 V3 Series Product User Manual Dual card and dual power versions provide effective protection. The dual card and dual power version can be configured to ensure uninterrupted screen display and stable information transmission, making it more suitable for scenes such as control rooms and radio and television studios 1.1 Product application scenarios...
  • Page 9  Adopting PWM constant current output high-end chips, achieving high gray in low brightness, rich color levels, and precise presentation of details.  Adopting Absen A5C+ point by point chromaticity and brightness correction technology to improve display consistency and make colors more natural and accurate.
  • Page 10: Product Parameters

    A27 V3 Series Product User Manual 1.3 Product parameters Parameters A2712 V3 A2715 V3 A2719 V3 A2725 V3 SMD1010 SMD1010 SMD1515 SMD2121 Diode Type CHIP CHIP Pixel Pitch (mm) 610*343*44.5 Panel Dimensions (WxHxD)/(mm) Physical Parameter Pixel Per Panel 480*270 384*216...
  • Page 11: Introduction Of Product Components

    A27 V3 Series Product User Manual 2 Introduction of Product Components 2.1 Product size introduction 2.1.1 Cabinet size drawing 610mm 343mm 2.1.2 Module size drawing 152.5mm 343mm...
  • Page 12: Introduction Of Cabinet Components

    A27 V3 Series Product User Manual 2.2 Introduction of cabinet components 2.2.1 Introduction to Panel Structure Panel handle Anti-slip left/right handle Wire hole Signal cable : inlet or outlet hole Power cable : inlet hole Signal cable : inlet or outlet hole...
  • Page 13 A27 V3 Series Product User Manual Positioning column pilot lamp frame mounting hole/connecting plate mounting hole Note: Supports both horizontal and vertical wiring. The default vertical wiring is configured when placing an order, and the panel comes with connecting screws 2.2.2 Introduction to Adjusting the Flatness of Panel Structure...
  • Page 14 A27 V3 Series Product User Manual Adjustment method for flatness of steel structure installation: Left and right adjustment holes Front and rear adjusting holes Upper and lower adjusting holes Adjustment method for the flatness of the front and rear connecting plate in the...
  • Page 15: Preparation Before Installation

    A27 V3 Series Product User Manual 3 Preparation before installation 3.1 Installation tools picture Tool type function knife Open the cabinet Hexagon Install and remove the hexagon screwdriver socket screws Install the connecting plate 6mm T-wrench screws Install the "Z" axis adjustment...
  • Page 16: Installation Environment Requirements

    A27 V3 Series Product User Manual 3.2 Installation environment requirements 1. The small spacing series requires on-site temperature and humidity testing to ensure that the temperature is within 35 ℃ and the humidity is within 70% RH; 2. When the temperature exceeds (35 ℃, 70% RH), the product cannot be installed on site;...
  • Page 17 A27 V3 Series Product User Manual 3. Tool preparation: commonly used tools for screen installation, including matching and preparing models with tools such as screwdrivers, wrenches, and multimeters. During installation 4. Installation of distribution panel : The installation of distribution panel must be firm and reliable.
  • Page 18: Product Installation

    A27 V3 Series Product User Manual fault. 4 Product Installation 4.1 Steel structure installation Install layer by layer from bottom to top. First, lock the connecting screws between the panels, and then use connecting plates and M8x55mm screws to fix them on the square joint. Install M6x50mm "Z" axis adjustment screws on the connecting plates.
  • Page 19: Wall Mounting

    A27 V3 Series Product User Manual 4.2 Wall mounting Step 1: Use M6 self tapping screws or M6 expansion screws to fix the frame on a flat wall. Single or double frames are optional. Step 2: Install the hanging nails on the installation holes on the back of the panel, and each frame needs to install 4 hanging nails.
  • Page 20: Hanging Installation

    A27 V3 Series Product User Manual Step 4: Connect the signal cable and power cable Step after installing the panel. Step 5: Install the module, paying attention to the corresponding numbering of the module and the panel. 4.3 Hanging installation Use screws on the top and bottom of the panel to connect the hanging bar.
  • Page 21 A27 V3 Series Product User Manual Installation steps: (1) Fix the hanging bar on the structure; (2) Align the screws of the panel with the installation holes on the hanging bar, and install the panel under the hanging bar; (3) Install other panels and tighten screws in four directions;...
  • Page 22: Product Wiring

    A27 V3 Series Product User Manual 5 Product Wiring 5.1 Preparation before connection Before connecting: Before supplying power to the entire screen, please carefully check whether the power cable between the cabinets is connected, and whether the main power cable between the screen and the distribution cabinet is properly connected;...
  • Page 23: Signal Cable Connection

    A27 V3 Series Product User Manual Power Power cable on Power cable on Model Panel size(mm) consumption load (220V) load (110V) (maximum) A2712 V3 610x343x44.5 561 W/㎡ A2715 V3 610x343x44.5 540 W/㎡ A2719 V3 610x343x44.5 471 W/㎡ A2725 V3 610x343x44.5 300 W/㎡...
  • Page 24 A27 V3 Series Product User Manual The pixel count of a single A2715 V3 panel is 384x216=82944, and 25 A2715 V3 panels are loaded with 5 network cables, with each cable carrying 5 panels. Single network port Note Model Panel size...
  • Page 25: The Test Of Setting Up An Electric Circuit

    A27 V3 Series Product User Manual 5.4 The test of setting up an electric circuit After the cabinet connection is completed, please use a multimeter to measure whether there is short circuit at the AC input (L/N/PE) and DC output (VCC/GND) of the power supply.
  • Page 26: Product Maintenance

    6.2 Module maintenance The A27 V3 series module can be quickly removed using a vacuum adsorption tool in 3-5 seconds, Attach the front maintenance tool to the faulty module surface to be removed, press the switch once, hold for 3-5 seconds, and then...
  • Page 27: Adapter Board/Receiving Card/Power Supply Maintenance

    A27 V3 Series Product User Manual Illustratio ❶Confirm the location of the ❷Press the switch once and ❸ Gently install the spare faulty module and place the hold for 3-5 seconds. Grasp the module onto the screen in an Maintena...
  • Page 28 A27 V3 Series Product User Manual adapter board maintenance illustration ❶Use vacuum premaintenance tools to remove all modules from the faulty panel ❷Using a PH2 Phillips screwdriver, remove the screws securing the adapter plate and replace the faulty adapter plate...
  • Page 29: Product Maintenance Precautions

    A27 V3 Series Product User Manual 6.4 Product maintenance precautions 6.4.1 Precautions for switch on /off LED screen (1) Turn on the screen: first turn on the control computer to make it run normally, and then turn on the LED display.
  • Page 30 A27 V3 Series Product User Manual between the two operations; (9) Non-professionals are forbidden to touch the internal wiring of the large screen of the LED display to avoid electric shock or damage to the wiring. 6.4.3 Notes on cleaning...
  • Page 31: Troubleshooting

    A27 V3 Series Product User Manual inspection and repair. 6.5 Troubleshooting Common faults Solution 1. Check whether the power plug of the corresponding module is tightly inserted; 2. Check whether the power cable of the corresponding module is burnt out;...
  • Page 32 Make sure all wiring are normal, and only then connect power to operate the unit. All rights reserved by Shenzhen Absen Optoelectronic Co., Ltd. Shenzhen Absen Optoelectronic Co., Ltd. reserves the rights to modify contents without any further notice.

This manual is also suitable for:

A2712 v3A2715 v3A2719 v3A2725v3
