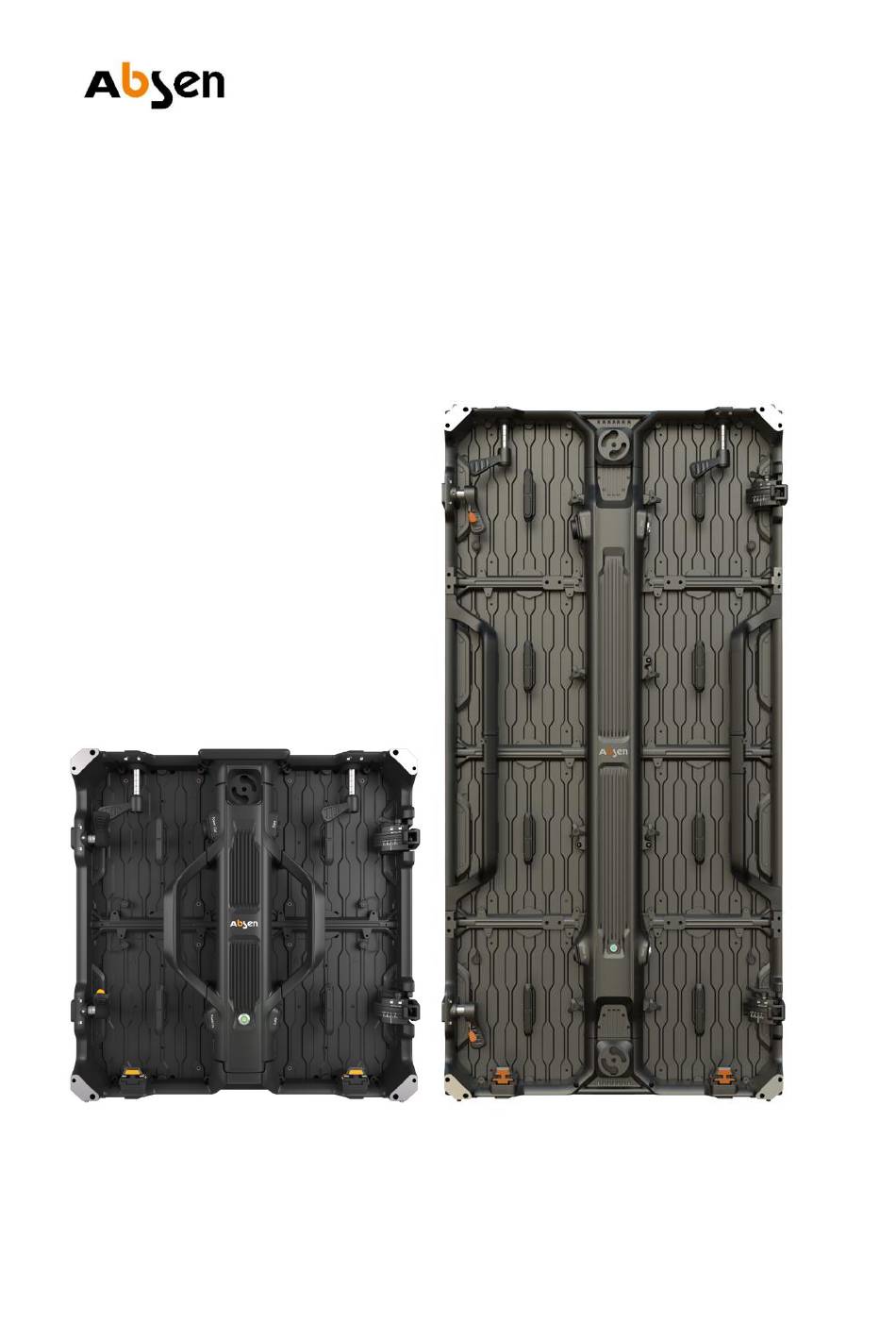

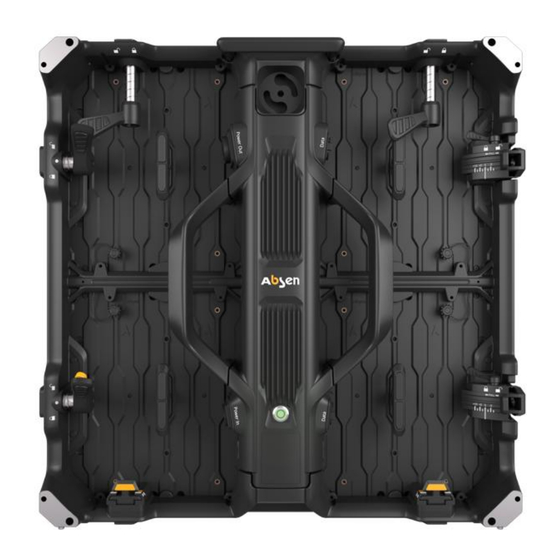

- Page 1 PL V2 Series User manual Shenzhen Absen Optoelectronic Co.,Ltd.
-
Page 2: Table Of Contents
5.2.1 Module Maintenance ...........................- 21 - 5.2.2 Power Box Maintenance........................... - 22 - 5.2.3 Receiving card, HUB card and Power maintenance..............- 23 - 5.2.4 Flight Case...............................- 25 - 6．Common faults and troubleshooting........................... - 26 - - 2 - PL V2 Series User Manual... -
Page 3: Safety Information
Follow safety instructions in this manual and on the product. If you have any questions, please seek help from Absen. Beware of Electric Shock! • To prevent electric shock the device must be properly grounded during installation, Do not ignore using the grounding plug, or else there is a risk of electric shock. - Page 4 • Any component that has a recycling bin label can be recycled. • For more information on collecting, reusing and recycling, please contact the local or regional waste management unit. • Please contact us directly for detailed environmental performance information. - 4 - PL V2 Series User Manual...
- Page 5 Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. PL V2 Series User Manual - 5 -...
-
Page 6: 1．Product Introduction
1．Product Introduction The PL V2 series display is specially designed for stage rental use. It is mainly used in rental applications for large concerts, shows, auto shows, business activities, etc., as a medium for video broadcast, information release, and so on. -
Page 7: Product Main Features
Product Main Features • PL V2 series include curve version, which can provide an excellent effect of screen splicing. • PL2.5 Pro V2’s brightness can reach up to 1500nit after calibration which can maintain excellent display performance in brighter environment. It supports the latest HDR10 standard &... -
Page 8: Product Specifications
(˚C) Working Temperature -10~+40 (˚C) Environmental Storage Temperature 10%~90% Parameters (RH) Working Humidity 10%~90% (RH) Ingress Protection IP40/IP21 Panel Installation Leasing Rigging/Stacking Method Product Maximum number of Installation 20/10 20/10 hoisted cabinets - 8 - PL V2 Series User Manual... - Page 9 When used as a simple floor tile screen, please add an edging structure around the screen to prevent the PC cover from shifting during intense vibrations PL V2 Series User Manual - 9 -...
-
Page 10: Cabinet Dimension Figure
Cabinet dimension figure (mm） Unit: mm 1000 - 10 - PL V2 Series User Manual... -
Page 11: 2．Product Components
2．Product Components 2.1 Cabinet Introduction Locking system Magnetic Curved lock Locking system Module Locking system Power box Magnetic Locking system Curved lock Locking system module Power box Locking system PL V2 Series User Manual - 11 -... -
Page 12: 3．Product Installation
Use the locking system to lock the cabinets during installation. The curved lock can support radian connection from -7.5 ° to +10°. Standard locking: Lock up and down Lock left and right - 12 - PL V2 Series User Manual... -
Page 13: Hanging Installation
4. Insert the safe lock on the cabinet up 5. Tighten the safe lock from left to right 6. Tighten the second cabinet, as described above Note: For detailed installation steps, see the product installation video PL V2 Series User Manual - 13 -... - Page 14 3, Align the left and right cabinet mounting holes 4, Rise the Hanging bar and install the second line cabinets. 5, Install the cabinets one by one follow the 4 till finish the installation. - 14 - PL V2 Series User Manual...
- Page 15 Single hanging bar Double hanging bar 90 degree hanging bar PL V2 Series User Manual - 15 -...
-
Page 16: Stacking Installation
2. For the installation method of the cabinet, please refer to the installation above. 3.3 Precautions for installing floor tile screens 1、 PL V2 series as a floor tile screen before installation, to install 2 M3 fixing screws on the - 16 -... - Page 17 After installing the box and connecting the wires, use 12 M1.6*12mm screws to install the acrylic board on each box. *Constraint coverage structure around the whole screen is required to prevent the displacement of PC mask during strong vibration. The load capacity is 2000KG/SQM. PL V2 Series User Manual - 17 -...
-
Page 18: 4．Product Cabling
AC input (L / N / PE) and DC output (VCC / GND) of the power supply. If so, please check the circuit carefully. Please make sure the circuit is normal - 18 - PL V2 Series User Manual... - Page 19 Please calculate the resolution according to each box pixel and connect the signal line according to the load range of the sending card. No more than 655360 pixels can be loaded on each network port. PL V2 Series User Manual - 19 -...
-
Page 20: Standard Cable Wiring
5．Maintenance 5.1 Tools for Maintenance Preparation of maintenance tools: Type Function Picture List Front Installing and fixing maintenance tool module - 20 - PL V2 Series User Manual... -
Page 21: Maintenance Instructions
5.2 Maintenance Instructions 5.2.1 Module Maintenance The module of PL V2 series support front or rear maintenance. Module front maintenance Step1: Attach the vacuum maintenance tool to the module and press the maintenance tool switch for 5 seconds. Pull it vertically and pull the module off the panel. -
Page 22: Power Box Maintenance
5.2.2 Power Box Maintenance 500×500mm cabinet： Step1: Press the yellow button. Step2: Take out the low half of the power box. Step3: Remove the whole power box. Step4: Replace with new power box. - 22 - PL V2 Series User Manual... -
Page 23: Receiving Card, Hub Card And Power Maintenance
Attention: It is necessary to cut off power supply of cabinets during the maintenance of the power box to avoid electric shock. 5.2.3 Receiving card, HUB card and Power maintenance Receiving card PL V2 Series User Manual - 23 -... - Page 24 (please note the yellow border mark in the figure below); Step 4: install the HUB board back (note the direction of the HUB board and the corresponding screw hole); Step 5: install the screw; - 24 - PL V2 Series User Manual...
-
Page 25: Flight Case
Flight cases are optimised to fit in vehicles for low cost transport. Fully stackable to save space. PL V2 series flight case has 8in1, 6in1, and 4in1. 8in1 for 500x500mm cabinet package(PL2.9 Plus V2/PL3.9 Plus V2/PL3.9W Plus V2/PL4.8 Plus V2) 6in1 for 500x500mm cabinet package(PL1.9 Plus V2/PL2.5 XR V2/PL2.5 Pro V2/PL2.5... -
Page 26: 6．Common Faults And Troubleshooting
4. Check whether the flat cable of the corresponding module is malfunctioning; 5. Replace the flat cable of the corresponding module; 6. Replace the module; - 26 - PL V2 Series User Manual... - Page 27 3. Replace the power supply of the multi-function card; card detected 4. Check whether the main data cable is inserted into the wrong data port; 5. Check whether the sending card data port is PL V2 Series User Manual - 27 -...
- Page 28 Make sure all wirings are normal, and only then connect power to operate the unit. All rights reserved by Shenzhen Absen Optoelectronic Co., Ltd. Shenzhen Absen Optoelectronic Co., Ltd. reserves the rights to modify contents without any further notice. - 28 -...
