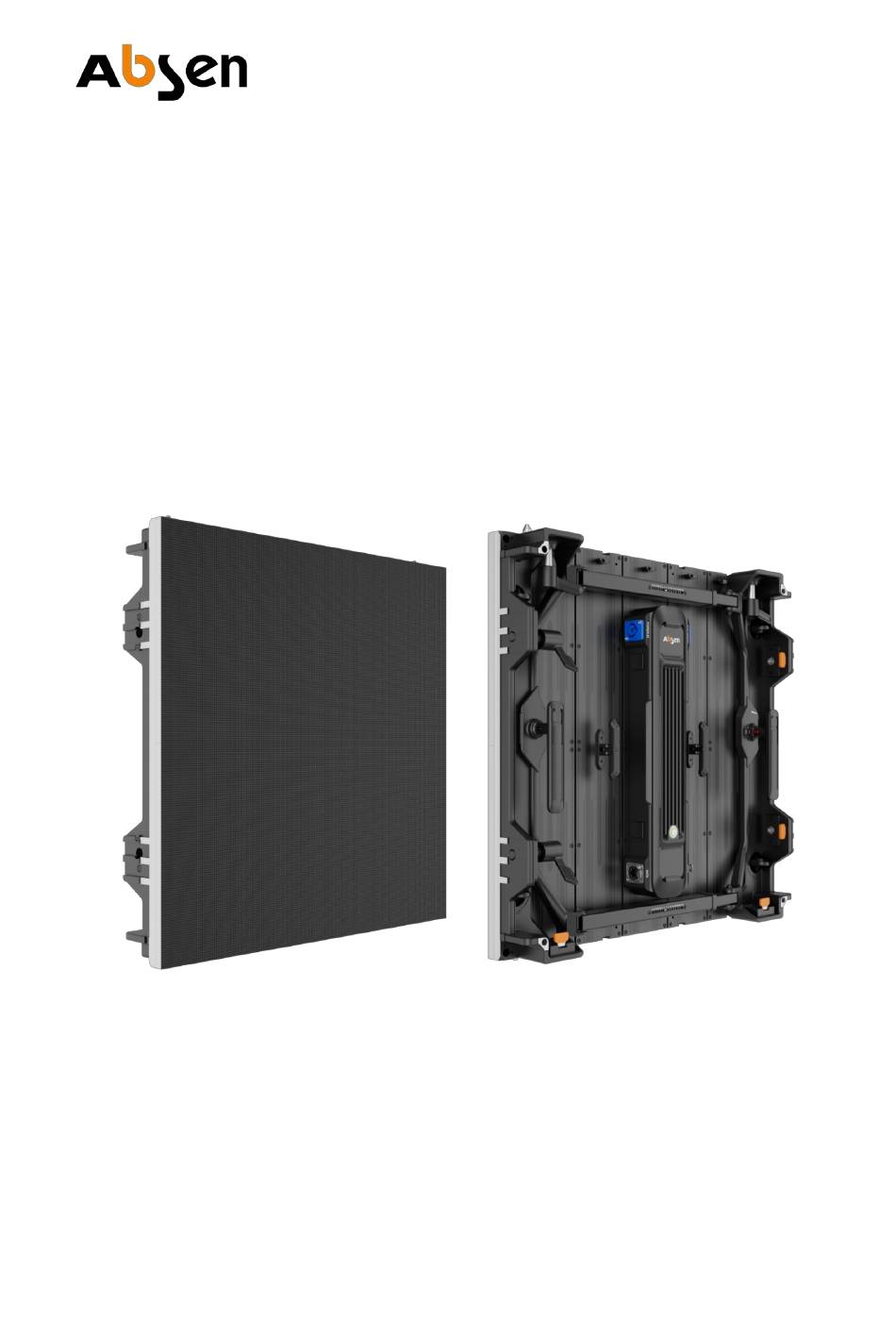

- Page 1 FL Series User manual Shenzhen Absen Optoelectronic Co.,Ltd.
-
Page 2: Table Of Contents
5.2.2 Module Maintenance ......................- 35 - 5.2.3 Power Box Maintenance ....................... - 39 - 5.2.4 Maintenance of Control Card and HUB Card ............... - 40 - 6. Common faults and troubleshooting ..................- 42 - FL Series - 2 - User Manual... - Page 3 7. Revision History ......................... - 44 - FL Series User Manual - 3 -...
-
Page 4: Safety Information
Follow safety instructions in this manual and on the product. If you have any questions, please seek help from Absen. Beware of Electric Shock! To prevent electric shock the device must be properly grounded ... - Page 5 Ensure all components and steel frames are securely installed. When installing, repairing, or moving the product, ensure the working area is free of obstacles, and ensure the working platform is securely and stably fixed. FL Series User Manual - 5 -...
- Page 6 Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. FL Series User Manual - 6 -...
-
Page 7: Product Introduction
At present, there are three kinds of pixel pitches for the FL series: P2.5mm, P2.6mm, and P2.9mm. The FL series is available in one size: 500mm x 500mm x 78mm, and is made of die casting aluminum material. Each cabinet weighs only 7kg. - Page 8 (7) Support fast rear maintenance of module and power box without tools; (8) Comes standard with reinforcements for leveling flat screens; (9) The FL series boasts an innovative cabinet with a flexible structure, allowing for greater curvature of the LED screen and delivering superior curved transition effects.
- Page 9 (10) Cylindrical with only eight cabinets (the minimum diameter of the cylinder is 1.27m). Figure 1-4 Cylindrical Splicing FL Series User Manual - 9 -...
-
Page 10: Product Specifications
1980 2321 2184 2457 Avg BTU Remark： (1) The max hanging amount is only valid when the Absen hanging bar and complementary accessories are used and in an indoor situation, safety factor is FL Series User Manual - 10 -... -
Page 11: Fl2.6 Specifications
5. No climbing is allowed. (2) The max stacking amount is only valid when the Absen stacking system and complementary accessories are used, enough ballast is applied and in an indoor situation. (3) Power consumption tolerance: ±15%, according to the actual situation. -
Page 12: Fl2.9 Specifications
-40 °C to 60 °C / -40 °F to 140 °F Operating / Storage 10 – 90% RH Humidity Certifications CE, ETL, FCC,RoHS Max Hanging QTY. Max Stacking QTY. Transparency Solid 3D Ready IM Type Magnet Max BTU 1700 1700 Avg BTU FL Series User Manual - 12 -... -
Page 13: Product Dimension Figure
1.4 Product Dimension Figure One FL panel consists of 2 pieces modules. Figure 1-5 FL Panel Dimensions (Unit: mm) Figure 1-6 FL Module Dimensions (Unit: mm) FL Series User Manual - 13 -... -
Page 14: Product Components
2. Product Components 2.1 Panel Overview Each part of the FL series panel is as follows： Power in Power out Top Lock Top Lock Side Lock Side Lock Adjustable Angle Handle Left Handle Side Lock Side Lock Maintenance Knob M8 Hole... -
Page 15: Cabinet Power Flow
It flows outward from both sides of each row of tiles, with no power connection between the middle tiles. Figure 2-3 FL Series Cabinet Power Flow 2.4 Cabinet Data Flow After entering the cabinet from the outside, the data is routed through the card board to the data communication ports of four individual modules, with no signal connections between each module. -
Page 16: Accessories
3. Accessories FL series support both hanging and stacking installation. 3.1 Hanging system The hanging bar is used for rigging installation. FL hanging bar Weight: 1.0±3% kg Dimensions: 492 x158.4 x 196.4 mm Figure 3-1 FL Hanging Diagram FL Series... -
Page 17: Cables
Power cable, 1m, 16A, SAC3FCA - SAC3FCA Weight: 0.26kg±3% kg Seetronic _ Seetronic Connectors Connect neighboring panels vertically. Data cable, 1m, etherCON - etherCON Weight: 0.12kg±3% kg Neutrik _ Neutrik Connectors Connect panels in neighboring columns. FL Series User Manual - 17 -... -
Page 18: Package
3.3 Package 3.3.1 Flight Case for FL Panels When the Flight case of FL series is in use, please place the LEDs panel vertically in each compartment of the flight case to avoid damage to the SMD module. The flight case is optimized to fit in vehicles for low cost transport, and also fully stackable to save space. - Page 19 Figure 3-2 FL Panel Flight Case Dimensions (Unit: mm) *Note: Please confirm the side block is adjusted to 0 degree when putting panel in flight case. Figure 3-3 FL Cabinet with a 0 degree adjusted radian FL Series User Manual - 19 -...
-
Page 20: Flight Case For Accessory
3.3.2 Flight Case for Accessory Dimensions: 1154X925.6X554 mm Figure 3-4 Accessory Flight Case Dimensions (Unit: mm) FL Series User Manual - 20 -... -
Page 21: Installation
(2) Attach all hanging bars onto the truss through the aircraft belt. And the aircraft belt is moved horizontally to maintain a suitable distance. (3) Take out the panel from the flight case and installed on the trusses by hanging bar. FL Series User Manual - 21 -... - Page 22 (4) Lock the panel and hanging bar and install the second panel. Lock neighboring panels. (5) Repeat above steps until all panels are installed. FL Series User Manual - 22 -...
- Page 23 (6) It is recommended to uninstall from right to left when uninstall tiles. *Note：For detailed installation steps, please see the product installation video. FL Series User Manual - 23 -...
-
Page 24: Standard Cable Wiring
There are 5 main components in the FL data flow: PC, control box, signal transmission cables, power cables, and FL series LED cabinets. Each FL cabinet includes one control card and one HUB card for data distribution within the cabinet. -
Page 25: Power Cabling
Connect the first power-in port of the panel and power source with the main power cable. Figure 4-2 FL Series Power Cabling _ Rear View How to calculate the power cable capacity? N=UI/P N: One main power cable capacity... -
Page 26: Data Cabling
（2）Connect panels in neighboring columns with 1m data cables. （3）Connect panels with the processor through 20m data cables. （4）Connect the processor with a PC / laptop via the Ethernet port. （5）Connect the video source. FL Series User Manual - 26 -... - Page 27 Figure 4-3 FL Series Data Cabling Figure 4-4 Data Mapping *Notes： (1) The front view is for the setting in the control system. (2) The cascade control data cables should not be more than 100 meters. When it's over 100 meters, please switch to fiber cables.
-
Page 28: Cabling Operation
FL series products is shown in 4.3.1 Controller load capacity section） 4.2.5 Cabling Operation There are at almost 4 operation steps as follows: (1) Make sure the load capacity of main power cable and main network cable (2) Checking... -
Page 29: Control System
FL panels are now available on NOVA processing. 4.3.1 NOVA Processing According to the port capacity of Nova processor, the load capacity of FL series products with different models, different color depths and different frame rates is calculated as follows: FL 2.5... -
Page 30: Component Of Control System
(1) Control Port : The control port is connected to the PC, which sends debugging commands to the control box. The control box then distributes the command data to all the LED modules through the Ethernet port. FL Series User Manual - 30 -... -
Page 31: Calibration System
Figure 4-7 Control System Topology Diagram 4.4 Calibration System The calibration system of the FL series collects brightness and chromaticity data for each pixel of the FL modules and stores this data in the calibration system's database. The control card inside the FL cabinet will process the collected calibration data based on the target brightness and color space, and finally distribute the data to each pixel. - Page 32 Figure 4-8 Diagram of Correction System FL Series User Manual - 32 -...
- Page 33 Figure 4-9 Correction System Topology Diagram FL Series User Manual - 33 -...
-
Page 34: Maintenance
Measuring power lines and Multi-meter distribution boxes Small Phillips Installing and removing screwdriver mask List Spirit level Measuring structure Measuring installation laser spirit level position Measuring distance of band tape installation hole FL Series User Manual - 34 -... -
Page 35: Maintenance Instructions
LEDs when they heat up excessively. As a result, Absen suggests that in case a screen has not been used for an extended duration or has been stored in a highly environment, it should be gradually warmed up. - Page 36 Step2: Sequentially pull and rotate the locking knobs at the four corners of the FL module casing outward as indicated in the diagram. FL Series User Manual - 36 -...
- Page 37 Step3: Grasp both module handles and push the module outward, then remove the module from the rear after releasing the safety rope attached to it. FL Series User Manual - 37 -...
- Page 38 Step4: Replace with a good module and lock the safety rope. FL Series User Manual - 38 -...
-
Page 39: Power Box Maintenance
5.2.3 Power Box Maintenance The power box of FL series support rear maintenance. The detailed operation steps are as follows: Step1: Simultaneously press the four PRESS buttons on the power box with both hands to remove the power box. Step2: Replace with a good power box and install it by using the handles on the module as support points. -
Page 40: Maintenance Of Control Card And Hub Card
5.2.4 Maintenance of Control Card and HUB Card The module of FL series support rear maintenance. (1) Maintenance for control card Step 1: Remove the screws of the control card (please note the red frame mark);... - Page 41 Step 3: Install the control card back (Note that the direction of the control card should correspond to the arrow direction on the HUB card); Step 4: Install the remaining screw; Step 5: Install the power box back to its original position. FL Series User Manual - 41 -...
-
Page 42: Common Faults And Troubleshooting
2. Check whether the main data cable is well inserted; Chromatic 3. Check whether the control box is powered on and whether the aberration running indicator is flashing; between modules 4. Replace the module; 5. Replace the control card; FL Series User Manual - 42 -... - Page 43 AC input power supply (L/N/PE) and DC output terminal (VCC/GND). If there is a short circuit, please carefully investigate the wirings. Make sure all wirings are normal, and only then connect power to operate the unit. FL Series User Manual - 43 -...
- Page 44 Editor V1.0 2024.01.24 Creation All rights reserved by Shenzhen Absen Optoelectronic Co., Ltd. Shenzhen Absen Optoelectronic Co., Ltd. reserves the rights to modify contents without any further notice. Shenzhen Absen Optoelectrionic Co. Ltd Absen Inc. Absen GmbH 7120 Lake Ellenor Drive, Orlando Hessenring 4c, 64546 Moerfelden-Walldorf 18-20F Building 3A, Cloud Park，Bantian,...
