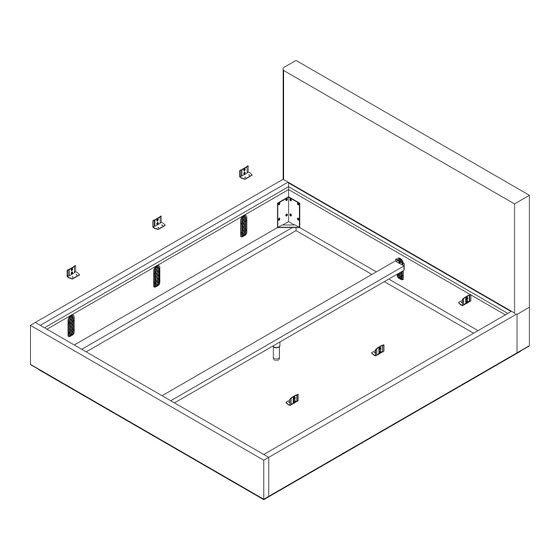

Ethnicraft Revive Bed Assembly Instructions

REVIVE BED - WITH SLATS
ASSEMBLY INSTRUCTIONS FOR BED INSTALLATION
HARDWARE ENCLOSED
SCREW
M6x25 METAL BRACKET
(32pcs)
(4pcs)
IN YOUR PACKAGE :
ASSEMBLY INSTRUCTIONS
HARDWARE (AS LISTED ABOVE)
PARTS TO BE INSTALLED
1. HEADBOARD (1 pc)
2. SIDE RAILS (2 pcs)
3. FOOTBOARD (1 pc)
4. CENTRAL SUPPORT (1 pc)
5. SLATS (2 pcs)
SYMBOLS
DIRECTION NUMBER OF
PERSONS NEEDED
L BRACKET SHORT LEG
(6pcs) (1pc)
5
( L ) ( L )
2
4
3
USE HAND USE PHILLIPS SCREWDRIVER
TO TIGHTEN
LONG LEG
(1pc)
5
( R ) ( R )
2
NOTICE
N
C TI O
ST RU
LY IN
MB
SE
A S
1 / 5
LE TRI
TOOL REQUIRED
PHILLIPS
SCREWDRIVER
(Not included in package)
1
X2
