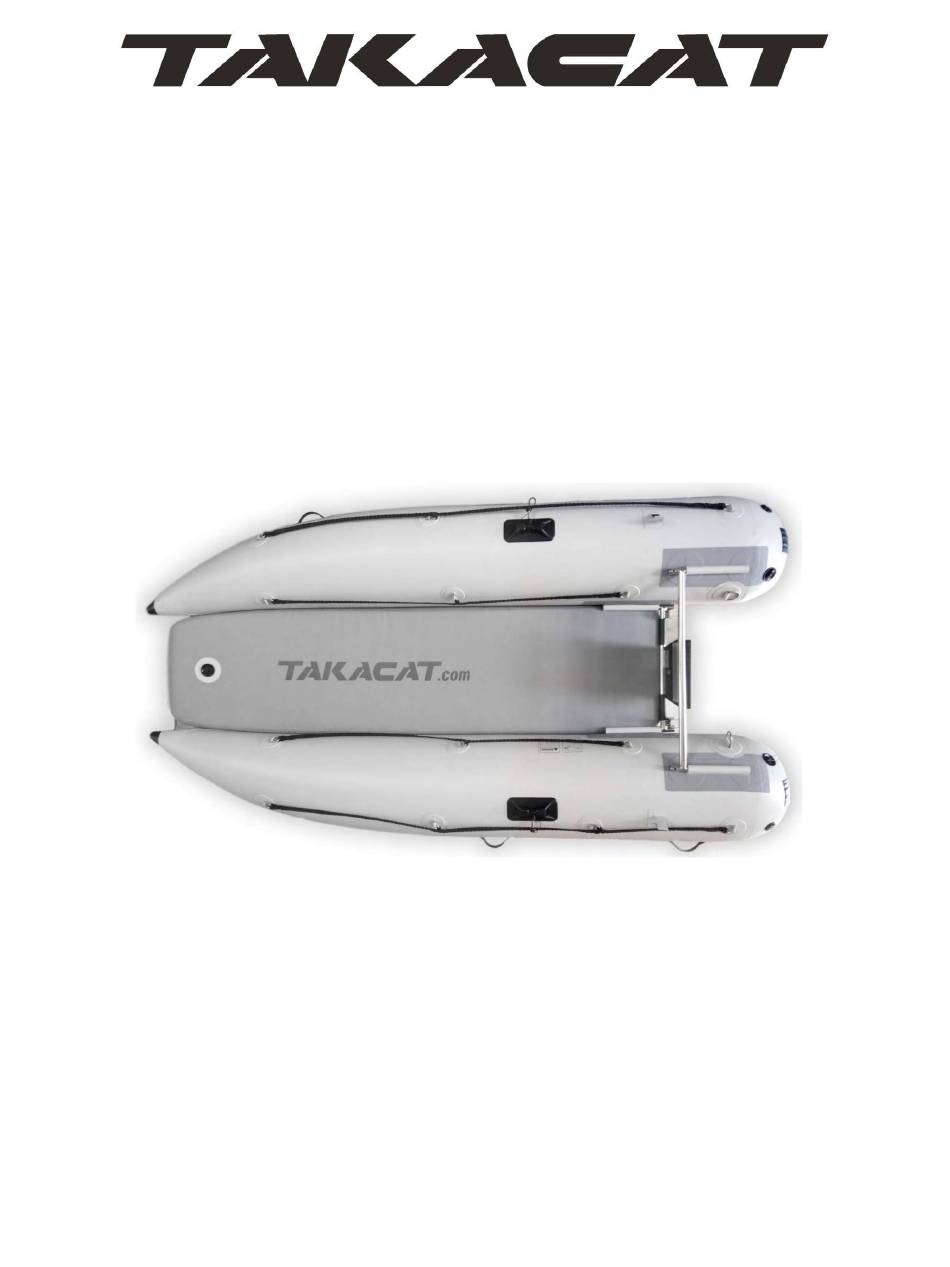

- Page 1 Assembly Instructions for LX Series Inflatable Boats Models T260LX – T460LX www.takacat.co.nz Takacat Owner’s Manual - 2024...
- Page 2 INTRODUCTION Congratulations on the purchase of your new Takacat! This information sheet is to assist with the assembly, operation and storage of your inflatable boat with safety and enjoyment in mind. International Standards ISO 4892-3:2006 Built to International Standard ISO/6185 ...
-
Page 3: Safety Considerations
Never allow a minor to operate this boat LATEST VIDEO LINKS Please use the following link for: https://www.takacat.co.nz/user-guides-takacat-inflatable-boat Set Up Pack Down Repairs FAQ’s and tips & support can be found here: https://www.takacat.co.nz/inflatable-boat-faqs www.takacat.co.nz Takacat Owner’s Manual - 2024... - Page 4 3psi, then go back to the front and finish inflating the front tubes to 3psi with the included hand pump or optional electric E-Pump. Please follow this procedure to ensure the chambers are balanced and to protect the internal baffle. www.takacat.co.nz Takacat Owner’s Manual - 2024...
- Page 5 The stainless tab should be facing down when insert properly. Note – Using a mixture of soap and water will make inserting and removing the bar easier. 5. Slot the smaller transom board inside the Tube Transom. www.takacat.co.nz Takacat Owner’s Manual - 2024...
- Page 6 7. Unroll the inflatable floor and insert into its position. There is no need to get it perfectly under each hull tube, but the rear of the floor should be flush with the Lower Transom Bar. www.takacat.co.nz Takacat Owner’s Manual - 2024...
- Page 7 11. Assemble each oar and install use a little Vaseline or Marine Grease on the thread for easy removal and to ensure they don’t seize. Be sure to attach retaining nut to prevent losing oars when in use. www.takacat.co.nz Takacat Owner’s Manual - 2024...
- Page 8 Please note: that all Takacat models are designed to be used with a Short Shaft (15” shaft) outboard only. 13. If you opted for the Quick Release Rod Holders, install them now into the Upper Transom Bar.
-
Page 9: Cleaning Instructions
Rinse your boat with clean fresh water whenever possible after each use. At the end of each season it is recommended you clean it with Takacat Boat Cleaner which has a UV Protectant formulated into it. Periodic washing can be completed with Takacat Boat Wash or soapy water and fully rinse after. - Page 10 Towing/Anchoring/Mooring Takacat Inflatable must be empty when it is towed by another boat. The towing line should be rigged to a bridle between the two bow D-Rings and the two D-Rings under the floor. The inflatable must be under constant supervision when it is being towed.
-
Page 11: Specifications
Draft: 0.15m Tube Diameter: 0.48m Max. Tube Pressure: 3psi Max. Floor Pressure: 8-10psi Max. Person: 5 Max. Loading: 515kg (including engine) Max. Engine Power: 15HP Max. Engine Mass: 50kg Length of Shaft: S (15”) www.takacat.co.nz Takacat Owner’s Manual - 2024... - Page 12 Max. Engine Mass: 50kg Length of Shaft: S (15”) Please note – Takacat NZ Ltd does not take responsibility for any misuse of this inflatable catamaran. Please always remember others around you and those onboard and be a responsible skipper.
