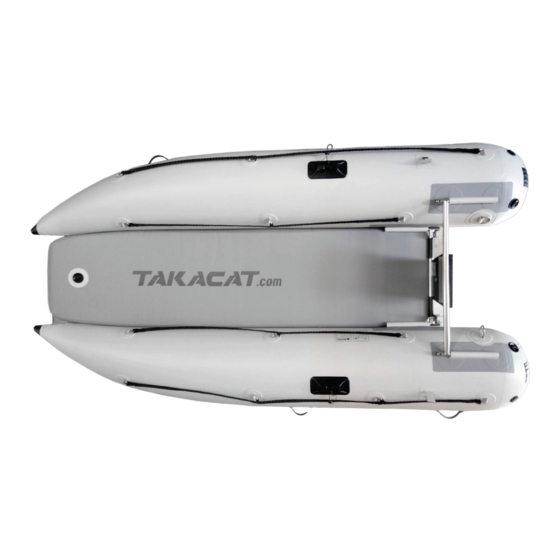

TAKACAT T260LX Owner's Manual
Hide thumbs
Also See for T260LX:
- Assembly instructions manual (14 pages) ,
- Owner's manual (11 pages) ,
- Owner's manual (5 pages)
Table of Contents
Advertisement
Quick Links
Owner's Manual V2.1 - T260LX to T460LX + 340LS
Manufacturer:
Till model „F121": AIR YACHT Ltd - 3 Owens Rd, Epsom - Auckland 1023 - New Zealand -
From model „G121": TAKACAT GmbH - Leibnizstraße 3 - 53498 Bad Breisig - Germany -
Please be sure to observe the information on the type plate attached to the rear-view mirror plate and the
instructions on the inside of the driving tubes.
Summary:
............................................................................................................................................................2
............................................................................................................................................................3
............................................................................................................................................................6
© TAKACAT GmbH - Friedel Hacker (Dipl.-Ing.)
..............................................................................................................................................3
..............................................................................................................................................7
..............................................................................................................................................7
..............................................................................................................................................7
..............................................................................................................................................9
..............................................................................................................................11
www.takacat.com
www.takacat.eu
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TAKACAT T260LX
Summary of Contents for TAKACAT T260LX
-
Page 1: Table Of Contents
Till model „F121“: AIR YACHT Ltd - 3 Owens Rd, Epsom - Auckland 1023 - New Zealand - www.takacat.com From model „G121“: TAKACAT GmbH – Leibnizstraße 3 – 53498 Bad Breisig – Germany – www.takacat.eu Please be sure to observe the information on the type plate attached to the rear-view mirror plate and the instructions on the inside of the driving tubes. -
Page 2: Introduction
Loading must always be carried out with care, distributing loads appropriately to maintain design trim. Heavy loads must be placed as low as possible. WARNING - Do not exceed the maximum recommended number of people. Regardless of the • Page 2 © TAKACAT GmbH - Friedel Hacker (Dipl.-Ing.) -
Page 3: Delivery Package
Takacat to approx. 220 mbar. For Takacats with several hose chambers (T380LX and T420LX), first pump up the rear hose chambers to approx. 150 mbar and then the front hose chambers to approx. - Page 4 Place the two black floor end tabs on the left and right over the lower transom mount and close the respective Velcro fasteners. The middle bottom flap is used for drainage and is simply led outwards below the transom mount. Page 4 © TAKACAT GmbH - Friedel Hacker (Dipl.-Ing.)
- Page 5 Always make sure that the valve adapter is correctly locked and keep a proper distance during the pumping process so that no injuries are caused if the air hose should jump off! Page 5 © TAKACAT GmbH - Friedel Hacker (Dipl.-Ing.)
-
Page 6: Dismantling
The bailer valve is opened and closed vertically - Extended upwards = open / retracted downwards = closed. The bilge valve must be checked for correct operation before each journey. Water that has entered the boat Page 6 © TAKACAT GmbH - Friedel Hacker (Dipl.-Ing.) -
Page 7: Drainage System
7. Applies only to open transom - The transom mounts including the screw connections are made of stainless steel grade 304, also known as V2A steel. V2A-steel is harder than V4A-steel due to the Page 7 © TAKACAT GmbH - Friedel Hacker (Dipl.-Ing.) - Page 8 Takacat, especially the transom construction incl. slip wheels, must be washed with fresh water, rinsed and dried. If you use the Takacat as a tender it is sufficient if the rinsing with fresh water (freshwater) is done after the return to the mother ship. If necessary a stainless steel cleaner and a seawater resistant stainless steel protector is recommended, see www.inoxliner.com...
-
Page 9: Specifications
Specification - T260LX (open or closed transom) length/width: 2,60 x 1,56m • Draft: 0,15m • • hose diameter: 0,48m max. hose pressure: 250mbar • Max. Pressure high pressure bottom: 680mbar • • Max. persons: 3 • Max. Load: 360kg •... - Page 10 6 and the corresponding wave heights (significant wave heights up to 2 m). Such conditions may occur on unprotected inland waters, estuaries and in coastal waters in moderate weather conditions. Page 10 © TAKACAT GmbH - Friedel Hacker (Dipl.-Ing.)
-
Page 11: Builders Plate + Importer
The specifications of the products which TAKACAT distributes and/or offers as a dealer have been adopted by the respective manufacturer. TAKACAT accepts no responsibility for their accuracy. Maximum specifications apply under optimum conditions (environment, system configuration, software, etc.).
