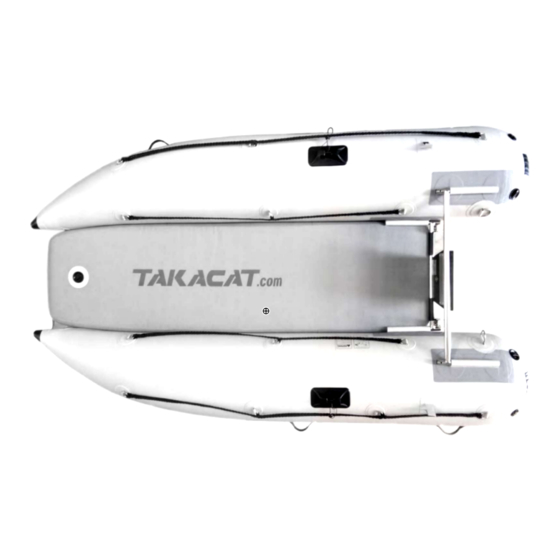

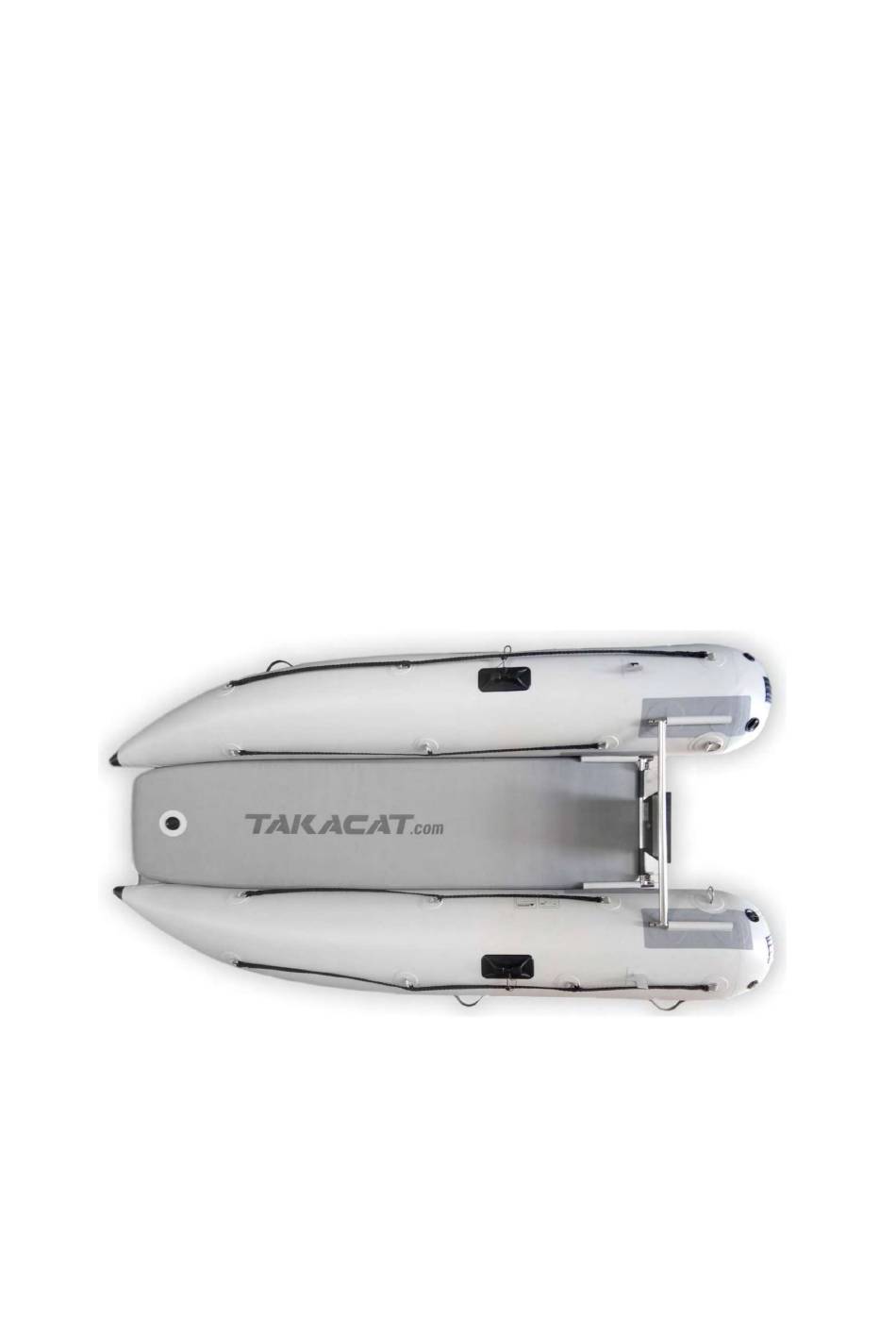

- Page 1 TAKACAT Assembly Instructions for LX Series Inflatable Boats Models 260LX – 460LX www.takacat.com Takacat Owner’s LX Series Manual - 2022...
- Page 2 INTRODUCTION Congratulations on the purchase of your new Takacat! This information sheet is to assist with the assembly, operation and storage of your inflatable boat with safety and enjoyment in mind. International Standards ISO 4892-3:2006 Built to International Standard ISO/6185 ...
-
Page 3: Safety Considerations
Never operate this boat while under the influence of alcohol or drugs. Never operate this boat unless proficient in the safe operation of inflatable boats Never allow a minor to operate this boat www.takacat.com Takacat Owner’s LX Series Manual - 2022... - Page 4 The stainless tab should be facing up when installed properly. (NB: The black flaps in the photos below are no longer on the boats as there has been a design change in 2021 – new photos will be coming soon) www.takacat.com Takacat Owner’s LX Series Manual - 2022...
- Page 5 Proper sandwich order below: a) Bolt b) SS Washer c) Back Board d) Rubber Washer e) Front Board f) SS Washer g) Hand Nut Tighten firmly by hand, no tools required! www.takacat.com Takacat Owner’s LX Series Manual - 2022...
- Page 6 NB: If you are finding the valve leaking a little air after pumping up, this is common as the boats are handmade and the valves can loosen when packing for shipping. Just use the valve and tighten a ¼ turn and it should tighten the valve again. www.takacat.com Takacat Owner’s LX Series Manual - 2022...
- Page 7 Please note: that all Takacat models are designed to be use with a short shaft (15” shaft) outboard only. 12. If you opted for the Quick Release Rod Holder, install them now into the Upper Transom Bar.
-
Page 8: Cleaning Instructions
Rinse your boat with clean fresh water whenever possible after each use. At the end of each season it is recommended you wash it with Takacat Boat wash or a soapy water (plant based) and fully rinse after. We recommend the Takacat Boat Wash and cleaners. - Page 9 Towing/Anchoring/Mooring Takacat Inflatable must be empty when it is towed by another boat. The towing line should be rigged to the bridle between the two bow D-Rings. The inflatable must be under constant supervision when it is being towed. Anchoring and mooring line should be secured to the same bridle mentioned above.
- Page 10 Remember to lift the motor shaft when coming into the beach otherwise you can cause significant damage to your motor. Do not drag the Takacat inflatable boat across rocks, sand, gravel or on pavement as damage may occur to the boat skin.
- Page 11 Takacat Owner’s LX Series Manual - 2022...
-
Page 12: Specifications
Max. Tube Pressure: 0.2bar / 3psi Max. Floor Pressure: 0.7bar / 10psi Max. Person: 5 Max. Loading: 515kg (including engine) Max. Engine Power: 15HP Max. Engine Mass: 50kg Length of Shaft: S (15”) www.takacat.com Takacat Owner’s LX Series Manual - 2022... - Page 13 Max. Engine Mass: 60kg Length of Shaft: S (15”) Please note – Takacat (Ocean Portables NZ Ltd) does not take responsibility for any misuse of this inflatable catamaran. Please always remember others around you and those onboard and be a responsible skipper.
- Page 14 Takacat Owner’s LX Series Manual - 2022...
