TAKACAT LX Series Assembly Instructions Manual
Inflatable boats
Hide thumbs
Also See for LX Series:
- Assembly instructions manual (14 pages) ,
- Assembly instructions manual (12 pages)
Related Manuals for TAKACAT LX Series
Summary of Contents for TAKACAT LX Series

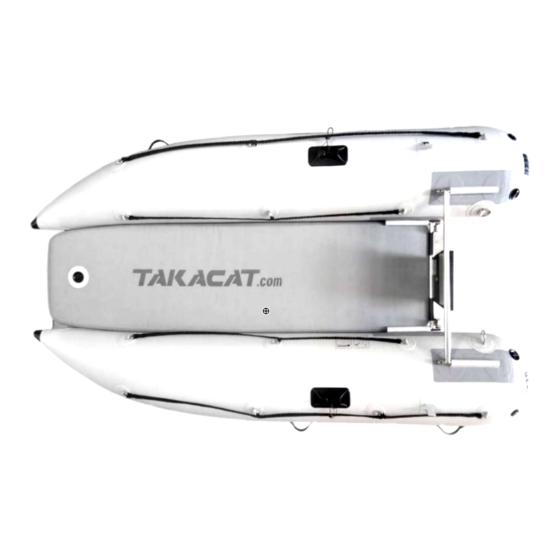

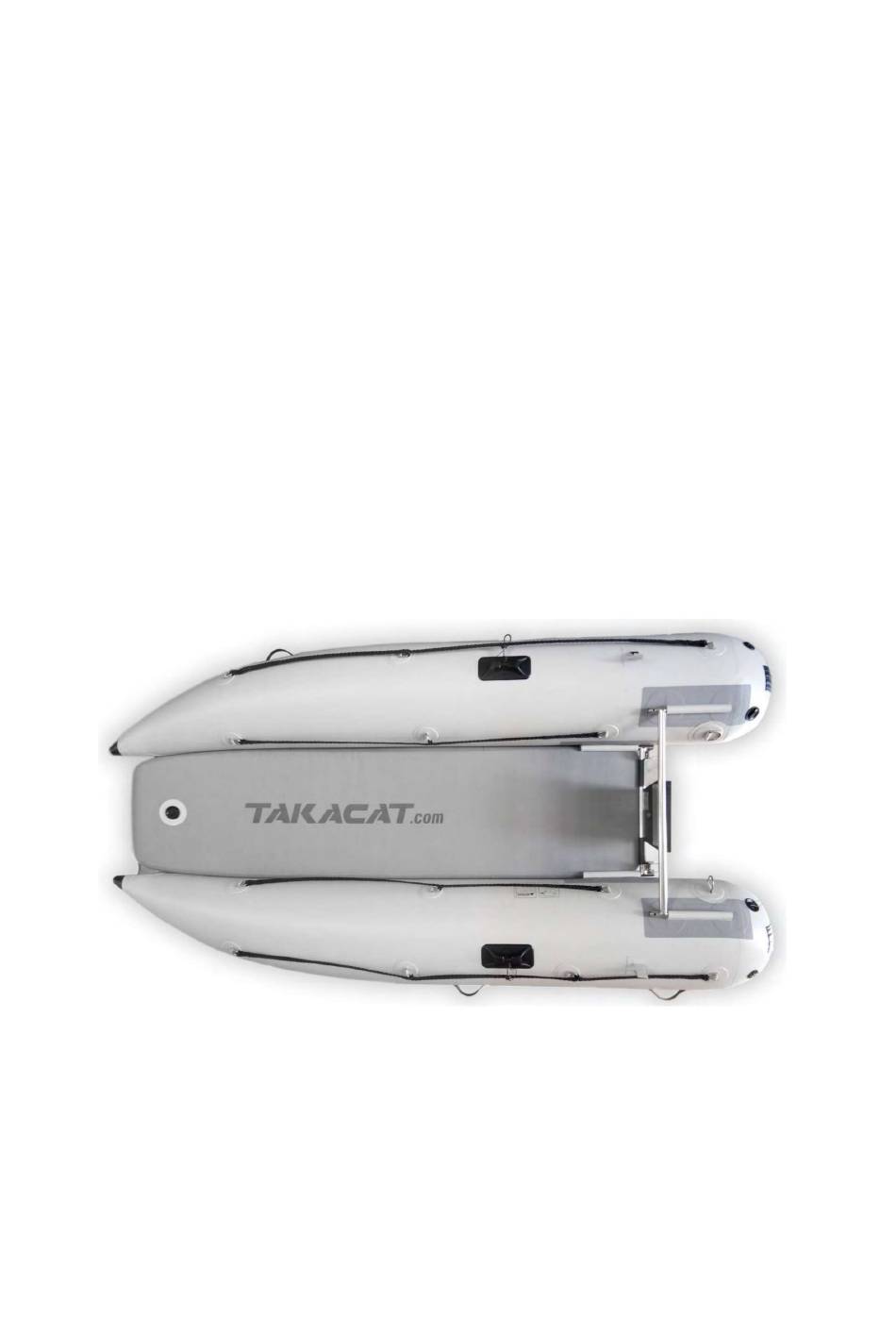

- Page 1 TAKACAT Assembly Instructions for LX Series Inflatable Boats Models 260LX – 460LX www.takacatasia.com Takacat Owner’s Manual - 2020...
- Page 2 (NB: The black flaps in the photos below are no longer on the boats as there has been a design change in 2021 – new photos will be coming soon) Note – Using a mixture of soap and water will make inserting the bar easier. www.takacatasia.com Takacat Owner’s Manual - 2020...
- Page 3 The stainless tab should be facing down when insert properly. Note – Using a mixture of soap and water will make inserting the bar easier. 5. Slot the smaller motor mount board inside the Tube Transom. www.takacatasia.com Takacat Owner’s Manual - 2020...
- Page 4 7. Unroll the inflatable floor and insert into its position. There is no need to get it perfectly under each hull tube, but the rear of the floor should be flush with the Lower Transom Bar. www.takacatasia.com Takacat Owner’s Manual - 2020...
- Page 5 The seat is designed for comfortable rowing and can also be used as a throwable flotation device if needed. 11. Assemble each oar and install. Be sure to attach retaining nut to prevent losing oars when in use. www.takacatasia.com Takacat Owner’s Manual - 2020...
- Page 6 Please note: that all Takacat models are designed to be use with a short shaft (15” shaft) outboard only. 13. If you opted for the Quick Release Rod Holder, install them now into the Upper Transom Bar.
-
Page 7: Cleaning Instructions
Towing/Anchoring/Mooring Takacat Inflatable must be empty when it is towed by another boat. The towing line should be rigged to the bridle between the two bow D-Rings. The inflatable must be under constant supervision when it is being towed. - Page 8 Remember to lift the motor shaft when coming into the beach otherwise you can cause significant damage to your motor. Do not drag the Takacat inflatable boat across rocks, sand, gravel or on pavement as damage may occur to the boat skin.
-
Page 9: Specifications
Draft: 0.2m Tube Diameter: 0.48m Max. Tube Pressure: 250mbar Max. Floor Pressure: 680mbar Max. Person: 5 Max. Loading: 515kg (including engine) Max. Engine Power: 15HP Max. Engine Mass: 60kg Length of Shaft: S (15”) www.takacatasia.com Takacat Owner’s Manual - 2020... - Page 10 Max. Engine Mass: Length of Shaft: S (15”) Please note – Takacat (Ocean Portables NZ Ltd) does not take responsibility for any misuse of this inflatable catamaran. Please always remember others around you and those onboard and be a responsible skipper.
