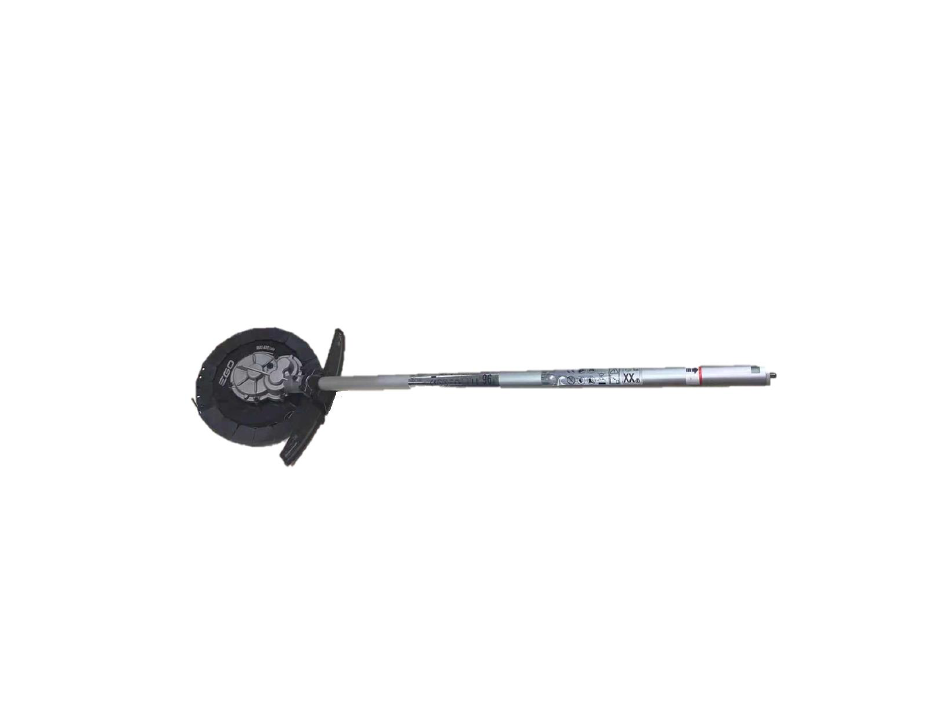

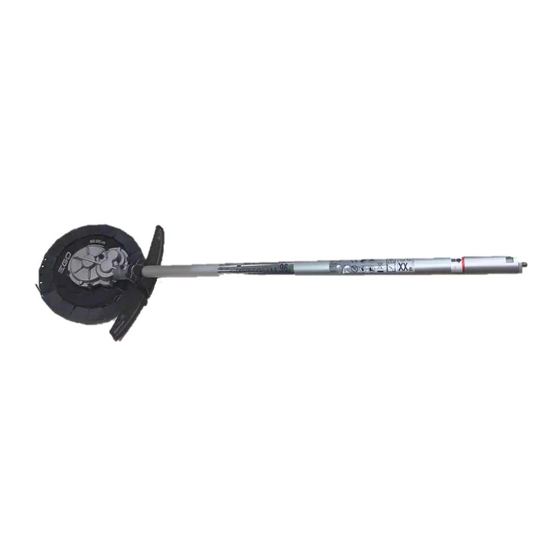

- Page 1 REPAIR GUIDELINE ROTO CUT ATTACHMENT_RTA2300 Issue Date: 2020/12/1...
- Page 2 Table of Contents RTA2300 ROTO CUT ATTACHMENT Contents Page Trouble shooting Tool list Replace the Gear Case Assembly 5-15...
-
Page 3: Troubleshooting
Troubleshooting RTA2300 ROTO CUT ATTACHMENT Problem Possible Cause Fault Position Test & Solution Stops while cutting Gear assembly issue Gear assembly Replace it... - Page 4 Tool List For Repair RTA2300 ROTO CUT ATTACHMENT NO. Tool List SPEC Remark Socket wrench Allen key Circlip plier...
- Page 5 Replace the Gear Case Assembly RTA2300 ROTO CUT ATTACHMENT 1.Loosen the nut with socket wrench anticlockwise to remove the Screw and Washer & gliding bowl ASSY. Description Part Number Qty. Screw and Washer 5620705001 Gliding Bowl ASSY 2826120001...
- Page 6 Replace the Gear Case Assembly RTA2300 ROTO CUT ATTACHMENT 2.Remove the under blade cover and blade and upper blade cover. If any parts broken , replace it accordingly. Gear Case ASSY under blade cover upper blade cover Description Part Number Qty.
- Page 7 Replace the Gear Case Assembly RTA2300 ROTO CUT ATTACHMENT 3.Remove the 6x screw and Circlip. Hexagon Socket Screw Circlip Description Part Number Qty. Hexagon Socket Screw 5620018003 Circlip 5660281001...
- Page 8 Replace the Gear Case Assembly RTA2300 ROTO CUT ATTACHMENT 4.Remove the gear case cover ASSY and gear assembly. Replace any broken parts accordingly. gear case cover ASSY gear assembly Gasket Output Shaft ASSY Holding Ring Description Part Number Qty. Description Part Number Qty.
