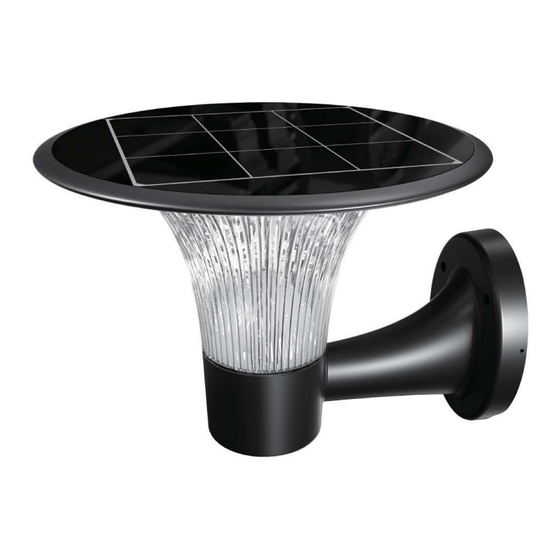

Solar led wall light with sensor

Advertisement

Quick Links

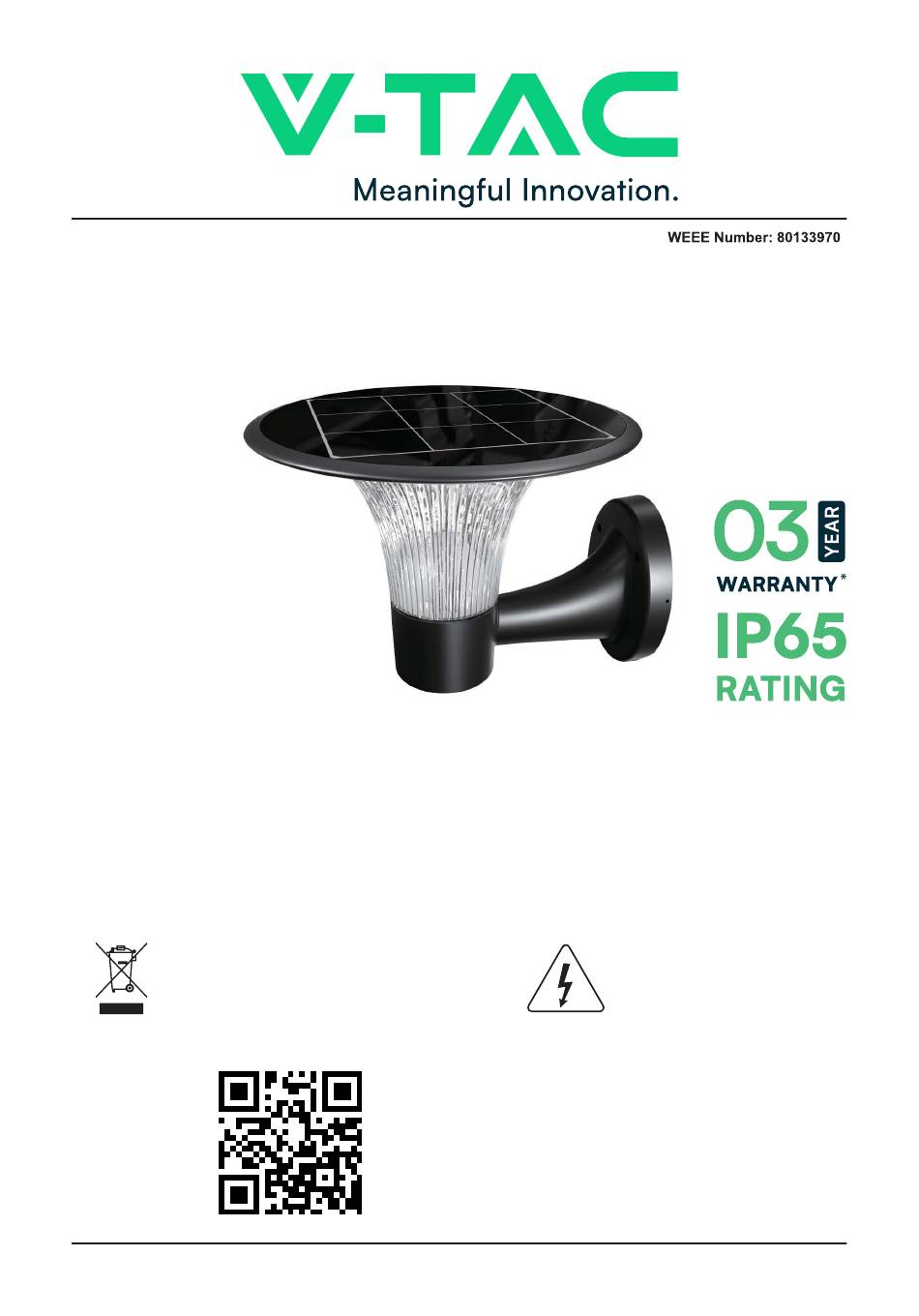

SOLAR LED WALL LIGHT WITH SENSOR
INTRODUCTION
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instruc-
tions carefully before starting the installation and keep this manual handy for future reference. If you have any
another query, please contact our dealer or local vendor from whom you have purchased the product. They
are trained and ready to serve you at the best. The warranty is valid for 3 years from the date of purchase. The
warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company
gives no warranty against damage to any surface due to incorrect removal and installation of the product. The
products are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the
warranty. This product is warranted for manufacturing defects only.
This marking indicates that this product
should not be disposed of with other
household wastes.
In case of any query/issue with the product, please reach out to us at: support@v-tac.eu
For More products range, inquiry please contact our distributor or nearest dealers.
V-TAC EUROPE LTD. Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B
INSTRUCTION MANUAL
MULTI-LANGUAGE MANUAL QR CODE
Please scan the QR code to access the
manual in multiple languages.
Caution, risk of electric shock.

Advertisement

loading
Need help?

Need help?

Do you have a question about the VT-425 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for V-TAC VT-425

  • Page 1 SOLAR LED WALL LIGHT WITH SENSOR INTRODUCTION Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instruc- tions carefully before starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product.
  • Page 2: Technical Data

    TECHNICAL DATA MODEL VT-425 / VT-426 / VT-413 23004 / 23005 / 23006 LUMENS 2200 LM POWER LEDs SMD 2835x84 pcs MONO SOLAR PANEL DC 4.5V, 5.8W BATTARY PACK 32700, 3.2V, 6000mAh, 19.2Wh RADAR SENSOR 120° / 8 Meter BEAM ANGLE 360°...
  • Page 3: Sensor Mode

    TWO OPTIONAL WORKING MODES ON/OFF/Switch Woke Mode Press the button 1st time, lamp flashes once and turns on to Sensor Mode. Press the button 2nd time, lamp flashes twice and turns to Keep Lighting Mode. Press the button 3rd time, lamp turns off. Switch Lighting CCT Please press this button to swith the color temperature.
  • Page 4 INSTALLATION WALL LIGHT INSTALLATION 4*Expansion Plug & Screw & 1* Anti-theft 1* Lamp 1*Base 1* User Manual screw 1. Drill 4 holes with a diameter of o 6mm and a depth of 45mm, fix the expansion plugs into the holes, then lock the base on the wall with screws(M4*40mm). 2.
  • Page 5 BEFORE INSTALLATION PLEASE NOTE THE RADAR( ) SHOULD TOWARD THE DESIRED AREA TO BE SENSED. 1. Drill 3 holes with a diameter of o 8mm and a depth of 65mm, fix the expansion plugs into the holes, then lock the base with screws (M5*55mm). 2.
