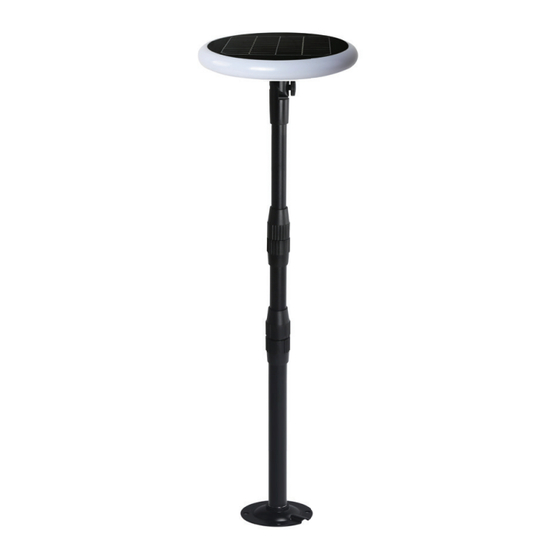

Solar garden light
Hide thumbs
Table of Contents

Advertisement

Available languages
  • EN

Available languages

  • ENGLISH, page 1

Quick Links

Download this manual

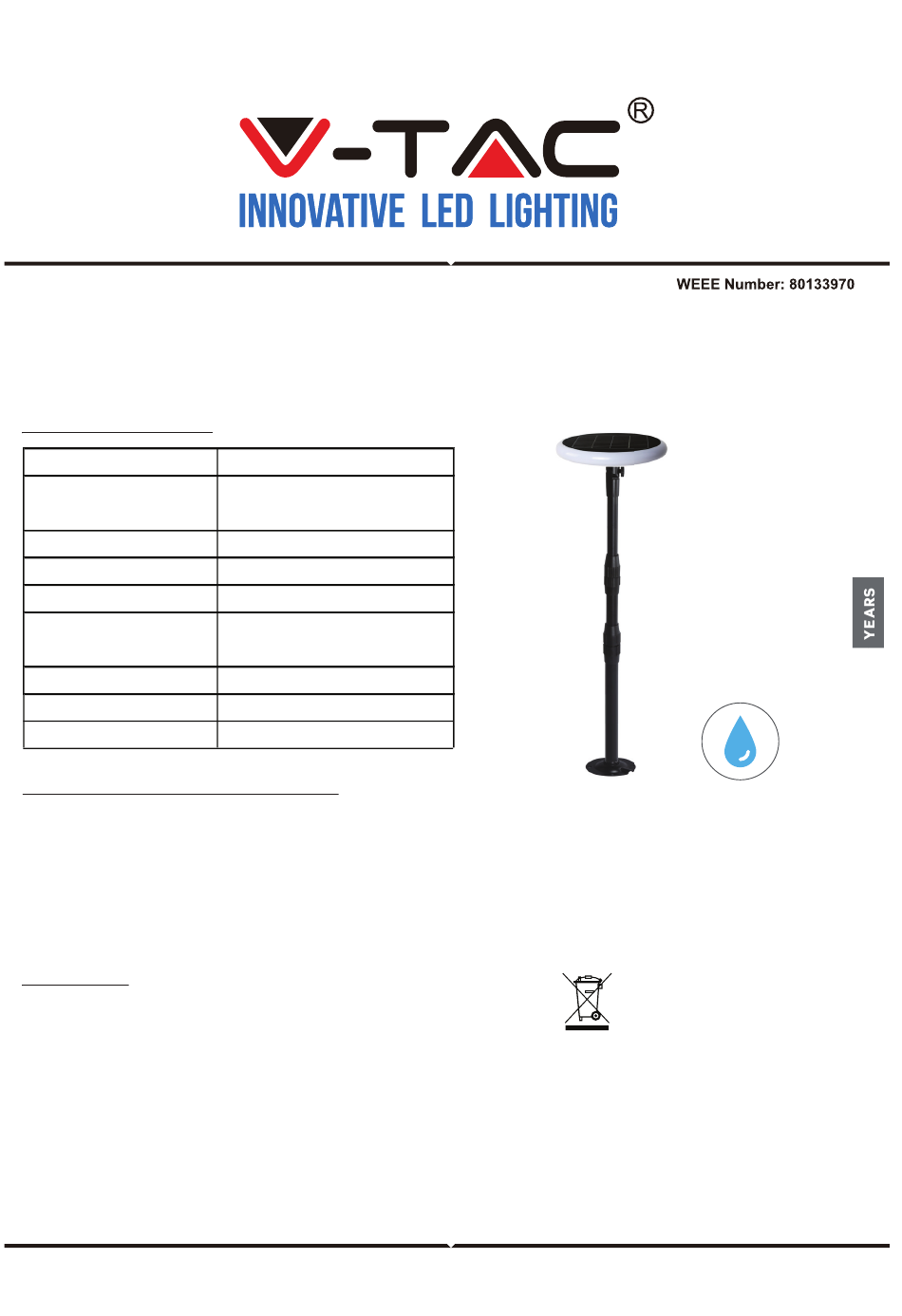

TECHNICAL DATA:
Model
Solar Panel
Wa�s
Lumens
LED Chip Type
Li-ion Battery
Woking Modes
Charging Time
Ligh�ng Time
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these
instructions carefully before starting the installation and keep this manual handy for future reference.
If you have any another query, please contact our dealer or local vendor from whom you have
purchased the product. They are trained and ready to serve you at the best. The warranty is valid for
3 years from the date of purchase. The warranty does not apply to damage caused by incorrect
installation or abnormal wear and tear. The company gives no warranty against damage to any
surface due to incorrect removal and installation of the product. This product is warranted for manu-
facturing defects only.
WARNING
1. Installation must be performed by a qualified electrician
2. Keep away from the fire.
3. Don't immerse in the water
4. This is a solar powered lamp, please install it in a location where can get efficient sunlight.
5. Please note the lighting time depends on sunshine duration & weather & working mode.
6. Built-in intelligent system is with over-charge, over-discharge and over-voltage protection, safe
and durable.
7. When the lamp is turned off, it can still get solar charging.
8. The lamp is equipped with an internal battery pack, which is replaceable. If any need, please
contact the seller for correct new battery pack.
9. Non-professionals please do not disassemble the lamp.
10. Please do not dispose the battery with household garbage to avoid explosion.
INSTALLATION INSTRUCTION
SOLAR GARDEN LIGHT
VT-948
4W, DC5.5V, Mono-crystalline
silicon with tempered glass
8W
500LM
SMD 2835
18650/2000mAh/7.4V/
14.8Wh, replaceable
2 Op�onal working mode
4-5 hrs strong sunshine
3 Nights
3
WARRANTY
This marking indicates that this
product should not be disposed
of with other household wastes.
*
IP65
RATING
