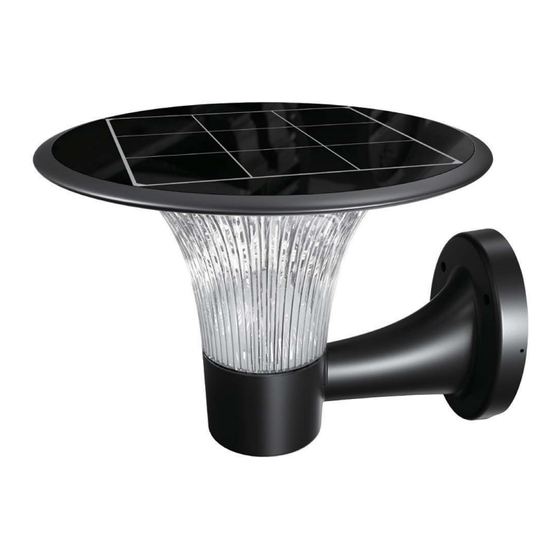

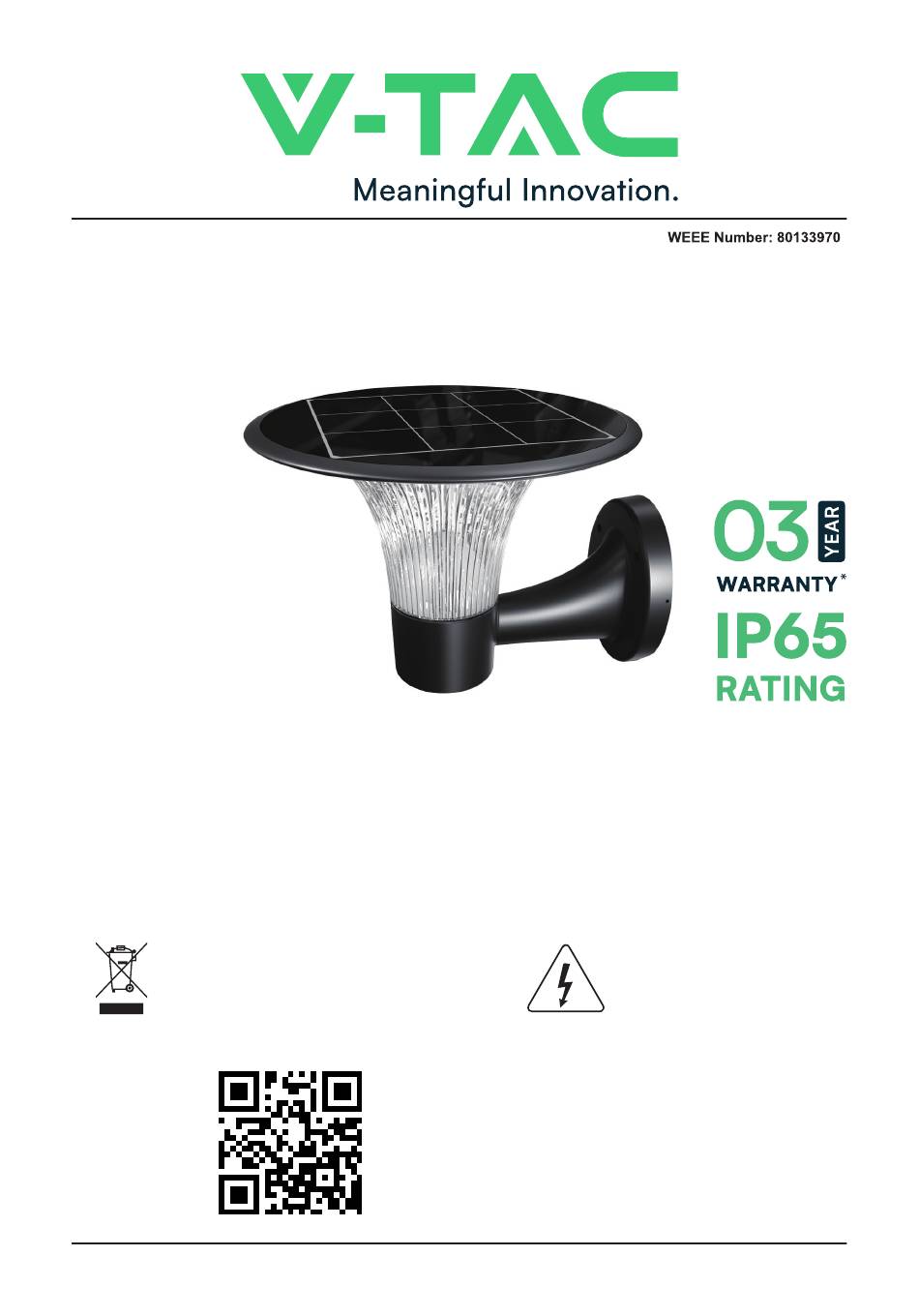

SOLAR LED WALL LIGHT WITH SENSOR
INTRODUCTION
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instruc-
tions carefully before starting the installation and keep this manual handy for future reference. If you have any
another query, please contact our dealer or local vendor from whom you have purchased the product. They
are trained and ready to serve you at the best. The warranty is valid for 3 years from the date of purchase. The
warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company
gives no warranty against damage to any surface due to incorrect removal and installation of the product. The
products are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the
warranty. This product is warranted for manufacturing defects only.
This marking indicates that this product
should not be disposed of with other
household wastes.
In case of any query/issue with the product, please reach out to us at: support@v-tac.eu
For More products range, inquiry please contact our distributor or nearest dealers.
V-TAC EUROPE LTD. Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B
INSTRUCTION MANUAL
MULTI-LANGUAGE MANUAL QR CODE
Please scan the QR code to access the
manual in multiple languages.
Caution, risk of electric shock.

Advertisement

loading
Need help?

Need help?

Do you have a question about the VT-425 and is the answer not in the manual?

Questions and answers

Summary of Contents for V-TAC VT-425

  • Page 1 SOLAR LED WALL LIGHT WITH SENSOR INTRODUCTION Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instruc- tions carefully before starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product.
  • Page 2: Technical Data

    TECHNICAL DATA MODEL VT-425 10317, 23004 LUMENS 1900 LM POWER LEDs SMD 2835x84 pcs MONO SOLAR PANEL DC 4.5V, 5.8W BATTARY PACK 32700, 3.2V, 6000mAh, 19.2Wh RADAR SENSOR 120° / 8 Meter BEAM ANGLE 360° WORK MODES SENSOR MODE; Keep Lighting Mode...
  • Page 3: Sensor Mode

    TWO OPTIONAL WORKING MODES Switch Lighting CCT Please press the On/Off button to turn on the light, and then press this button to swith the color temperature. ON/OFF/Switch Woke Mode 1. Press the button 1st time, The lamp turns on and enter Sensor Mode.
  • Page 4: Installation

    INSTALLATION Wall Light Installation 5*Expansion Plug & 1* Lamp 1*Base 1* User Manual Screw 1. Drill 4 holes with a diameter of ø8mm and a depth of 60mm, fix the expansion plugs into the holes, then lock the base on the wall with screws. 2.
  • Page 5 1. Drill 3 holes with a diameter of ø8mm and a depth of 60mm, fix the expansion plugs into the holes, then lock the base on the wall with screws (M5*55mm). 2. Press the bigger button on the lamp to turn on the lamp and select desired work mode; press the smaller button to select desired lighting color.
