- Page 1 Solar Regulator SRP0120 / SRP0240...
-
Page 2: Warning And Safety Instructions

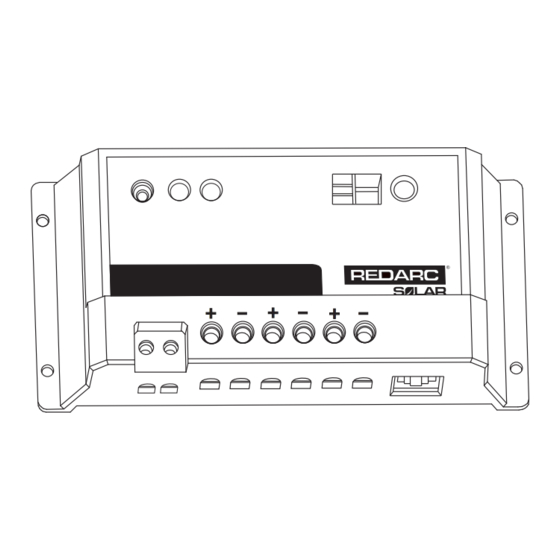

THE SOLAR REGULATOR REDARC solar regulators ensure that the power supplied by your solar panels is at the right voltage to charge your house or auxiliary batteries. REDARC solar regulators are PWM controlled and incorporate automatic system voltage detection. Our regulators are suitable for charging up to two separate battery banks and come in both 10A and 20A models which are capable of charging either 12V or 24V battery systems. -
Page 3: General Specifications
SPECIFICATIONS DIMENSIONS 146mm 153mm GENERAL SPECIFICATIONS System Voltage AGM/Gel Calcium AGM/Gel Calcium Battery Type 14.4V 14.6V 14.8V 28.8V 29.2V 29.6V Maximum Voltage* 13.6V 13.6V 13.6V 27.2V 27.2V 27.2V Float Voltage* Maximum Input Voltage 9 -15V 18 - 30V Battery Voltage Range 2 hours Boost Time Standby Current Draw... -
Page 4: Regulator Function
THE SOLAR REGULATOR REGULATOR FUNCTION Battery type Charge Priority MODE LED Indication Chart Temperature sensor Charge Frequency (on side of regulator) Battery 1 charge status Set Button Battery 2 charge status Remote Remote temperature monitor sensor (optional) (optional) CONNECTION The regulator should be connected to the battery according to the diagram above. The connection order is indicated by the numbers circled. -
Page 5: Setting Modes
SETTING MODES NOTE: The regulator will automatically sense the battery voltage. NOTE: A 24V battery system must have 24V solar panels and a 12V battery system must have 12V solar panels. Press the Set button to start the mode select process. Press the Set button to cycle through to the mode required. -
Page 6: System Setup
• When connecting panels from an existing setup, or non-Redarc brand panels, please ensure that the panels are diode protected, as they may be damaged if they are not. - Page 7 Fuse Fuse Ratings: Regulator Fuse Size SRP0120 SRP0240 Fuses are not supplied. For other installations, appropriate sized fuses must be used and should be determined according to specific installation requirements. Setup for a single AGM or Gel type battery.
- Page 8 Panel Cable kits available for second battery installation Fuse Fuse Ratings: Regulator Fuse Size SRP0120 SRP0240 Fuses are not supplied. For other installations, appropriate sized fuses Battery Battery must be used and should be determined according Bank Bank to specific installation requirements.
- Page 9 Fuse Fuse Ratings: Regulator Fuse Size SRP0120 SRP0240 Fuses are not supplied. For other installations, appropriate sized fuses must be used and should be determined according to specific installation requirements. Setup for calcium content batteries, 40% charge priority to battery 1.
- Page 10 Australian Consumer Law. Redarc Electronics Pty Ltd atf the Redarc Trust trading as Redarc Solar (“Redarc”) offers a warranty in respect of its Solar Products where the Solar Products are purchased from an authorised Redarc Solar distributor or reseller by a person (“Purchaser”), on the terms and conditions, and for the duration, outlined below in this document (“Warranty”).
- Page 11 Warranty. (where the subject of the claim is capable of being photographed); 21. Redarc shall not be responsible or liable to the Customer or any third 9.3 the serial number of the Solar Product, specified on the label party in connection with any non-performance or delay in performance affixed to the Solar Product;...
- Page 12 AUSTRALIAN DESIGNED AND ENGINEERED This product has been specified and tested in Australia in accordance with REDARC specifications and testing requirements by REDARC Engineers. You can be assured that this product meets the stringent quality levels of all REDARC products.
