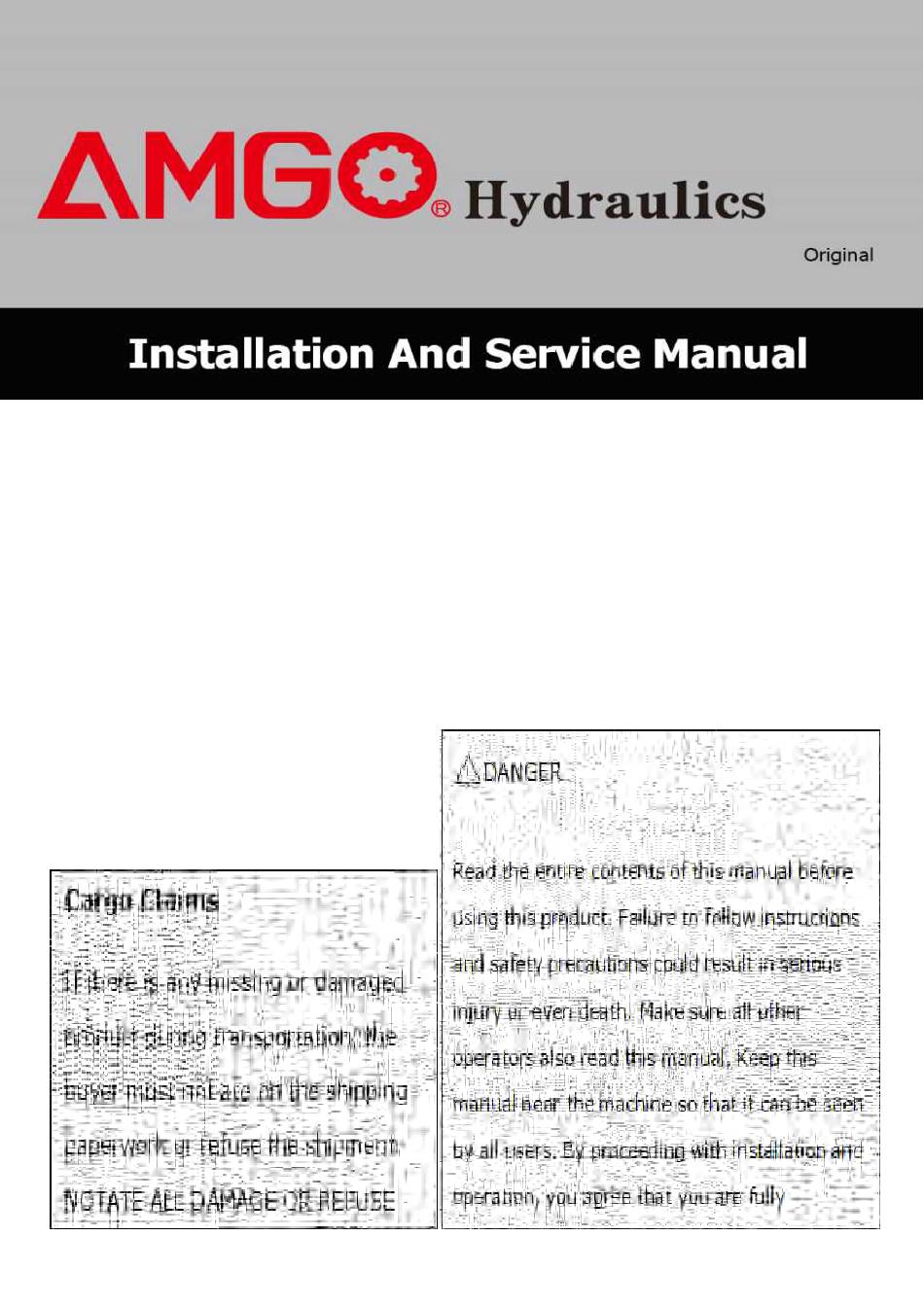

AMGO Hydraulics AX-12A Installation And Service Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
SCISSORS LIFT
Model: AX-12A，
AX-12
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the AX-12A and is the answer not in the manual?

Questions and answers

Related Manuals for AMGO Hydraulics AX-12A

Summary of Contents for AMGO Hydraulics AX-12A

  • Page 1 SCISSORS LIFT Model: AX-12A， AX-12...

  • Page 2: Table Of Contents

    CONTENTS Product Features and Specifications ............1 Installation Requirement ...............3 Steps of Installation ................4 Exploded View ..................24 Test Run ....................34 Operation Instruction ................35 Maintenance ..................36 Trouble Shooting ................38 Lift Disposal..................38...

  • Page 3: Product Features And Specifications

    · Integrated rear slip-plates · Heavy duty design, fit for a wide range of vehicle car to van and light truck. · Optional Jack (with hand pump/air-operated hydraulic pump) · Optional Turnplate Fig. 1 MODEL AX-12A SPECIFICATIONS Distance Lifting Lifting Min.
  • Page 4 Professional non-alignment Scissors Lift Model AX-12 · Electric- air control system, safety self-lock mechanism · Dual synchronous cylinders are applied to assure the lifting level on both platforms · Non-skid diamond runway; supper wide platform · Heavy duty design, fit for a wide range of vehicle car to van and truck ·...

  • Page 5: Installation Requirement

    INSTALLATION REQUIREMENT A. TOOLS REQUIRED  Rotary Hammer Drill Carpenter’s Chalk (Φ19, Φ10, Φ4,)   Hammer Screw Sets   Level Bar Tape Measure (7.5m)   English Spanner (12") Pliers   Ratchet Spanner With Socket (28 Lock Wrench ...

  • Page 6: D．power Supply

    III. STEPS OF INSTALLATION A. Location of Installatio Check and insure the installation location (concrete, layout, space size etc.) is suitable for lift installation. 1. For Standard Installation: On surface installation AX-12/AX-12A On surface installation foundation (See Fig. 4) Fig. 4...
  • Page 7 1.2 Illustration of scissors lift AX-12 on surface installation (See Fig.5). Fig. 5 1.3 Illustration of scissors lift AX-12A on surface installation (See Fig.6). Fig. 6...
  • Page 8 2. For Optional Installation: Flush mount installation 2.1 Flush mount installation foundation (Fig.7) Φ4” PVC Tube Hydraulic system, limit switch , Air source input Φ4” PVC Tube 1. The thickness of concrete at the slot bottom must be over 4’’. The bearing pressure must be over 210kg/cm.
  • Page 9 Illustration of scissors lift AX-12A with flush mount installation (Fig.9). Fig. 9 B. Check the parts before assembly. 1. Received Packaged lift, Parts box, Control cabinet, Guide ramp .e (See Fig. 10). Fig. 10...
  • Page 10 2. Move aside the lift with fork lift or hoist, and open the outer packing carefully. 2.1 Parts for on surface installation (See Fig.11, Fig.12) For Model AX-12A Fig.11 For Model AX-12 Fig.12...
  • Page 11 2.2 Parts for flush mount installation (See Fig.13, Fig.14) guide ramp Noted: Need for flush mount installation For Model AX-12A Guide ramp （510018） Fig.13 For Model AX-12 Guide ramp （510019） Fig.14...
  • Page 12 3. Open the parts box, check the parts according to the part list (See Fig.15, Fig.16 ). For AX-12 For AX-12A Fig. 16 Fig. 15 4. Check the parts of the parts bag according to the parts bag list 4.1 Parts bag for on surface installation (See Fig.17, Fig.18)
  • Page 13 4.2 Parts bag for flush mount installation (See Fig.19, Fig.20) For AX-12A Fig. 19 For AX-12 Fig. 20...
  • Page 14 1. Select a location and layout the equipment according to steps A (See Fig. 21-22). The control cabinet can be installed on the left or right according to the site. For Model AX-12A Fig. 21 For Model AX-12 Fig. 22...
  • Page 15 2. Connecting the oil hose and air line Control cabinet installed in the left of the car in direction (See Fig. 23). Connect to the A of Air solenoid valve Oil hose for Control Cabinet 175 3/16" ○ 1 1/4” x 165 11/32"...
  • Page 16 2.2 Control cabinet installed in the right of the car in direction (See Fig. 24). Install the bellows according to the drawing Connect to the A of Air solenoid valve Fig. 24 D. Install electric system 1. Wire connection for hydraulic power unit (220V) 1.1 Connect the power wire and limit switch wire according to the Wiring diagram (See...
  • Page 17 1.2 Circuit Diagram (See Fig. 28). Single phase Fig. 28 Electric Component Item Name Code Specification Item Name Code Specification Power switch 220V AC Push button Duplex Breaker Push button LOCK Duplex Breaker Push button Down Triple Lower alarm Breaker Pass Duplex button...
  • Page 18 E. Level two platforms and install anchor bolts. 1. Check by level bar, adjust the down leveling bolts(see fig.29) and add the shim until two platforms are in the same level, lowering the lift to the lowest position and adjust the up leveling bolts (see fig.30) until contacting the down leveling bolts, tighten the nut with wrench.
  • Page 19 2.2 Fix the anchor bolts. Drilling the hole for the anchor bolt with the rotary hammer drill, type the anchor bolt into the ground, use shim to adjust it to level and then fasten it with ratchet spanner (See Fig. 32). Note: The twisting force of anchor bolt is 150N.m, the length inside ground of anchor bolt must be over 3-1/2”.
  • Page 20 G. Install oil hose cover for on surface installation. 1. Tidy up the oil hose and air line, cover the oil hose cover (See Fig. 34). Using the colloidal screw to fasten the Fig. 34 oil hose cover 2. Install the oil hose cover (See Fig.
  • Page 21 H. Illustration of installing the AX-12/AX-12A optional air line kits(Fig.36) 90 fitting 12-30 Air source Fig. 36...
  • Page 22 1. Install air line kit 1.1 Connect the air line fittings with 8*6 black air line as following fig. The length of air line can be cut accordingly. (See Fig.37)   Fig.37...
  • Page 23 φ8*φ6 air line Air Source Oil-water separator View B View A 1.3 Through black air hose(8*6) to 1.2 Replace 90° air hose fitting to the hole of the base and fixing slot of three ways fitting from oil-water outer scissor separator, then through black air hose(8*6) to control cabinet and connect with screw fitting.
  • Page 24 View E View F Ø8*Ø6Air line 1.4 Air source divide into two ways by passing three ways fitting and connect with rolling jack separately. Air line 103 104 Air line View b Ø8*Ø6Air line View a 1.5 Install quick female fitting, then 1.6 Install quick female fitting, then connect it with male air line ...
  • Page 25 View G Air pump 1.7 Connect female airlines of  and  to quick male fitting on two operate jack Part list for Optional Airline Kits: Item Part# Description 10420213 Two-way fitting 10540007 T fitting 1061K094 90°bend fitting 1061K092 Hex nut M14 10430010 Washer φ14 1061K091...

  • Page 26: Exploded View

    EXPLODED VIEW MODEL AX-12A Fig.38 Optional Turnplate When installing the optional turnplate, need to place a 35mm limit block on both sides Adjusting Block for Turnplate...
  • Page 27 MODEL AX-12 Fig.39...
  • Page 28 PARTS LIST For Model AX-12A, AX-12 Note Item Part# Description AX-12A AX-12 11520003 Shelf assy. 11530002A Inner Scissors 11530003A Outer Scissors 10520011 Air Cylinder 10420153 Cap Head Bolt 10510034 Hex Bolt 10510040 Limit switch assy. 11520013A Connecting Pin 10206032 Snap Ring...
  • Page 29 Qty. Item Part# Description Note AX-12A AX-12 10420157 Steel Ball 11570003 Rear Slip Plate 11520037 Pin for Rear Slip Plate Plate for Adjustable Turnplate 11560003 11530001B Runway Connecting Bar 10206023B Hex Nut M12 10420026 Lock Washer 12 10206006 Washer 12...
  • Page 30 T- Fitting Qty. Item Part# Description NOTE AX-12A AX-12 1004334013 Straight Fitting for air lin 10680005 Cap Head Bolt M6*10 10420097 90° Fitting 1/4NPT(M)*1/4JIC(M) 10510024 Fitting G3/8-19(M)*1/4NPT(F) 071204 Power Unit Straight Fitting for power unit 10440009 3/8SEA (M)*1/4NPT(M) 10540500A Parts box（On surface installation）...
  • Page 31 CYLINDERS Add grease to lubricate regularly Add grease to lubricate regularly Fig. 40...
  • Page 32 Parts list for Cylinder Part# Description Item Note 11-1 11530032 Main Cylinder 11-2 10530025 O- Ring (φ98*5.3) Head Cap（Main） 11-3 11530033 11-4 10530028 Support Ring φ60*φ66*15 11-5 10530024 Y- Ring φ60*φ70*6 11-6 10530026 Dust Ring φ60*φ68 11-7 11530034 Piston Rod (Main) 11-8 10520054 O- Ring...

  • Page 33: Control Cabinet

    CONTROL CABINET 12-35 12-34 12-9 12-26 12-27 12-28 12-8 12-11 Fig.41 Parts list for Control Cabinet Item Part# Description 12-1 10201094 Power indicator Button UP 12-2 10420071 12-3 10420071 Button LOCK Button DOWN 12-4 10420072 12-5 11510724 Control Panel 12-6 41010217 Power Switch (QS) 12-7...

  • Page 34: Power Unit

    Item Part# Description 12-16 10620082 Terminal 10202046 Breaker 2P only for Single phase 12-17 10202047 Breaker 3P only for Three phase 12-18 10202049 Breaker 1P 12-19 10580114 Transformer (TC) 12-20 1061K052 Cap head bolt 12-21 10420135 Timer Relay Base 12-22 10420141 Intermediate Relay(KA) 12-23...
  • Page 35 Parts list for Electric Power Unit 220V/60Hz/1 Phase Item Part# Description 81400180 Rubber pad 81400250 Start capacitor 81400200 Run capacitor 10420148 Cap head bolt 81400066 Capacitor cap 81400363 Motor Connecting Shaft 80101027 Manifold block 81400333 Hex plug 81400266 Relief valve 81400566 Check Valve 81400420...

  • Page 36: Test Run

    TEST RUN 1. Preparation before Synchronous adjustment a. Fill the reservoir with hydraulic oil. In consideration of power unit’s durability and keep the equipment running in the perfect condition, please use Hydraulic Oil 46# . b. Turn the power on, push button UP to check if the rotated direction of motor is correct.

  • Page 37: Operation Instruction

    VI. OPERATION INSTRUCTIONS To lift vehicle 1. Keep clean of site near the lift, and down the lift to the lowest position. 2. Drive vehicle on the platforms and pull the brake. 3. Turn on the power and push the button “Up”, raise the lift to the working position. Note: make sure the vehicle is steady when the lift is rising 4.

  • Page 38: Maintenance

    VII. MAINTENANCE SCHEDULE Monthly: 1. Re-torque the anchor bolts to 150 Nm. 2. Check all fittings, bolts and pins to insure proper mounting. Note: All anchor bolts should take full torque. If any of the bolts does not function for any reason, DO NOT use the lift until the bolt has been replaced. 3.
  • Page 39 For Secondly Cylinder For shaft of piston rod of (3 moving parts) Secondly cylinder Fig.50 (1 moving parts) Fig.51 Every six months: 1. Make a visual inspection of all moving parts for possible wear, interference or damage. 2. Check and adjust the platform as necessary to insure level lifting. 3.

  • Page 40: Trouble Shooting

    VIII.TROUBLE SHOOTING TROUBLE CAUSE REMEDY 1.Start Button does not work 1. Replace start button 2.Wiring connections are not in good 2. Repair all wiring connection condition Motor does not run 3. AC contactor burned out 3. Replace AC contactor 4. Motor burned out 4.
  • Page 41 72257306 2024/04...

This manual is also suitable for:

Ax-12
