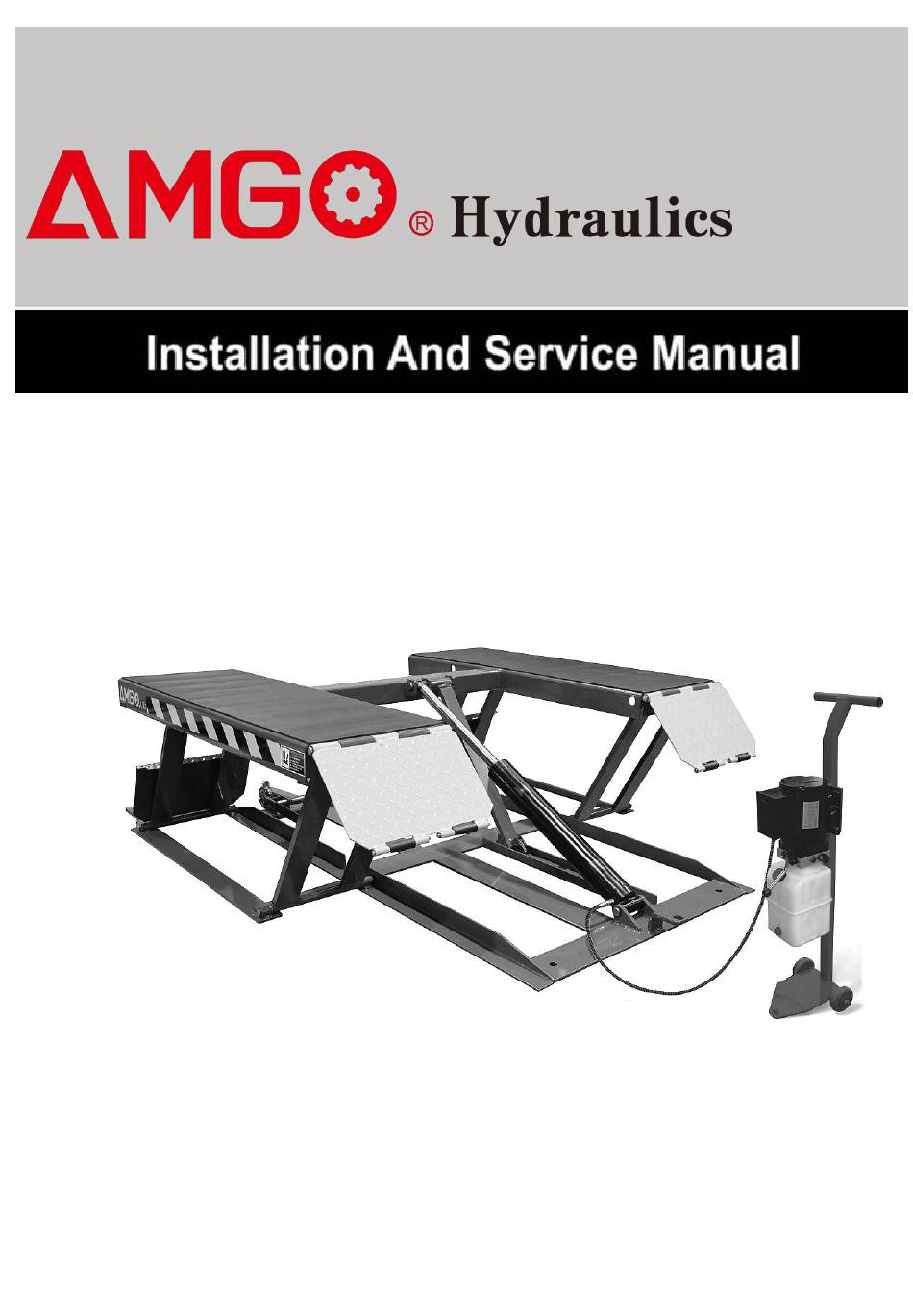

  • Page 1 Original Portable Low-rised scissors lift Model:LR06...

  • Page 2: Table Of Contents

    CONTENTS Product Features and Specifications ............1 Installation Requirement ................2 Step of Installation .................. 3 Exploded View ..................7 Operation Instructions ................13 Maintenance Schedule ................14 Trouble Shooting ................... 15 Lift disposal ..................15...

  • Page 3: Product Features And Specifications

    I. PRODUCT FEATURES AND SPECIFICATIONS (See Fig.1) PORTABLE LOW-RISED MODEL LR06 · Self-locking safety device: 3 stage safety lock, mechanical lock, automatic release. · Portable unit is easy to move with the power unit stand · High speed: From 0-23 5/8” just 21 seconds ·...

  • Page 4: Installation Requirement

    II. INSTALLATION REQUIREMENT A. Tools requirement Screw Set Grease gun   Socket Head Wrench Pliers (8″)   Wrench sets ＃ ＃ ＃ ＃  ：(13 、15 、17 、19 Fig.2 B. Power requirement The electrical source must be 1.0HP minimum.

  • Page 5: Step Of Installation

    III. STEPS OF INSTALLATION A. Check the parts before assembly, make sure all the parts are completed. Packaged lift, Parts box, Power Unit and Power Unit Stand. Move aside the parts, Open the outer packing and check the parts according to the shipment parts list (See Fig.
  • Page 6 Check the parts of the parts bag according to the parts bag list (See Fig. 5) Fig. 5 B. Install hydraulic power unit (See Fig. 6) Fig. 6...
  • Page 7 C. Install fitting to power unit, and then connecting oil hose (See Fig.7). Fig. 7...
  • Page 8 Install electrical system Connect the power source on the data plate of power unit. Note: For the safety of operators, the power wiring must contact the earth well. Single phase motor 1. Circuit diagram (See Fig. 8) Fig.8 2. Connection step (See Fig.

  • Page 9: Exploded View

    IV. EXPLODED VIEW MODEL LR06 Fig. Rollers Fig.
  • Page 10 PARTS LIST FOR MODEL LR06 Note Item Part# Description QTY. 11630001 Platform 10206019 Snap ring φ19 11630003 Pin for drive-thru ramp φ19*452 11630004 Drive-thru ramp 10209010 Snap Ring φ10 11620043 Pin for roller of drive-in ramp 10620063 Roller of drive-pin ramp (black nylon) 11630005 Connecting pin for cylinder φ25*210...
  • Page 11 Cylinder Fig. 12 Item Part No. Description QTY. Note 11630029 Bore Weldment 11630026 Piston Rod 10201034 Bleeding Plug 11630030 Head cap 10209078 Dust ring 10620058 O-Ring inside head cap 10620049 O-Ring outside head cap 11630028 Piston 10206069 Small O-Ring for piston 6-10 10630027 O-Ring outside piston...
  • Page 12 Manual Power Unit (071103) Fig. 13...
  • Page 13 Manual Power Unit 110V/60HZ Single Phase Item Part No. Description QTY. Note 81400180 Rubber pad 81400250 Start capacitor 81400200 Run capacitor 10420148 Cap head bolt with washer 81400066 Cover for capacitor 81400363 Motor connecting shaft 80101013 Manifold block 10209149 Lock washer 81400276 Iron plug 81400259...
  • Page 14 Illustration of hydraulic valve for power unit Protective ring Relief valve Oil return port Release valve Throttle valve Handle for release valve Oil Outlet Oil Outlet Check valve Fig. 14...

  • Page 15: Operation Instructions

    V. OPERATION INSTRUCTIONS 1. Install the oil hose between oil cylinder and power unit, connect well the power supply wire. The machine can be ready to use. 2. The roller must be disengage when lifting vehicle . To raise and lock the (See Fig.17) lift: Press the button up till the lift is raised to the required height and the locks are in engaged...

  • Page 16: Maintenance Schedule

    1. There are four fixed holes in the machine, can fix the machine on ground by 3/4 X 5 1/2” anchor bolts (See Fig.19) Fig.19 VI. MAINTENANCE SCHEDULE Monthly: 1. Lubricate all moving parts with lubricant. 2. Check all connectors, bolts and pins to insure proper mounting. 3.

  • Page 17: Trouble Shooting

    3. Make at least one full trip raising and lowering per day. For exhausting the air from the system, which could effectively avoid the corrosion of the cylinder and damage to the seals caused by presence of air or water in the system. Protect the outer surface of the oil cylinder’s piston rod from bumping and scratching, and timely clean up the debris on the oil cylinder dust-ring and the piston rod.
  • Page 18 AMGO HYDRAULIC CORPORATION 1931 Joe Rogers Blvd, Manning, South Carolina, USA Tel: (803) 505-6410 Fax: (803) 505-6410 Manual Part No. : 722215602 Revision Date: : 2022/...
