AMGO Hydraulics EM06 Installation And Service Manual

Mid-rised scissors lift
Hide thumbs

Advertisement

Quick Links

Download this manual
Original
MID-RISED SCISSORS LIFT
Model: EM06

Advertisement

loading
Need help?

Need help?

Do you have a question about the EM06 and is the answer not in the manual?

Questions and answers

Related Manuals for AMGO Hydraulics EM06

Summary of Contents for AMGO Hydraulics EM06

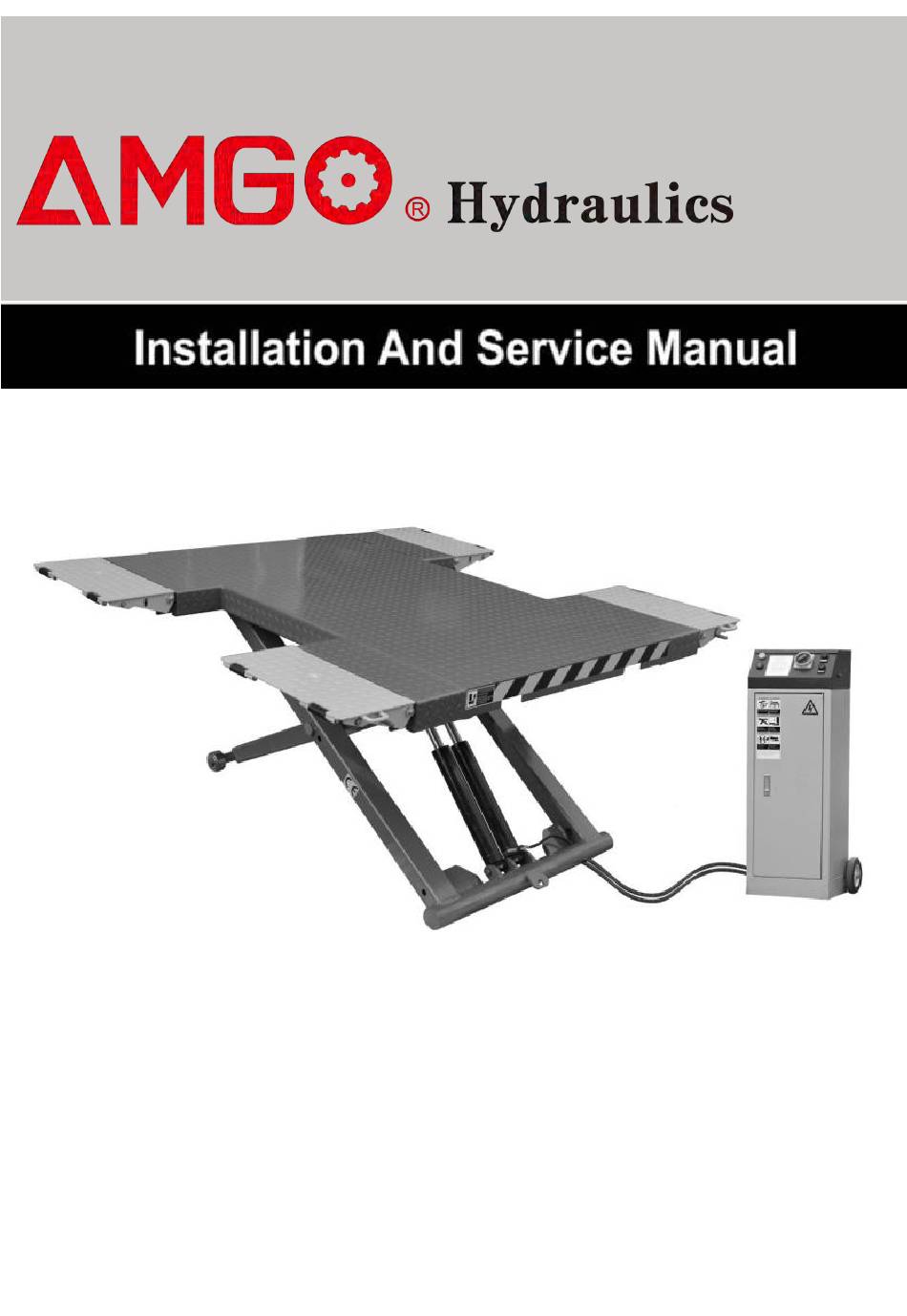

  • Page 1 Original MID-RISED SCISSORS LIFT Model: EM06...

  • Page 2: Table Of Contents

    CONTENTS Product Features and Specifications …………………………………………………………………… 1 Installation Requirement ……………………………………………………………………………………… 2 Steps of Installation……………………………………………………………………………………………… 3 Exploded View ……………………………………………………………………………………………………… 9 Operation Instructions ………………………………………………………………………………………… 16 Maintenance Schedule………………………………………………………………………………………… 17 Trouble Shooting…………………………………………………………………………………………………… 18 Lift Disposal…………………………………………………………………………………………………………… 18...

  • Page 3: Product Features And Specifications

    I. PRODUCT FEATURES AND SPECIFICATIONS MID-RISED MODEL EM06 · Low voltage(24V) electric control system, refinement control cabinet. · Dual oil circuit design and hydraulic self-lock system · Dual hydraulic cylinders to make the operation more stable. · Movable drive–in ramps and extended platforms accommodate varying wheelbase vehicles.

  • Page 4: Installation Requirement

    II. INSTALLATION REQUIREMENT A. TOOLS REQUIREMENT Grease Gun Screw Set   Hook Spanner English Spanner (40~42mm) (12″)   Pliers Wrench sets  ＃ ＃ ＃ ＃  、15 、17 、19 Fig. 2 B. Equipment storage and installation requirements. The equipment should be stored or installed in a shady, normal temperature, ventilated and dry place.

  • Page 5: Steps Of Installation

    C. The equipment should be unload and transfer by forklift. Fig.3 D. POWER SUPPLY The electrical source must be 2.0HP minimum. The source cable size must be 2.5mm² and in good condition of contacting with floor. III. STEPS OF INSTALLATION A.
  • Page 6 B. Check the parts before assembly, make sure all the parts are completed. Packaged lift, Parts box, Control cabinet and the optional wheel dolly. Move the parts aside, open the outer packing and check the parts according to the shipment list (See Fig.
  • Page 7 C. Lay out the lift and control cabinet according to step A and connect oil hoses (See Fig. 7) Fig.7...
  • Page 8 D. Hydraulic system (See Fig.8) Fig. 8...
  • Page 9 E. Install Circuit System 1. 220V Circuit connection 1.1 Connect the power source wire and limit switch according to the Wiring diagram (See Fig.9) Earth Wire Low Limit High Limit Power Wire Hydraulic Motor Wire switch wire B switch wire A solenoid valve Fig.9...
  • Page 10 2. Limit switch installation illustration 2.1 Higher limit switch illustration (See Fig.11) When the lift reaches to 1010mm Slider High Limit height, the sliders will access to the Switch drive lever of limit switch and stop lifting. Fig.11 2.2 Lower alarm device instruction (See Fig.12) Platform When the lift is lowered to 300 mm...

  • Page 11: Exploded View

    IV. EXPLODED VIEW Model EM06 Fig.13...
  • Page 12 PARTS LIST FOR EM06 Note Item Part# Description QTY. 11650001 Platform 10206032 Snap Ring 11640006 Connecting Shaft for Cylinder 10640007 Cylinder 11650049 Cylinder Base Pin 10610019 Self-locking Nut 10610108 Washer 11650003 Inner Scissor Pin 10650002 Control Cabinet 11640016 Inner Scissors...
  • Page 13 Item Part# Description QTY. Note 10650010 Wheel dolly assy.(optional) 1061K111 Straight Fitting for cylinder 10209060 90 Fitting for Power Unit 10650500 Parts Box 10420097 90 Fitting 10201108 Fitting 071203 Power Unit CONTROL CABINET Part #：10650051（Single Phase） Fig.14...
  • Page 14 Parts for Control Cabinet Item Part# Description QTY. Note 11650651 Terminal Blocks Panel for Installing Element 10620082 Cup head screw 1061K052 10202051 Breaker 1P 10420134 24V AC Contractor (KM) 10420084A 24V Transformer (TC) 10202049 Breaker 1P 10202046 Breaker 2P (Single Phase only) 10217011 Hex nut 8-10...
  • Page 15 WHEEL DOLLY (Optional) CYLINDER 38-4 38-3 38-2 38-1 Fig.16 Fig. 15 PARTS FOR CYLINDER Item Part# Description QTY. Note 11640125 Bore Weldment 11640031 Piston Rod 10201034 Bleeding Plug 11640122 Head cap 10209078 Dust ring 10201032 O - Ring 10201035 O - Ring 11201028 Piston 10206069...
  • Page 16 ELECTRIC POWER UNIT 220V, 60HZ/1 Phase Fig. 17...
  • Page 17 Parts for Electric Power Unit 220V/60Hz/1 Phase 81400180 Rubber pad Start capacitor 81400130 81400088 Running capacitor 10420148 Screw, Washer 81400066 Cover of capacitor Motor connecting shaft 81400363 Manifold block 80101015 81400333 Wash 81400266 Relief valve 81400566 Check valve 81400420 Solenoid valve coil 81400423 Electric pressure relief valve 10209149...

  • Page 18: Operation Instructions

    AMGO Electric power unit valve illustration Relief valve Hydraulic Check Hydraulic Check solenoid valve solenoid valve valve valve Outlet Outlet Fig. 18 V. OPERATION INSTRUCTIONS 1. Install the oil hoses between oil cylinders and power unit, connect the power wire. The machine can be ready to use.

  • Page 19: Maintenance Schedule

    VI. MAINTENANCE SCHEDULE Monthly 1. Lubricate all moving parts with lubricant (See Fig.20) Fig. 20 2. Check all connectors, bolts and pins to insure proper mounting. 3. Make a visual inspection of all hydraulic hoses/lines for possible wear or leakage. Every six months 1.

  • Page 20: Trouble Shooting

    VII. TROUBLE SHOOTING TROUBLE CAUSE REMEDY 1. Button does not work 1. Replace button 2. Wiring connections are not in good 2. Repair all wiring connections condition Motor does not 3. Motor burned out 3. Repair or replace motor 4. Safety Switch is damaged 4.
  • Page 21 AMGO HYDRAULIC CORPORATION 1931 Jo Rogers Blvd, Manning, South Carolina, USA Tel: (803) 505-6410 Fax: (803) 505-6410 Manual Part No.: 72175407 Revision Date: 2020/08...
