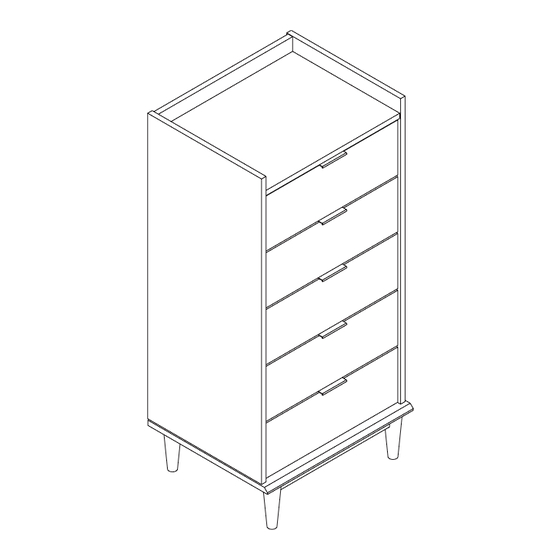

Modern wood dresser

Advertisement

Quick Links

Revised 02/2024-V2

Advertisement

loading
Need help?

Need help?

Do you have a question about the Lee LEEB3B-T and is the answer not in the manual?

Questions and answers

Summary of Contents for Walker Edison Lee LEEB3B-T

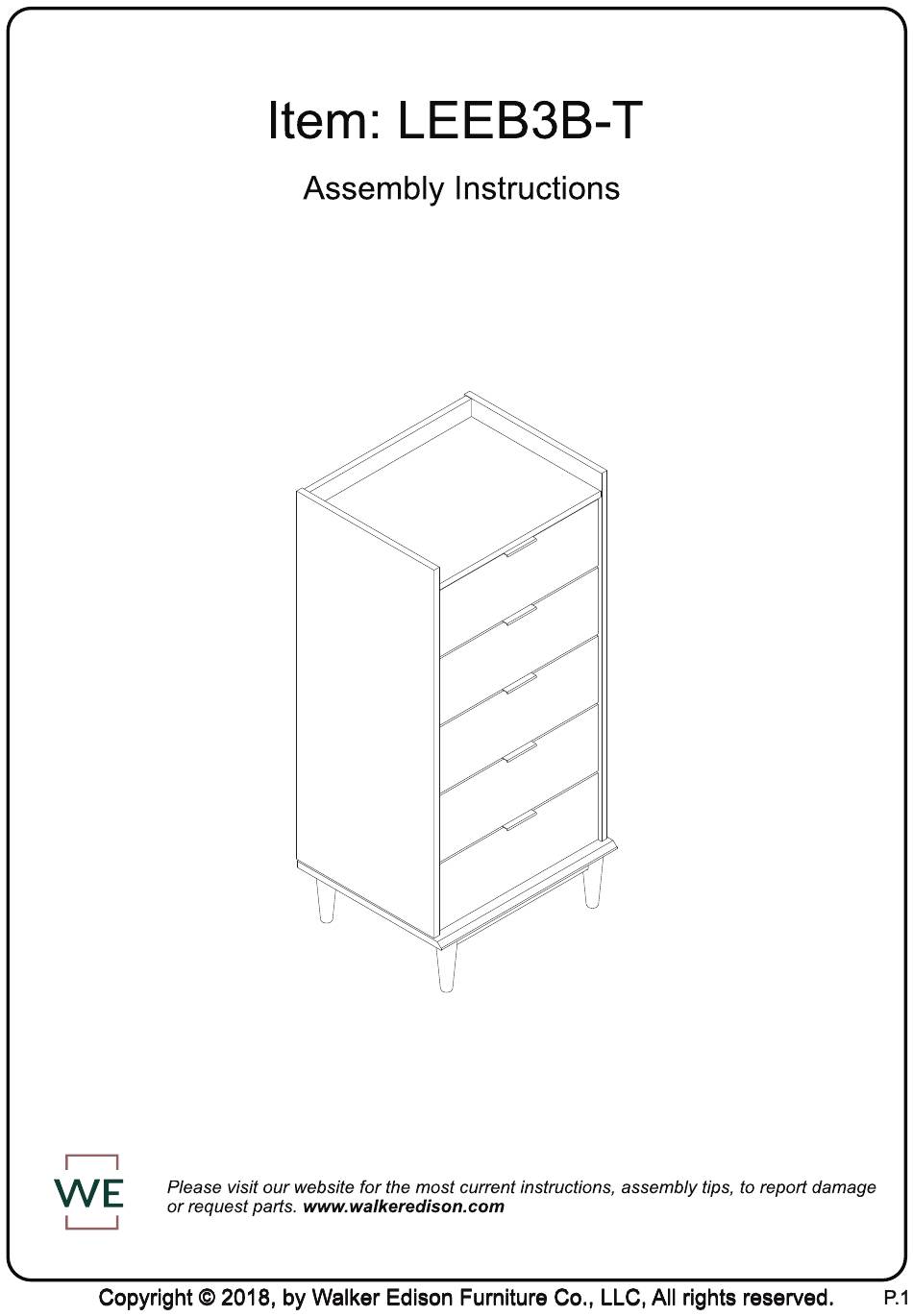

  • Page 1 Revised 02/2024-V2...
  • Page 2 A Phillips head screwdriver and hammer are required for the assembly of this product.
  • Page 4 41 pcs Ø8*30mm Wooden dowel Ø10*20mm Wooden dowel 30 pcs Ø4,0*40mm Screw 22 pcs 10 pcs Ø3,0*12mm Screw Screw Ø3,5*30mm 23 pcs Ø15*12mm 30 pcs Cam lock Ø6*31mm Cam bolt 30 pcs 07 pcs Ø3,5*20mm Screw Wooden dowel 10 pcs Ø8*40mm Screw Ø4,0*25mm...
  • Page 5 Insert wood dowel (B) into parts 17. Ø10*20mm Insert wood dowel (A) into parts 01, 15, 21, 34, 36, 42 and 43. Ø8*30mm...
  • Page 6 Step 3 1 - Ensure cam bolt is installed straight and not at an angle. 2 - Tighten cam bolt until shoulder on cam bolt is flush. Do not over-tigh- ten. Attach cam bolt (G) into the holes in parts 08, 42 and 43 with Phillips head screwdriver.
  • Page 7 Secure parts 17 to parts 42 and 43 with screw (J) Step 4 and Phillips head screwdriver. Ø4,0*25mm...
  • Page 8 Step 5 Secure part 15 to part 01 with screw (E) and Phillips head screwdriver. Ø3,5*30mm Step 6 Align the opening in cam lock to the cam bolt and press into opening. Using a screwdriver, rotate the cam lock until it engages with the cam bolt and locks in place (anywhere between 90-180 degrees).
  • Page 9 Step 7 Fit part 42 to parts 01, 15 and 44. Insert Cam lock (F) in the hole of the parts 01 and 44 and attach with Phillips head screwdriver. Ø15*12mm...
  • Page 10 Step 8 Secure part 04 to parts 42 and 43 with screw (C) and Phillips head screwdriver. Ø4,0*40mm P.10...
  • Page 11 Secure parts 34 to parts 36 with screw (C) Step 9 and Phillips head screwdriver. Ø4,0*40mm Step 10 Secure parts 21 to parts 36 with screw (C) and Phillips head screwdriver. Ø4,0*40mm P.11...
  • Page 12 Step 11 Fit parts 34 and 36 to part 04. Secure parts 21 and 34 to part 04 with screw (C) and Phillips head screwdriver. Ø4,0*40mm Rotate 90° Step 12 Insert Cam lock (F) in the hole of the part 15 Ø15*12mm and attach with Phillips head screwdriver.
  • Page 13 Step 13 Insert part 16 into parts 01, 04, 42 and 43 Secure part 16 into to parts 01 and 04 with screw (H) and Phillips head screwdriver. Name and address of the supplier and date of production. BACK Ø3,5*20mm Step 14 Rotate 90°...
  • Page 14 Step 15 Attach parts 05, 06 and 07 to part 08. Insert Cam lock (F) into the holes in the parts 05, 06 and 07 and attach with Phillips head screwdriver. Ø15*12mm Step 16 Insert part 24 into grooves to the parts 05, 06 and 07, and secure part 10 with screw (E) and Phillips head screwdriver.
  • Page 15 Step 17 Attach Handle (N) with screw (D) and Phillips head screwdriver . ø3,0*12m Step 18 Insert wood dowel (I) on the inside of all drawers, with the drawer inside the unit after having passed the wood dowel that is in the drawer slide. The dowel is not flush with the panel, it is a little inside the drawer to help when you need to remove the lock dowel to remove the drawer.
  • Page 16 Step 19 Wall anchor and hardware are included with this product. Please make sure hardware is suitable for your walls before types of anchors. Ø3,5*30mm Ø6*35mm P.16...
  • Page 17 Step 20 41 lbs 18 kg 15 lbs 6,8 kg P.17...
