ETI NETCOM ADH Replacement Procedure page 4

CANISTER REMOVAL AND
REPLACEMENT
To replace the air drying canisters
(25528 and 25529) in an ADH
NETCOM Automatic Air Dehydrator
with AC power or an ADH NETCOM
with Redundant DC power, perform
the steps below. Refer to Figure 1.
To replace the canisters in an ADH
NETCOM AC NEMA unit, proceed to
page 8.
To ensure proper identification of the
canisters, as shown in Figure 1 ,
canister 1 is the left side canister and
canister 2 is on the right.

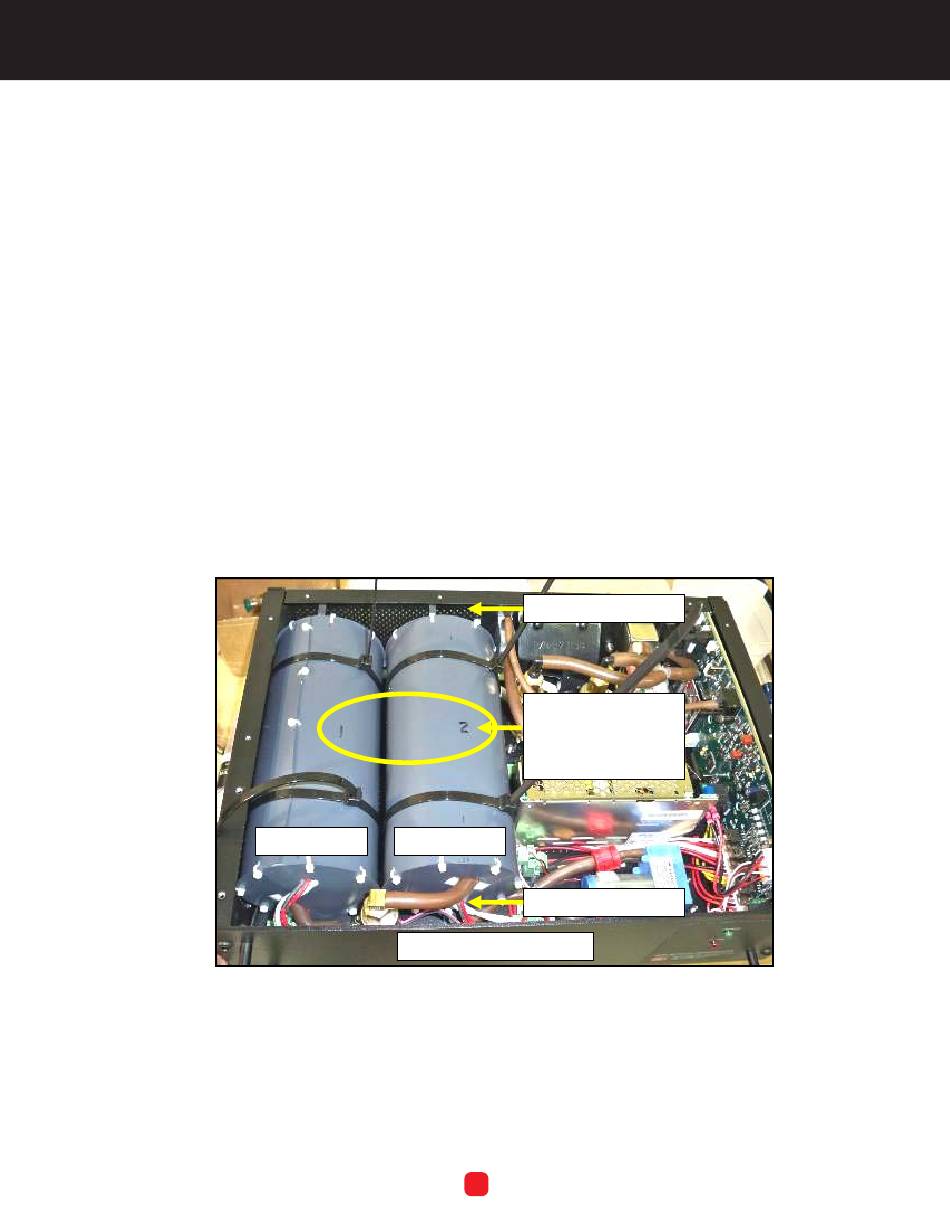

Figure 1. THE TWO ADH NETCOM AIR DRYING CANISTERS.
South Bend, Indiana USA | networketi.com
(P/N 25528) (P/N 25529)
(Front of Machine)
NOTE:
Shut off machine power.
1.
Disconnect unit from installation
2.
location and move to well-lit
work bench. Make sure to retain
all mounting hardware.
Remove and retain the four
3.
screws and washers securing the
top front panel to the unit. Next,
remove and retain the eight
screws and washers securing the
top rear panel to the unit. The
two sizes of mounting hardware
are not the same and are not
interchangeable.
(Outlet Side)
Though numbered
here, the canisters
in your unit might
not be labeled.
(Inlet Side)
4
ADH INSTRUCTION MANUAL | PART NO. 24056 REV B
