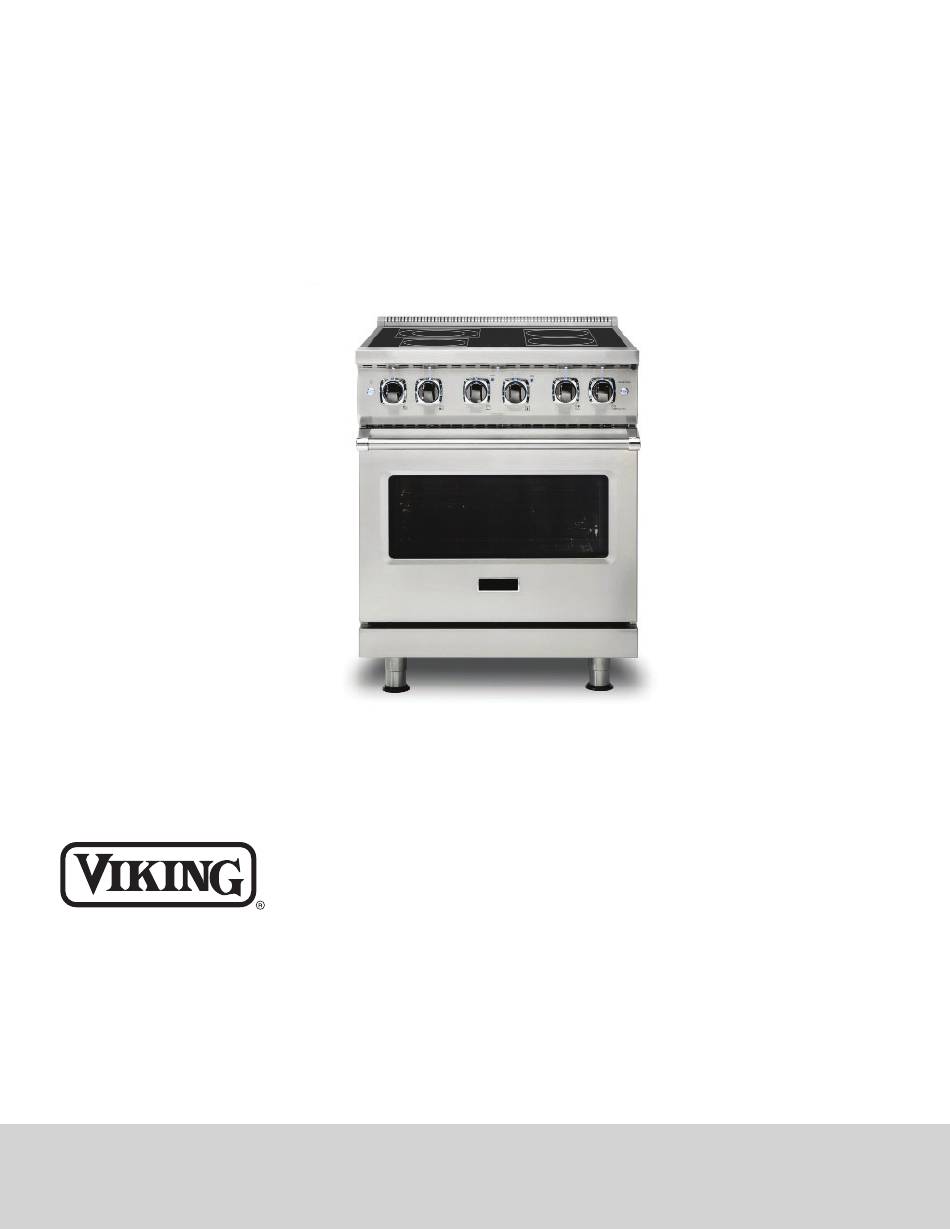

- Page 1 Install Guide 5 Series Freestanding Electric & Induction Range VER5301(2)/CVER5301(2) VIR5301(2) / CVIR5301(2) VIR5362 / CVIR5362...
-
Page 2: Table Of Contents
Viking Range | 5 Series Electric & Induction Range Table of Contents Warnings & Important Safety Instructions _________________________________________ 2 Specifi cations _____________________________________________________________ 4 Dimensions _______________________________________________________________ 5 Clearance Dimensions (Proximity to Cabinet _______________________________________ 6 Clearance Dimensions (Wood/Composite Overlay ___________________________________7 Electrical Requirements ______________________________________________________ 8... -
Page 3: Important - Please Read And Follow
Viking Range | 5 Series Electric & Induction Range IMPORTANT – Please Read and Follow! • DO NOT remove permanently affi xed labels, warnings, or plates from product. This may void the warranty. • Please observe all local and national codes and ordinances. -
Page 4: Specifi Cations
Viking Range | 5 Series Electric & Induction Range Specifi cations VER Electric Range Description 30” W. - 76 cm Wide Overall width 29-7/8” (76.0cm) Overall height To top of glass frame 35-7/8” (91.1 cm) min. to 37” (94.0 cm) max. -
Page 5: Dimensions
Viking Range | 5 Series Electric & Induction Range Dimensions " [37.34mm] " [579.05mm] " [712.30mm] " [90.37mm] 24" [609.6mm] High Shelf " [38.21mm] Ø2 " [55.73mm] 8" [203.2mm] 8" [203.0mm] " [4.71mm] Backguard 2" [51.04mm] " [31.75mm] 1" [25.40mm] "... -
Page 6: Burn Hazard
Viking Range | 5 Series Electric & Induction Range Cutout / Clearance Dimensions WARNING CAUTION To prevent possible damage to cabinets and BURN HAZARD cabinet fi nishes, use only materials and fi nishes that The use of cabinets for storage above the appliance will not discolor or delaminate and will withstand may result in potential burn hazard. -
Page 7: Clearance Dimensions
Viking Range | 5 Series Electric & Induction Range Clearance Dimensions - (Wood/Composite Overlay) The bottom of a standard hood should be 30” (76.2 cm) min. to 36” (91.4 cm) max. above the countertop. / C o This would typically result in the... -
Page 8: Electrical Requirements
• The required use of a GFI is normally related to the location of a receptacle with respect to any signifi cant sources of water or moisture. Viking Range, LLC will NOT warranty any problems resulting from GFI outlets which are not installed properly or do not meet the requirements below. -
Page 9: General Information
Viking Range | 5 Series Electric & Induction Range General Information READ AND FOLLOW ALL WARNING AND CAUTION INFORMATION WHEN INSTALLING THIS APPLIANCE • All openings in the wall behind the appliance and in the fl oor under the appliance must be sealed. -
Page 10: Installation
Viking Range | 5 Series Electric & Induction Range Installation CAUTION Door Removal To avoid risk of personal injury or product damages, DO NOT use the handle or oven door to lift the oven. Remove door before installation to ensure that it is not used to lift the unit. -
Page 11: Electrical Connection (3-Wire)
Viking Range | 5 Series Electric & Induction Range Electrical Connection (3-wire) WARNING ELECTRICAL GROUNDING INSTRUCTIONS To avoid risk of electrical shock, personal injury or death; verify your appliance has been properly grounded in accordance with local codes or in absence of codes, with the National Electrical Code (NEC). ANSI/NFPA- 70 –... -
Page 12: Electrical Connection (4-Wire)
Viking Range | 5 Series Electric & Induction Range Electrical Connection (4-wire) WARNING ELECTRICAL GROUNDING INSTRUCTIONS To avoid risk of electrical shock, personal injury or death; verify your appliance has been properly grounded in accordance with local codes or in absence of codes, with the National Electrical Code (NEC). ANSI/NFPA- 70 –... -
Page 13: Leveling/Adjustments/Alignment
Viking Range | 5 Series Electric & Induction Range Leveling/Adjustment/Alignment For uneven or sloped fl oors, level Move unit into opening Measure the four corners in cutout unit with metal shims only, as the area to verify if fl ooring is level. -
Page 14: Anti-Tip Device Installation
Viking Range | 5 Series Electric & Induction Range Anti-tip Device Installation WARNING TIPPING HAZARD • THIS RANGE CAN TIP. • A CHILD OR ADULT CAN TIP THE RANGE AND BE KILLED. RESULT IN DEATH OR SERIOUS BURNS TO CHILDREN •... -
Page 15: Floor Mount Anti-Tip Installation
Viking Range | 5 Series Electric & Induction Range Floor Mount Anti-tip Installation Dim A from Rear Wall 3-5/8” Without Standoff s (9.2 cm) Dim A from Rear Wall 6-5/8” With Standoff s (16.8 cm) Ø Ø Ø 8 ”... -
Page 16: Final Installation
Viking Range | 5 Series Electric & Induction Range Final Installation ” ” ” 3 / 8 3 / 8 3 / 8 ( 0 . ( 0 . ( 0 . Connect electrical in shaded area. See Slide range into place. Whether using Check that unit is level side to side the “Electrical Requirements”... -
Page 17: Final Preparation
Only authorized replacement parts may be used in performing service on the appliance. All servicing should be referred to a qualifi ed technician. Contact Viking Range Corporation, 1-888-VIKING1 (845-4641), for the nearest service parts distributor in your area or write to:... - Page 18 Viking Range | 5 Series Electric & Induction Range...
- Page 19 Viking Range | 5 Series Electric & Induction Range...
- Page 20 Viking Range, LLC 111 Front Street Greenwood, Mississippi 38930 USA (662) 455-1200 For product information, call 1-888-(845-4641) or visit our web site at vikingrange.com. 073521-000C (050124)
