TP-Link TL-SG1005P-PD Installation Manual

Installation Guide
5-Port Gigabit Desktop Switch
© 2023 TP-Link 7106510439 REV1.0.1
Switches Explanation
Note: The numbers in brackets indicate the ports where the feature takes effect. For example, when Extend (Port 1-2) is toggled to On, the Extend mode will be enabled for ports 1-2.
Extend
Off: The corresponding ports run at 10/100/1000 Mbps and support PoE power supply up to 100 m
away.
On: The corresponding ports run at 10 Mbps and support PoE power supply up to 250 m away.

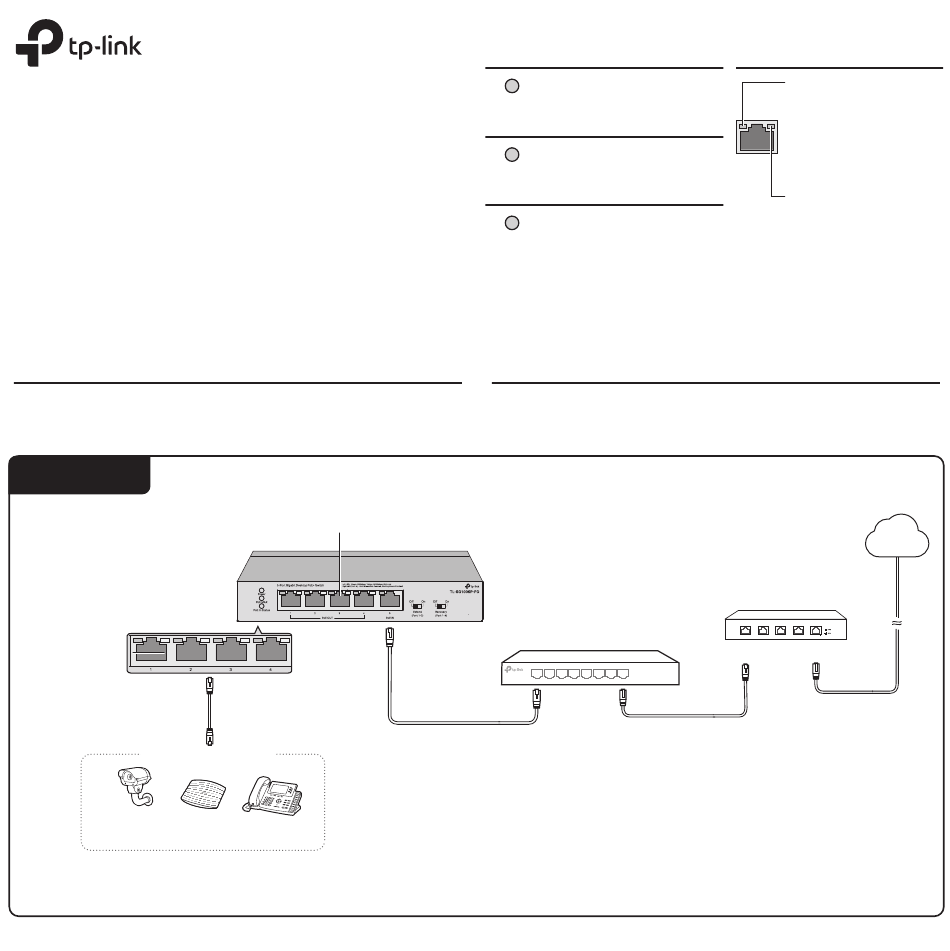

Connection
PoE OUT (1-4)
Powered Device (PD)
IP Camera
Ethernet Ports (1-5)
Note:
AP IP Phone
1. TL-SG1005P-PD does not support DC or AC power input. A PoE Power Sourcing Equipment (PSE)
2. The PoE OUT ports can also be connected to non-PoE devices, but only transmit data.
LED Explanation
Power
On: Power on
Off: Power off
Power
PoE MAX
On: The remaining PoE power is ≤ 7 W
Off: The remaining PoE power is > 7 W
PoE Max
PoE in Status
On (Green): Powered by 802.3bt (type 4)
On (Yellow):
PoE in Status
Off: Powered by 802.3af/at
Recovery
Off: The PoE Auto Recovery function is disabled.
On: The switch will constantly detect the working status of a PoE powered device (PD). When the
switch finds that the PD works abnormally, the switch will reboot it.
(e.g. PoE Switch, PoE Injector)
needs to be connected to the PoE IN port to provide power for TL-SG1005P-PD.
Link/Act and PoE Status
Powered by 802.3bt (type 3)
PSE
LAN Port
On (Green): Connected to a
1000 Mbps device
On (Yellow): Connected to a
10/100 Mbps device
Flashing: Transmitting/receiving
data
Off: No device is connected to
the corresponding port.
On: Providing PoE power
Flashing: PoE fault/Short-circuit
Off: Not providing PoE power
Internet
Router
WAN Port
