Page 1: User Guide
User Guide TL-SG1005D TL-SG1008D 5/8-Port Gigabit Desktop Switch Rev2.0.1 7106503323... - Page 2 No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2010 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved. http://www.tp-link.com...
-
Page 3: Fcc Statement
FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 4: Ce Mark Warning
1） This device may not cause harmful interference. 2） This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. -
Page 5: Package Contents
Package Contents The following items should be found in your package: One TL-SG1005D/TL-SG1008D Switch One Power Adapter This User Guide Note: Make sure that the package contains the above items. If any of the listed items are damaged or missing, please contact with your distributor. -
Page 6: Chapter 1 Introduction Of The Product
Chapter 1 Introduction of the Product Thank you for choosing the TL-SG1005D/TL-SG1008D 5/8-port Gigabit Desktop Switch. 1.1 Overview of the Product Powered by the Gigabit Ethernet Technology, TL-SG1005D/ TL-SG1008D Gigabit Desktop Switch provides the seamless network connection, which can speed up your old network to 1000Mbps. -
Page 7: Features
quickly detect and correct problems on the network. The TL-SG1005D/TL-SG1008D switch adopts Green Ethernet technology, supports power saving features to help make your network environmentally friendly without compromising performance. The switch automatically powers down the ports that are idle, budgets power output for different Ethernet cable lengths. -
Page 8: Chapter 2 Identifying External Components

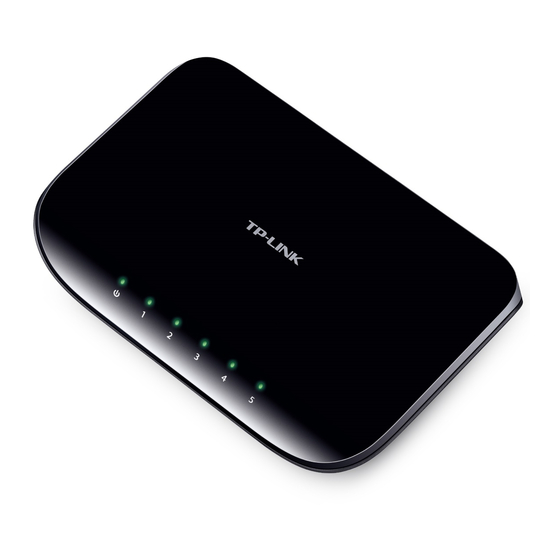

Chapter 2 Identifying External Components This Chapter describes the front panel and rear panel of the Switch. 2.1 Front Panel Figure 2-1 TL-SG1008D Switch Front Panel The Switch’s LEDs are located on the front panel: Power LED: This indicator will light up when the Switch powers up. -
Page 9: Power On
The following parts are located on the rear panel. POWER: The POWER socket is where you will connect the power adapter. Please use the power adapter provided with this TL-SG1008D Switch. Port (1-8): The TL-SG1008D Switch is equipped with 8 10/100/1000Mbps Auto-Sensing RJ45 ports where you will connect your network devices. - Page 10 Name Time Status Indication Power All the time Power on second second LEDs No device connected to the (port corresponding port. 1-8) second~ There is a 10/100/1000Mbps device connected corresponding port. Note: If the LED indicators don’t respond as described above, please check the power supply and its connection.
-
Page 11: Appendix A: Specifications
Appendix A: Specifications General Standards IEEE802.3, IEEE802.3u, IEEE802.3ab Topology Star Protocol CSMA/CD Ethernet: 10Mbps (Half Duplex), 20Mbps (Full Duplex) Fast Ethernet: 100Mbps (Half Duplex), Data Transfer Rate 200Mbps (Full Duplex) Gigabit Ethernet: 2000Mbps (Full Duplex) 10Base-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω... -
Page 12: Appendix B: Troubleshooting
10Base-T: 14880pps/Port Frame Forward Rate 100Base-Tx: 148800pps/Port 1000Base-T: 1488000pps/Port Environmental and Physical Operating Temperature 0 ~40℃ (32 ~104℉) Storage Temperature -40 ~70℃ (-40 ~158℉) Operating Humidity 10%~90% non-condensing Storage Humidity 5%~90% non-condensing Appendix B: Troubleshooting 1. The Power LED is not lit Check to see if the AC power cord is connected to the Switch properly, and make sure the power source is ON.
