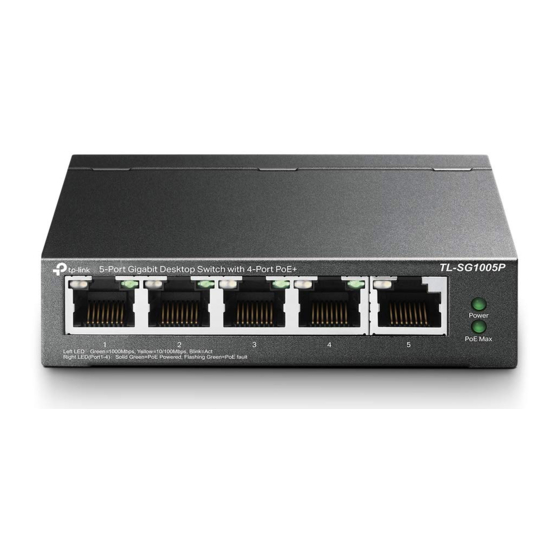

TP-Link TL-SG1005P Installation Manual

Installation Guide
5/16-Port Gigabit Desktop PoE Switch
Switches Explanation
Note: The numbers in brackets indicate the ports where the feature takes effect. For example, when Extend(1-4) is toggled to On, the Extend mode will be enabled for ports 1-4.
Priority
(for TL-SG116P)
Off: All the ports transmit data with the same priority.
On: The corresponding ports transmit data with a higher priority than other ports. When congestion
occurs, packets which are transmitted by the ports with a higher priority occupy the whole bandwidth.
Extend
(for TL-SG116P)
Off: The corresponding ports run at 10/100/1000 Mbps and support PoE power supply up to 100 m away.
On: The corresponding ports run at 10 Mbps and support PoE power supply up to 250 m away.
Note: For simplicity, we will take TL-SG1005P for example throughout this Guide.

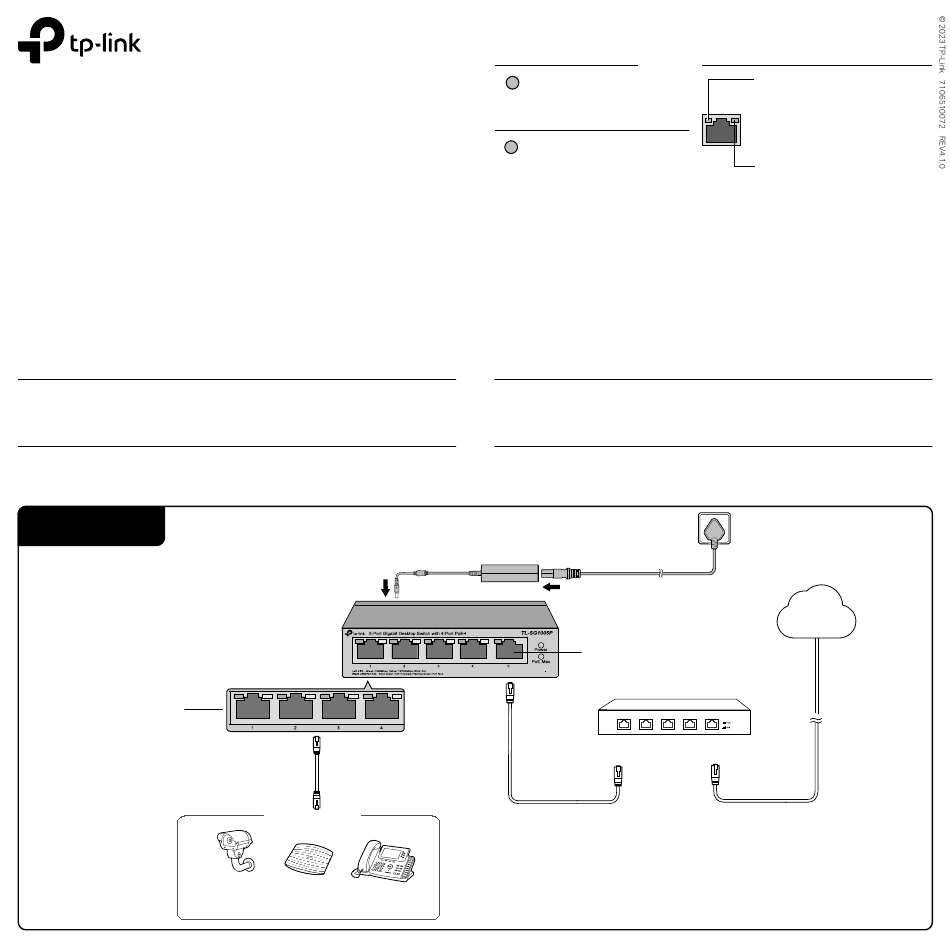

Connection
PoE Ports (1-4)
PoE Devices
IP Camera AP IP Phone
LED Explanation
Power
On: Power on
Off: Power off
Power
PoE MAX
TL-SG1005LP
On: 33 W ≤ Total power supply < 40 W
PoE Max
Flashing: Total power supply ≥ 40 W
Off: Total power supply < 33 W
TL-SG1005P
On: 58 W ≤ Total power supply < 65 W
Flashing: Total power supply ≥ 65 W
Off: Total power supply < 58W
TL-SG116P
On: Total power supply ≥ 113 W
Flashing: Total power supply ≥ 113 W and lasts
for more than 2 minutes
Off: Total power supply < 113W
Isolation
(for TL-SG116P)
Off: Ports can transmit data with each other.
On: The corresponding ports cannot transmit data with other downlink ports. They can transmit data
only with the uplink ports (ports 15-16 of TL-SG116P).
Recovery
(for TL-SG116P)
Off: The PoE Auto Recovery function is disabled.
On: The switch will constantly detect the working status of a PoE powered device (PD). When the switch
finds that the PD works abnormally, the switch will reboot it.
DC Power Adapter
Ethernet Ports (1-5)
LAN Port
Note:
1. PoE ports can also connect to non-PoE devices, but only transmit data.
2. TL-SG1005LP can supply up to 30 W for each PoE port and 40 W for all PoE ports.
3. TL-SG1005P can supply up to 30 W for each PoE port and 65 W for all PoE ports.
4. TL-SG116P can supply up to 30 W for each PoE port and 120 W for all PoE ports.
Link/Act and PoE Status
On (Green): Connected to a 1000 Mbps
device
On (Yellow): Connected to a 10/100
Mbps device
Flashing: Transmitting/receiving data
Off: No device is connected to the
corresponding port.
On: Providing PoE power
Flashing: Current-overload/Short-circuit
Off: Not providing PoE power
AC Power Cord
Internet
Router
WAN Port
