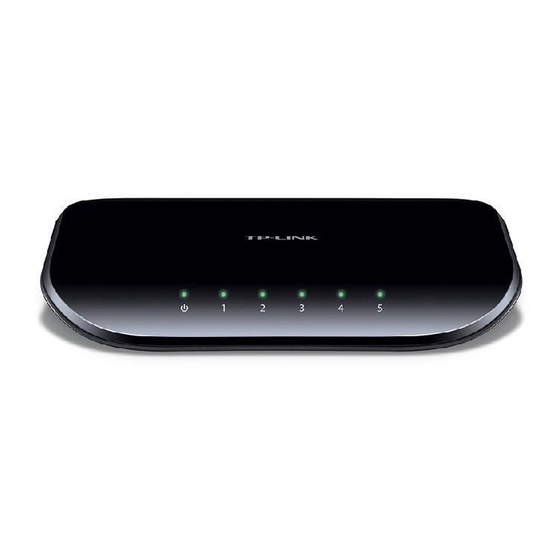

TP-Link TL-SG1005D Installation Manual
5/8-port gigabit desktop switch
Hide thumbs
Also See for TL-SG1005D:
- Quick start manual ,
- User manual (2 pages) ,
- Installation manual (2 pages)
Advertisement
Quick Links
Installation Guide
5/8-Port Gigabit Desktop Switch
TL-SG1005D/TL-SG1008D
Note:
For simplicity, we will take TL-SG1005D for example throughout this Guide.
Connection
Ethernet Ports (1-5)
WAN Port
Router
LAN Port
LED Explanation
Power
Link/Act
TL-SG1005D
5
4
3
2
1
PC
On:
Power on
Off:
Power off
On:
Link present but no activity
Flashing:
Transmitting/receiving data
Off:
No link
POWER
Power Cord
PC
