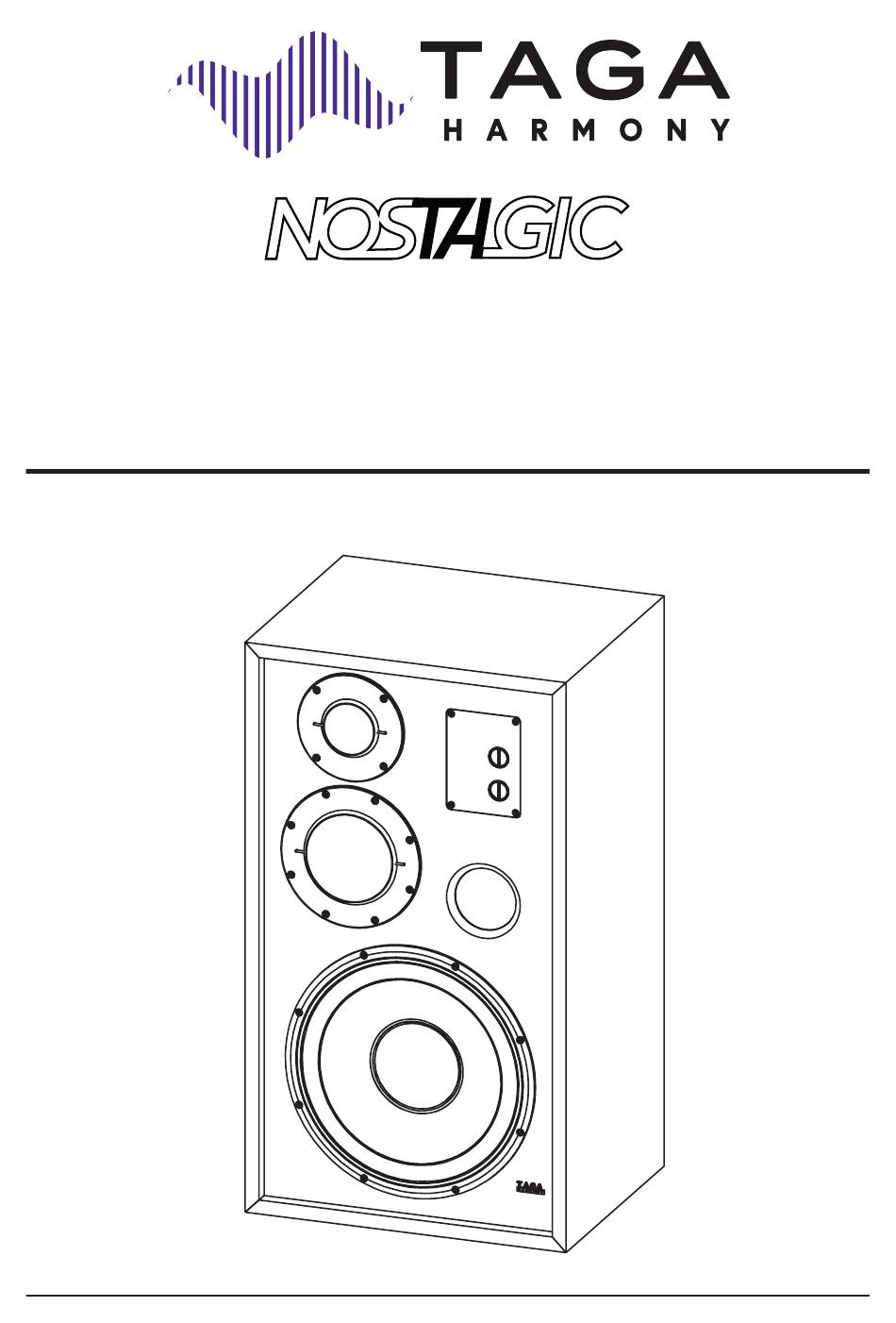

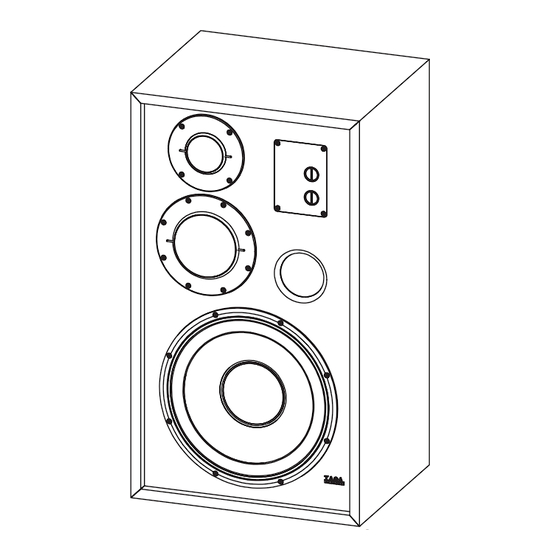

- Page 1 NOSTALGIC TH-15, TH-12, TH-10, TH-8 HI-FI MONITOR SPEAKERS Instruction Manual Edition 05-2024...
-
Page 3: Key Features
Introduction Congratulations for purchasing TAGA Harmony speakers! This meticulously crafted speaker is a celebration of the golden age of audio, seamlessly blending timeless design with cutting-edge acoustic technology. The NOSTALGIC speaker pays homage to the iconic designs of yesteryear, featuring a vintage- inspired cabinet that evokes a sense of nostalgia and sophistication. - Page 4 • Dedicated Speaker Stands (only NOSTALGIC TH-15, NOSTALGIC TH-12) The NOSTALGIC TH-15 and NOSTALGIC TH-12 are provided with dedicated speaker stands, which are very heavy and ultra-rigid, providing almost perfect isolatation of speakers from the floor, increasing the transparency of sound and providing better definition and the basis for the bass.
-
Page 5: Cabinet Care
• Please do not dismantle any parts of the speakers as this may void your warranty – servicing should be done only by a qualified TAGA Harmony repair center. • During connecting the speakers make sure to power off your amplifier(receiver) or other source. - Page 6 If you notice any damages in transportation, report it immediately to your dealer. Keep the speaker carton for future use. The NOSTALGIC TH-15 and NOSTALGIC TH-12 speakers are sold with dedicated speaker stands. Note! The NOSTALGIC TH-10 and NOSTALGIC TH-8 are sold without speaker stands.
- Page 7 Note for NOSTALGIC TH-15 and NOSTALGIC TH-12! Both models differ in size, which should be considered when planning the placement of the pads to fit the speaker stand - the pads should be located within the outline of the upper frame of the speaker stand.
- Page 8 Placement Before deciding where to place the speakers, search for the best location in your room, keep in mind the following rules and base on the figure on this page as a guide: Note! Each speaker is intended for different channel. When positioning the speaker, we recommend that the Level Adjustment Panel located on the speaker front, faces outwards (not towards the second speaker) as shown in the below figure.
- Page 9 Placement • For the best results, place the speakers 150 -250 cm (5 – 8 feet) apart from each other and this distance should be around ¾ of the distance from your listening position to the front line of speakers. •...
- Page 10 You will get the best sound quality and least amount of hum by keeping the speaker cables away from other electrical wires and cables. Note! Consult your local TAGA Harmony dealer for further information about speaker cables and connection options.
- Page 11 Hooking up Speaker Cables Connecting bare speaker cables (without plugs) Speaker cables have 2 conductors. Each conductor should be connected to a separate speaker connector - mind the polarity while connecting. For each conductor: 1. Remove approximately 10 mm (3/8”) of insulation from the end of the conductor. Twist the bare wires firmly together.
-
Page 12: Final Adjustments
/NOSTALGIC TH-12 control panel shown/ Break-In TAGA Harmony speakers sound great immediately after they are taken out of the carton. Start listening to music at moderate volume levels to break in the speakers. The speakers will sound even better after approximately 3-50 hours of play. - Page 13 We strongly advise to contact a professional installer or dealer in order to install TAGA Harmony products. We recommend using high quality TAGA Harmony cables and other installation accessories. EU declaration of conformity Your product is marked with the symbol shown on the left.
- Page 14 Notes...
- Page 15 Notes...
- Page 16 Notes...
